About your monitor
│
27
NOTE: The USB ports on the monitor work only when the monitor is
turned On or in Standby mode. If you turn Off the monitor and then
turn it On, the attached peripherals may take a few seconds to resume
normal functionality.

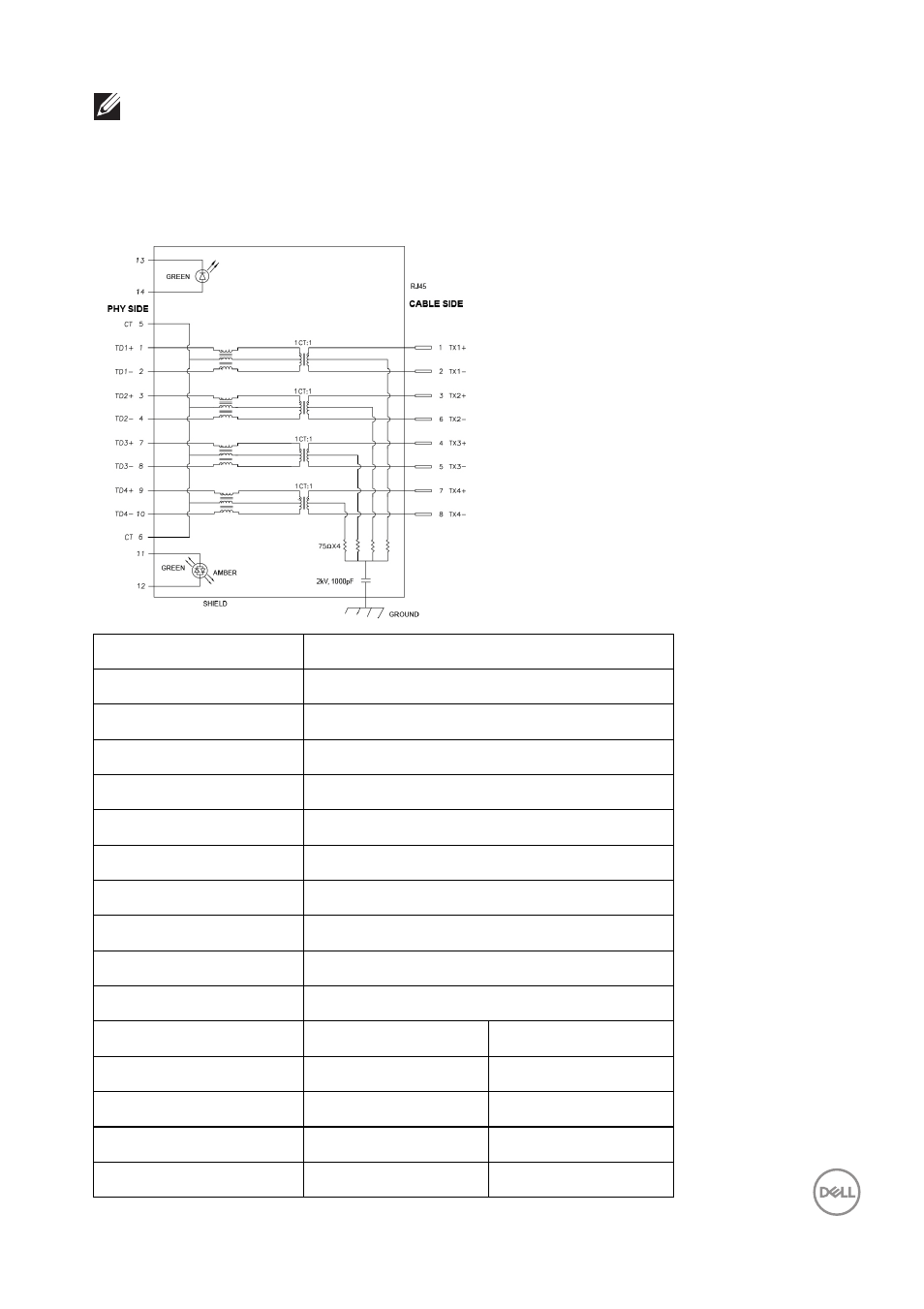

RJ45 Connector
Pin
Signal
P1
MDI0+
P2
MDI0-
P3
MDI1+
P4
MDI1-
P5
CT
P6
CT
P7
MDI2+
P8
MDI2-
P9
MDI3+
P10
MDI3-
Pin number
Orange
Green
P11
-
+
P12
+
-
P13
N/A
+
P14
N/A
-
