Page 20
20
TASCAM Model 24
2 – Names and Functions of Parts

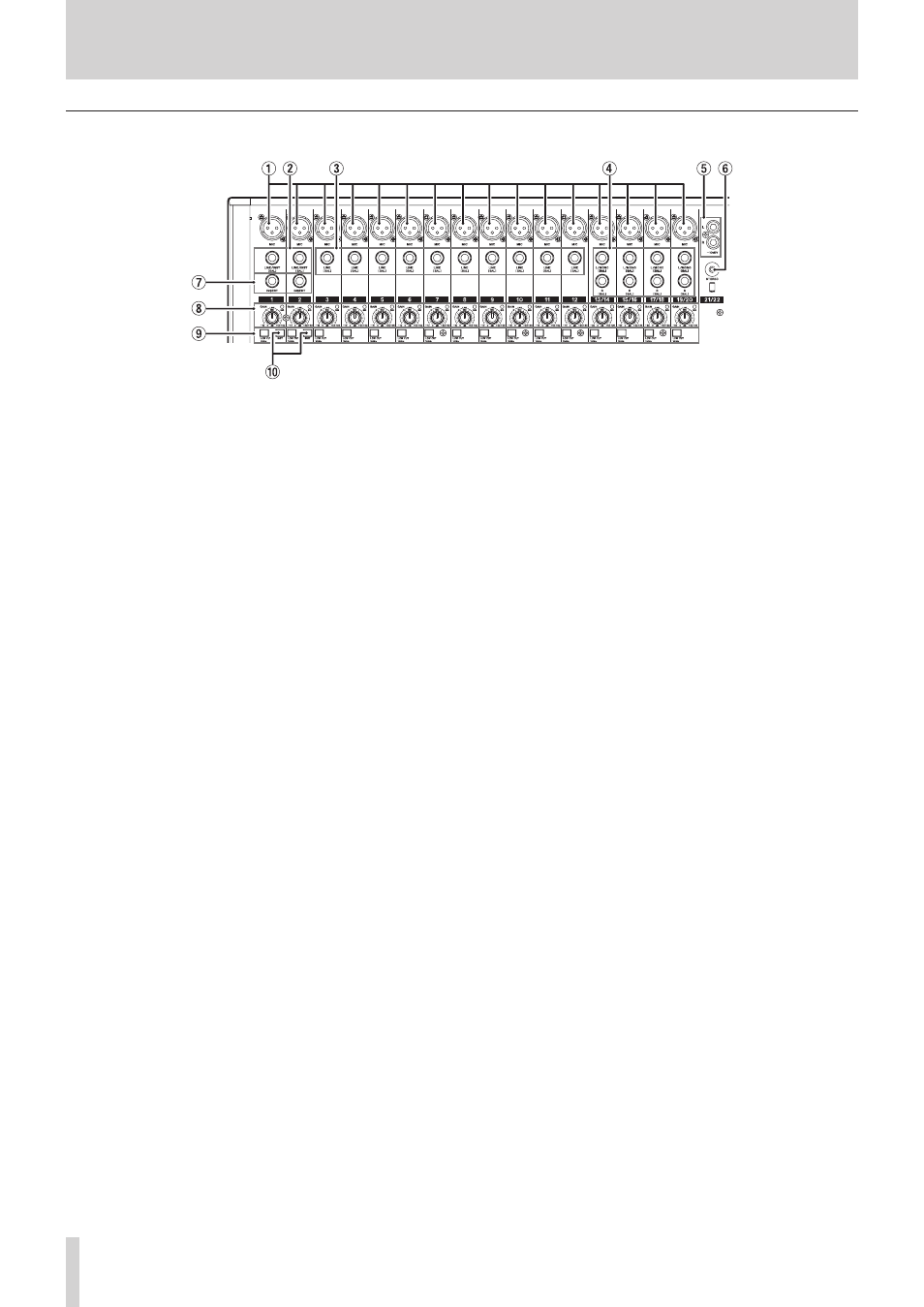

Analog input jack section
1
MIC input jacks (1-12, 13/14-19/20)
These are balanced XLR jacks for mic input.
o
XLR (1: GND, 2: HOT, 3: COLD)
2
LINE/INST (BAL) mono input jacks (1-2)
These standard TRS jacks are mono line inputs.
When directly connecting a guitar, bass or other instrument,
set the
INST
switch to on (pushed in).
o
TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
3
LINE (BAL) input jacks (3-12)
These standard TRS jacks are line inputs.
o
TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
4
L/MONO (BAL)/R (BAL) stereo input jacks (13/14-
19/20)
These standard TRS jacks are stereo line inputs.
If only the
L/MONO (BAL)
jack in a pair is connected, the
same signal was be sent to both left and right channels.
o
TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
5
−10dBV (external input) jacks (21/22, RCA pin)
These RCA pin jacks are analog line inputs.
Use RCA cables to connect CD players and similar devices to
these jacks.
6
STEREO input jack (21/22, stereo mini)
This stereo mini jack is a line input jack.
Use this to connect with the line output jack of a tablet or
other external device.
7
INSERT jacks (1-2, standard)
Use these standard TRS jacks to connect external devices
(effects).
o
TRS (Tip: SEND, Ring: RETURN, Sleeve: GND)
8
GAIN knobs and SIG indicators (1-12, 13/14-19/20)
Use the GAIN knobs to adjust the input levels of each chan-
nel.
its
SIG
indicator will light green when a signal is input (−
56dB or higher).
If a
SIG
indicator stays lit red continuously, lower the
GAIN
knob.
9
LOW CUT switches (1-12, 13/14-19/20)
Turn this switch on (pushed in) to enable low cut filters that
cut noise and other sounds at low frequencies.
0
INST switches (1-2)
Set according to the
LINE/INST (BAL)
input jack input sourc-
es.
Turn the
INST
switch on (pushed in) when connecting an
guitar, bass or other equipment with high output impedance.
Turn the
INST
switch off (not pushed in) when connecting
electronic instruments, audio devices, mics and other equip-
ment.
