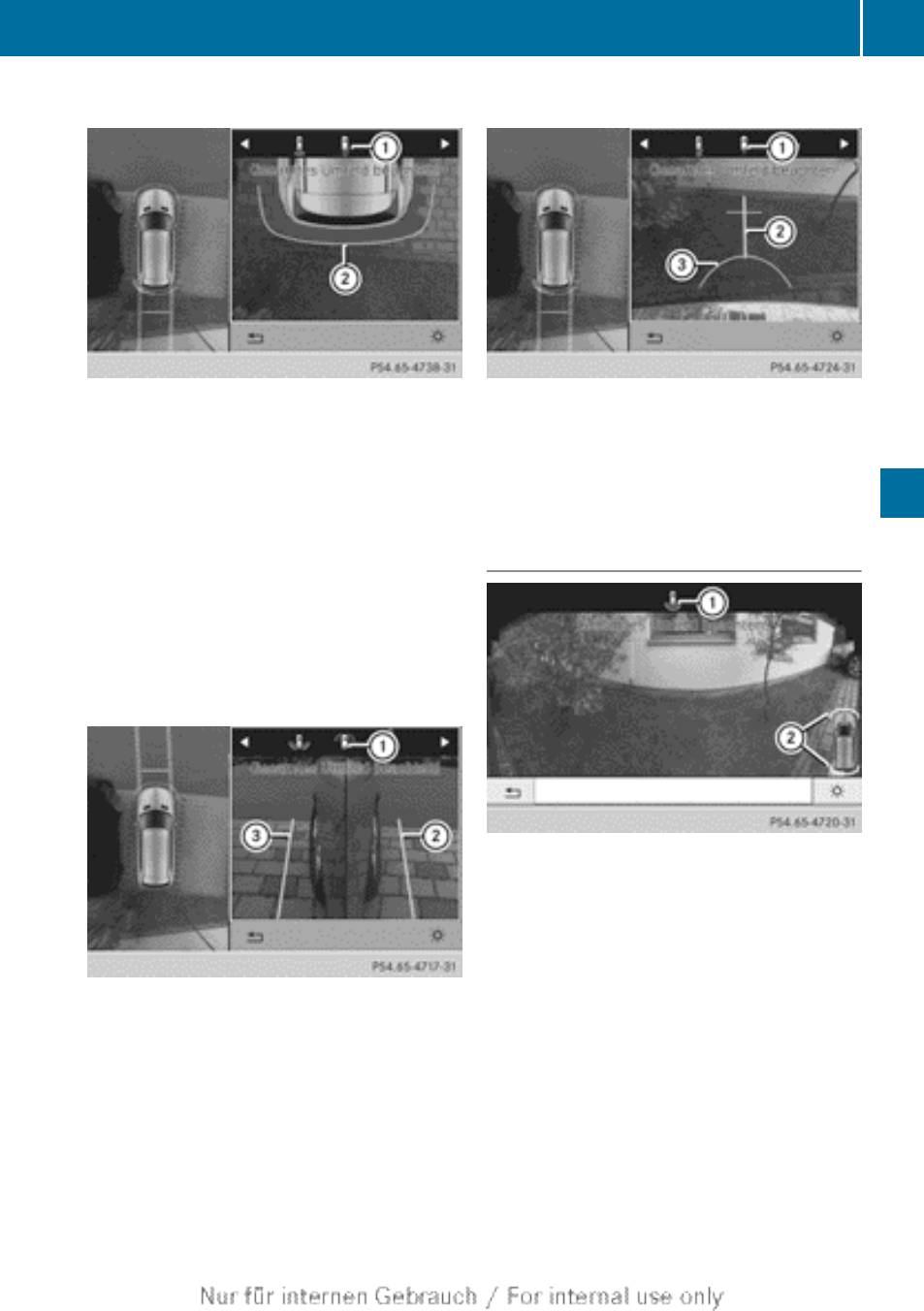

Top view and enlarged rear view
:
Symbol for the split screen setting with
top view and rear view camera image
enlarged
;
Red guide line at a distance of
approximately 12 in (0.30 m) from the
rear of the vehicle
This view assists you in estimating the
distance to the vehicle behind you.
i This setting can also be selected as an
enlarged front view.
Top view with picture from the mirror
camera
:
Symbol for the top view and forward-
facing mirror camera setting
;
Yellow guide line for the vehicle width
including the exterior mirrors (right side
of vehicle)
=
Yellow guide line for the vehicle width
including the exterior mirrors (left side of
vehicle)
Top view with trailer view
:
Symbol for the trailer view setting
;
Trailer drawbar marker assistant
=
Red guide line at a distance of
approximately 12 in (0.30 m) from the ball
coupling
Display with the PARKTRONIC display
Example: full screen mode with PARKTRONIC
display
:
Symbol for the full screen setting with rear
view camera image
If the vehicle is equipped with PARKTRONIC
and the function is active (
Y page 215),
warning displays ; in the COMAND display
are also active or light up accordingly.
PARKTRONIC appears:
R
in split screen view as red or yellow
brackets around the vehicle icon in the top
view, or
R
in the full screen view, on the right-hand
side at the bottom as red or yellow brackets
around the vehicle icon
