Chapter 2 - Installation
22
Adept AnyFeeder User’s Guide, Rev. B
2.3
Mechanical Installation
This section describes the mechanical installation procedure for the Adept AnyFeeder.
Preparing a Mounting Location
Before the Adept AnyFeeder can be used, it must be securely mounted in a prepared
location within the robot’s workcell.
Prepare the mounting hole pattern as shown in
pattern on the base plate so that at least 650 mm of the AnyFeeder’s base housing rests on
the base plate, as shown in

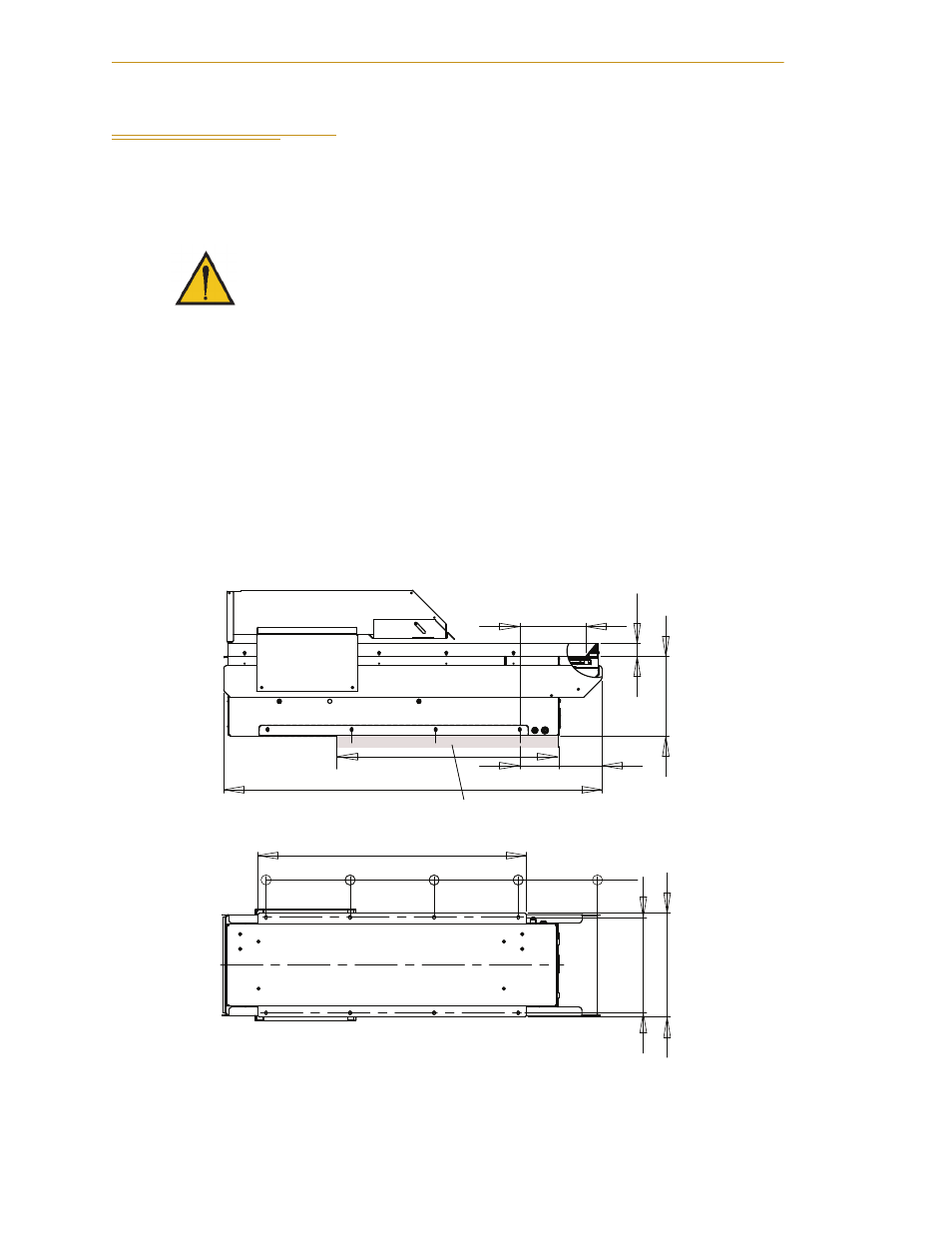

Figure 2-3. Preparing the Mounting Location
WARNING:
The Adept AnyFeeder must be bolted or clamped down
to the base plate at any time it is in operation. Due to its working
principle the Adept AnyFeeder may “walk off” the base plate during
operation if it is not properly secured to the base plate.
WARNING:
Do not connect the Adept AnyFeeder to electrical power
or compressed air before it is securely bolted or clamped down to the
base plate.
Minimum Base Plate Contact
650
1125
244.50
197
237.50
38
236
250
250
250
800
284
309
