34 Installation
(for qualified installers only)
© Travis Industries 4140922 100-01410

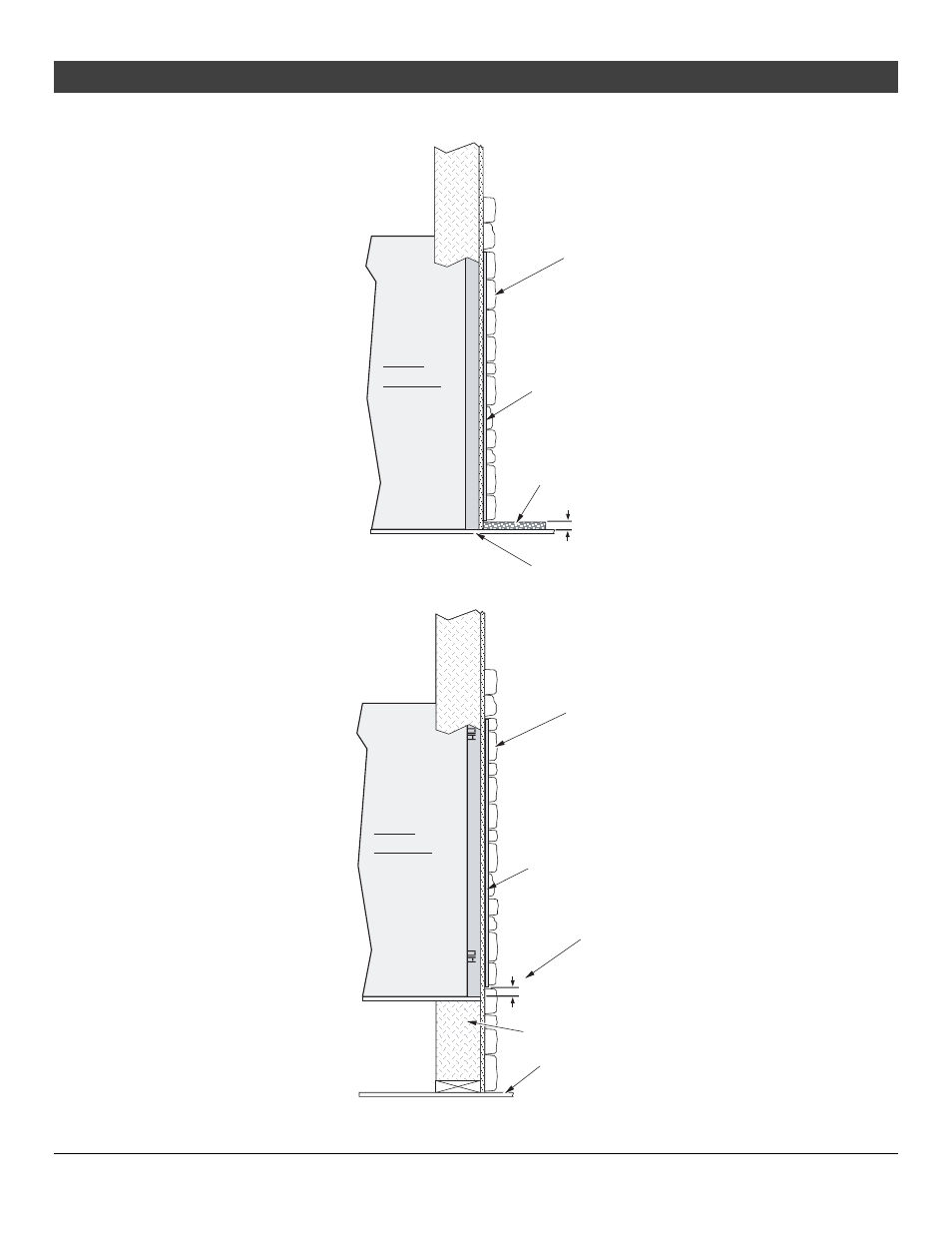

Thick Facing Installation - Side View
Masonry or other non-combustible
over 1’’ (25mm) thick.
Face (Behind Masonry)
The masonry extends 1’’ (25mm)
above the base of the fireplace.
1’’ (25mm)
Fireplace Support
Floor
Floor-Mounted Fireplace
(with Hearth)
SIDE OF
FIREPLACE
Masonry or other non-combustible
over 1’’ (25mm) thick
Face
Floor
Max. 1’’ (25mm)
Hearth (note how it extends under the face - max. 1’’
(25mm) thick). The fireplace may be raised to
accommodate thicker hearth materials.
Raised Fireplace
(with no Hearth)
SIDE OF
FIREPLACE
