BE1-50/51M Time Characteristic Curves
A-1
APPENDIX A • TIME CHARACTERISTIC CURVES
Time Characteristic Curves
Figures A-1 through A-9 illustrate the time characteristic curves that are programmed into the nonvolatile
memory of series 100 relays. Figures A-1 through A-14 illustrate the characteristic curves that are
programmed into the nonvolatile memory of series 200 relays.

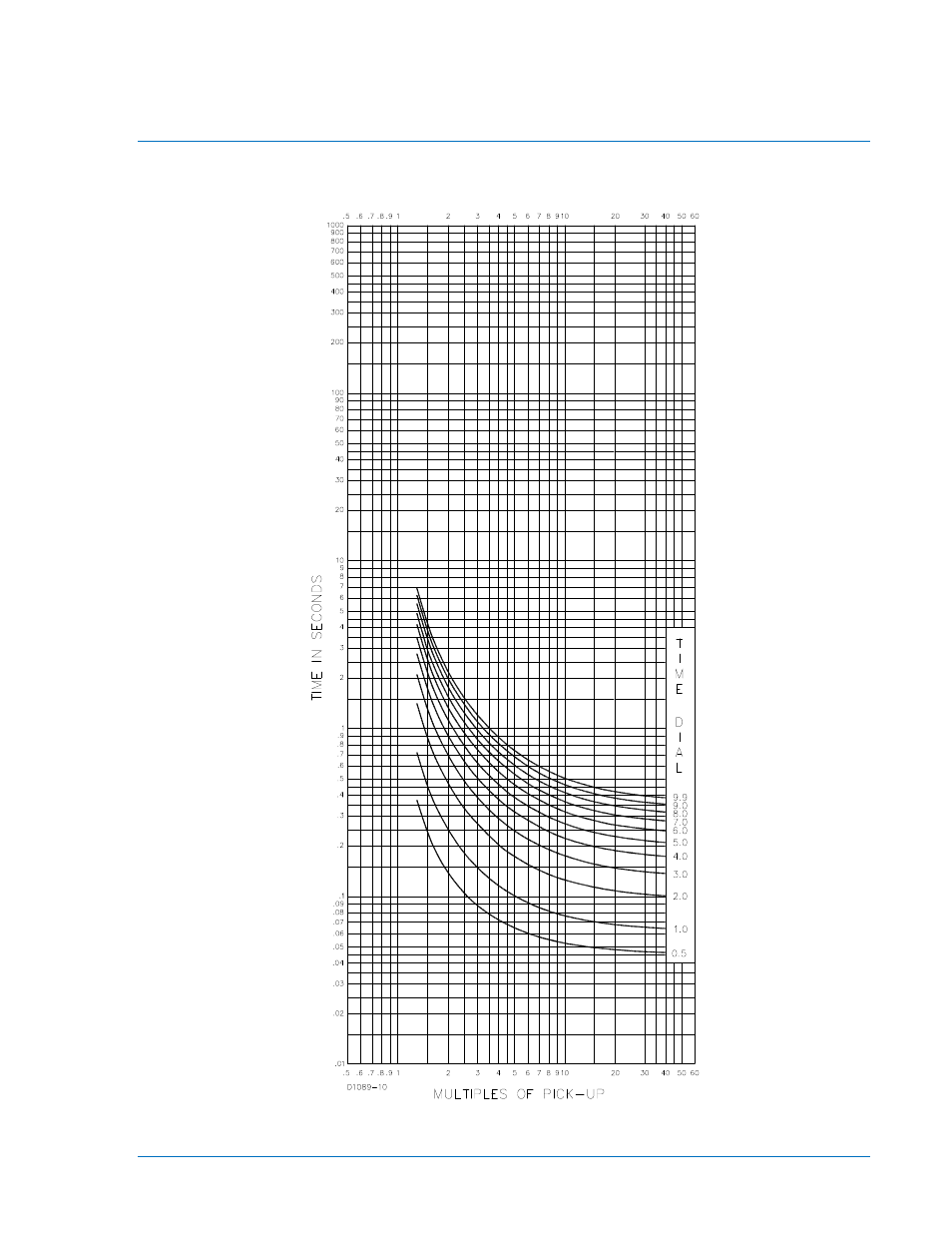

Figure A-1. Time Characteristic Curve, S-Short Inverse
(SW3-3 OFF, Similar to ABB CO-2)
