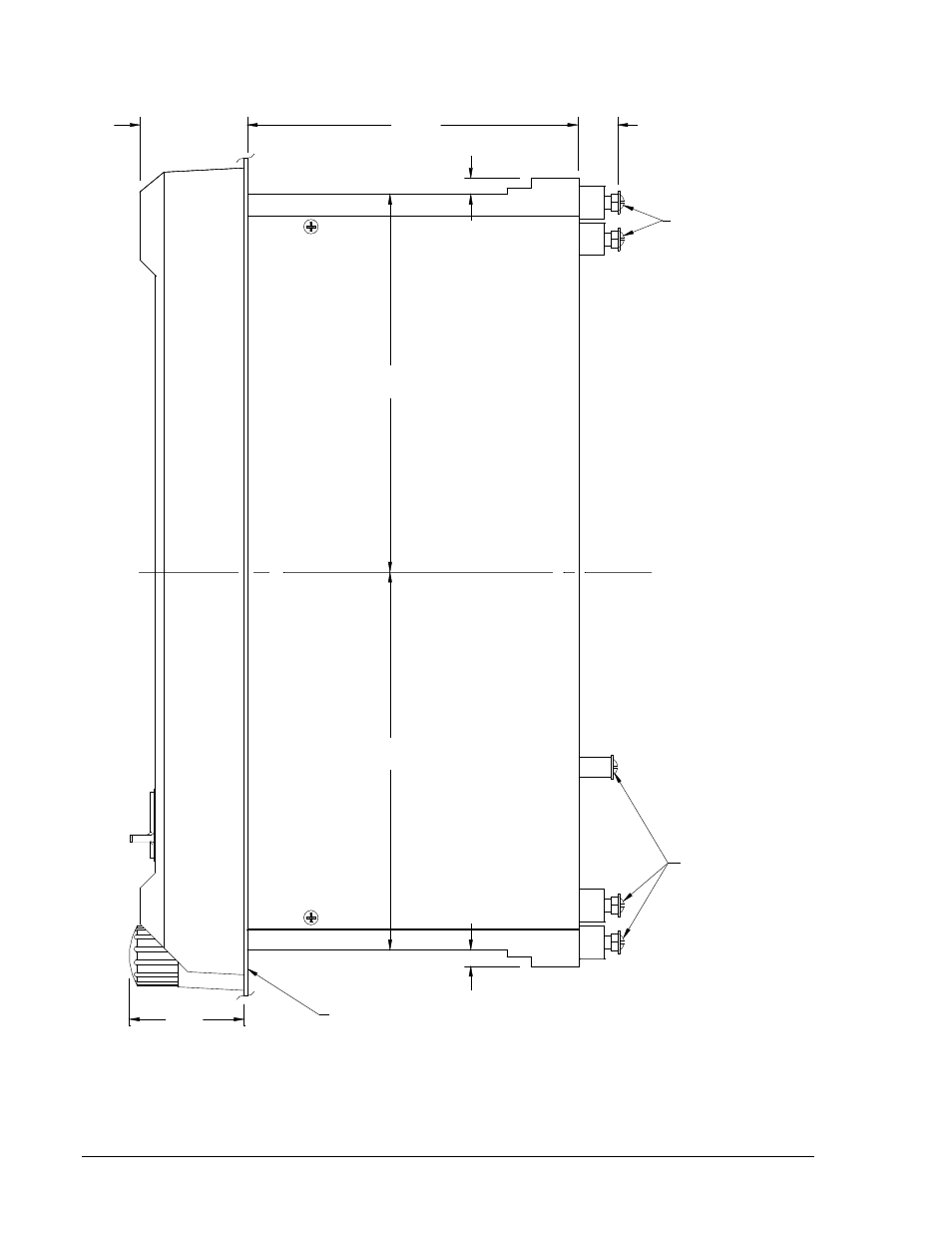

Figure 4-15. M1 Case Dimensions, Side View, Double Ended, Semi-Flush Mount
P0066-76
10-32 SCREWS
10-32 SCREWS
MOUNTING PANEL 2.195
(55.75)
.31
(7.9)
.31
(7.9)
.75
(19.1)
6.19
(157.2)
1.95
(49.53)
7.03
(178.56)
7.03
(178.56)
4-16 BE1-32R, BE1-32O/U Installation 9171100990 Rev T
