Electrical Installation 7
Section 4: Electrical Installation
CAUTION – RISK OF ELECTRIC SHOCK: Only qualified individuals should perform power routing
and termination to the system. It is the responsibility of the electrical contractors to ensure that all
electrical work meets or exceeds local and national codes. Failure to follow installation guidelines will
result in audible noise on the sound system and possible damage to internal components.
Notes:
 This product is not provided with mains disconnect. Customer shall provide disconnect at
base of sound system location that meets or exceeds local and national electrical codes.
Several disconnect switches may be required to de-energize the equipment before servicing.
 The control enclosure, located in the sound cabinet, shall not be exposed to dripping or
splashing, and no objects filled with liquid shall be placed on the control enclosure.
4.1 Power/Signal Connections
Reference Drawings:
System Riser; 1500HD .......................................................................... Drawing C-994471
System Riser; Electrical & Audio Notes ................................................. Drawing B-985713
Schematic; Control Enclosure/Sound Cabinet 1500HD ...................... Drawing B-1082533
Drawing C-994471 details power and signal connections of the Sportsound 1500HD sound
system. To gain access to internal power and signal connection points, open the far right rear
access door (Figure 12). Turn all latches a
1 /
4
turn using a flathead screwdriver (older latches
can be turned with fingers). Tilt the top of the door away from the cabinet. With the door
tilted, use the handle to lift it up and out of the doorframe.

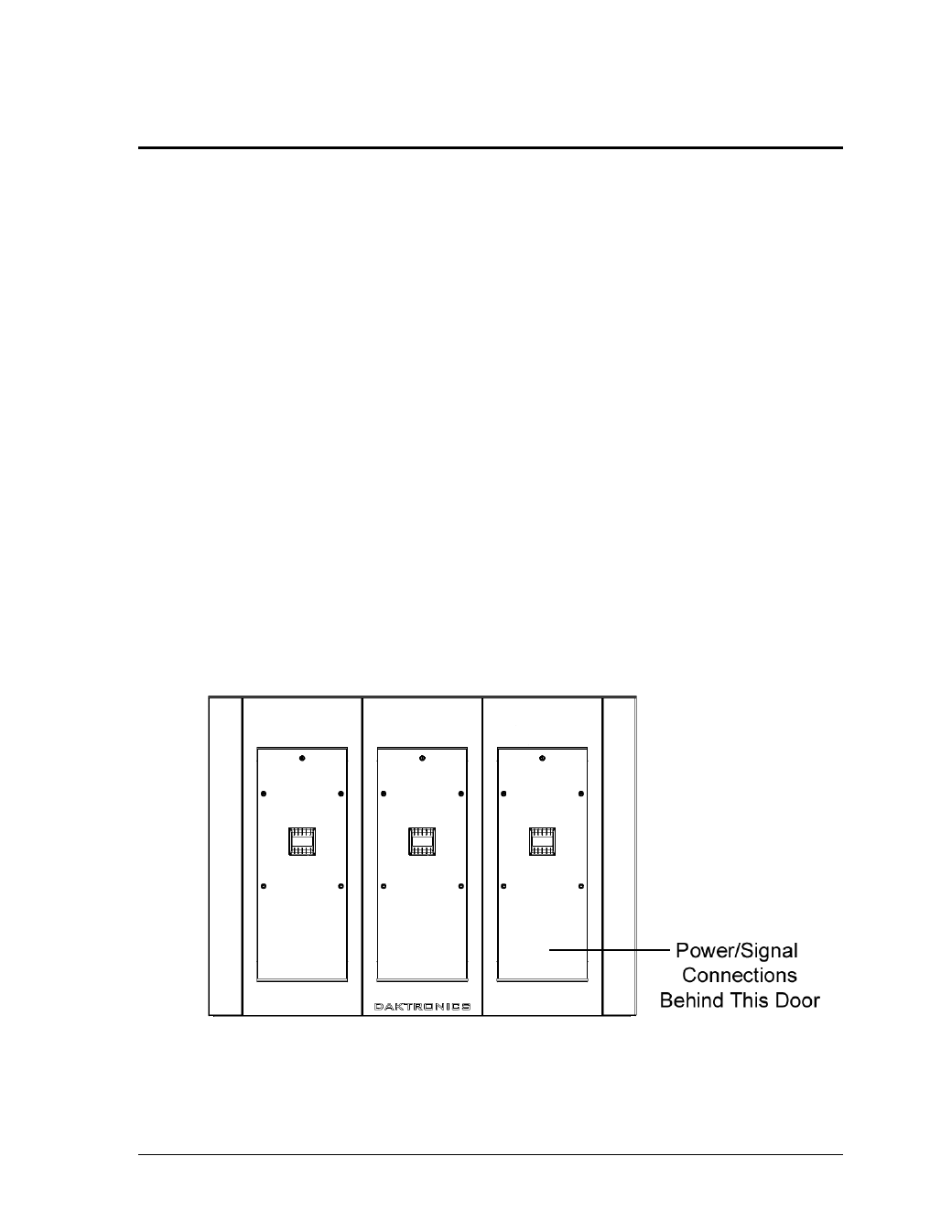

Figure 12: Sound Cabinet Access Doors, Rear View
