2 Introduction
1.2 Daktronics Nomenclature
Most components within this system carry a white label that lists the part number of the unit.
If a component is not found in the Replacement Parts List in Section 6, use the label to order
a replacement. Figure 2 illustrates a typical label. The part number is in bold.
Main Component Labels
Part Type
Part Number
Individual circuit board 0P-XXXX-XXXX
Assembly; a collection of circuit boards 0A-XXXX-XXXX
Wire or cable W-XXXX
Fuse F-XXXX
Transformer T-XXXX
Metal part M-XXX
Fabricated metal assembly 0S-XXXXXX
Specially ordered part PR-XXXXX-X
Accessory Labels
Component
Label
Termination block for power
or signal cable TBXX
Grounding point EXX
Power or signal jack JXX
Power or signal plug for the
opposite jack PXX
Following the Replacement Parts List is the Daktronics Exchange Policy and the Repair &
Return Program. Refer to these instructions if replacing or repairing any system component.
1.3 Product Safety Approval
Daktronics outdoor displays are ETL listed and tested to CSA standard for outdoor use.
Contact Daktronics with any questions regarding testing procedures.

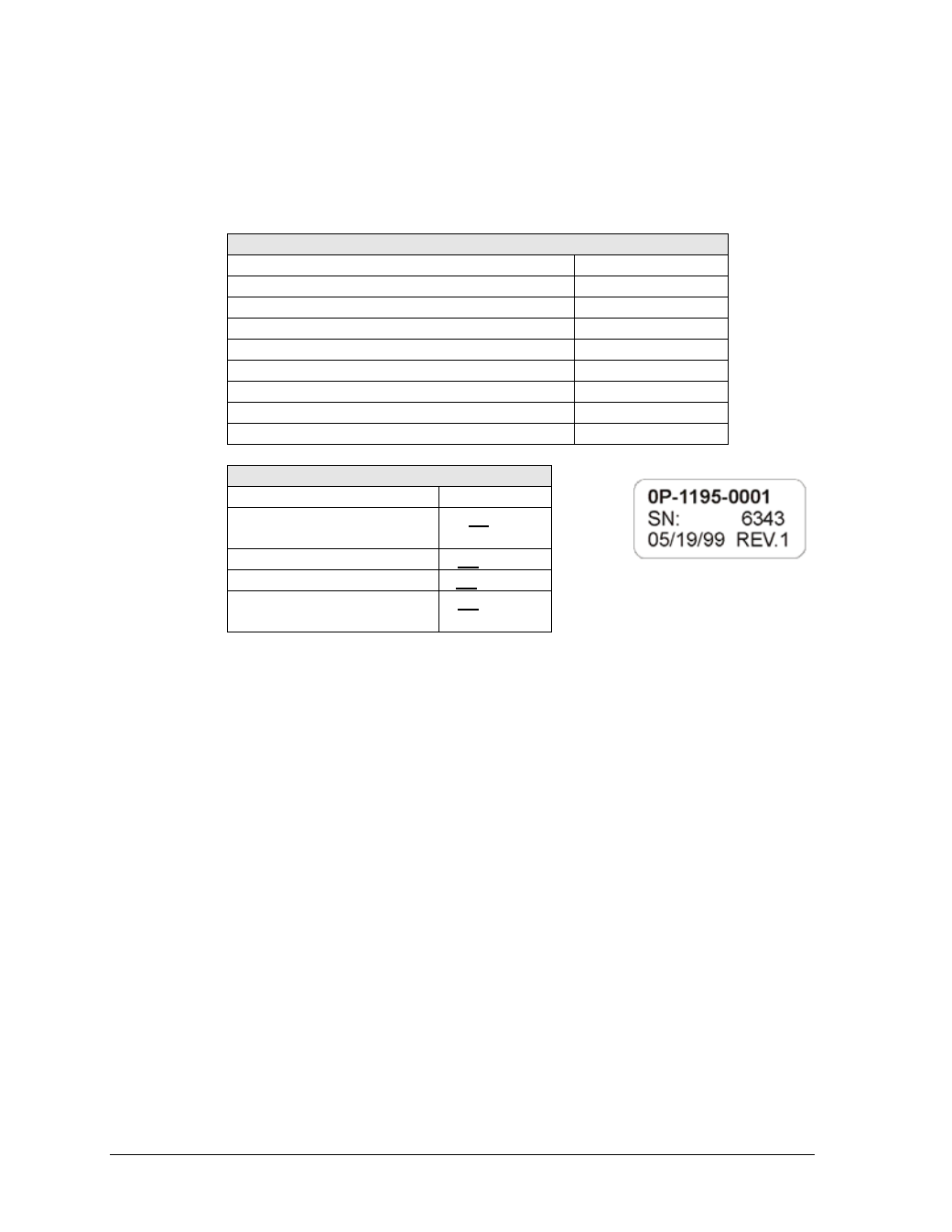

Figure 2: Typical Label
