Electrical Installation
4.3 Fiber Conversion Box Connections
Important Notes:
The fiber box shall not be exposed to dripping or splashing, and no objects filled with
liquid shall be placed on the fiber box.
The fiber box consists of Class 1 construction and shall be connected to a mains
socket outlet with a protective earth-ground connection.
The fiber box utilizes a power cord with wiring inlet as a means for disconnection
from power. This means of disconnection shall remain readily operable in all cases.
Refer to Figure 14 for external
fiber conversion box
connections and Figure 15 for
internal connections and
component locations.
Refer to Detail “A” in Drawing
C-994471 for analog backup
connection and Detail “B” for
fiber connection. Drawing A-
1095894 provides a detailed
wiring schematic.

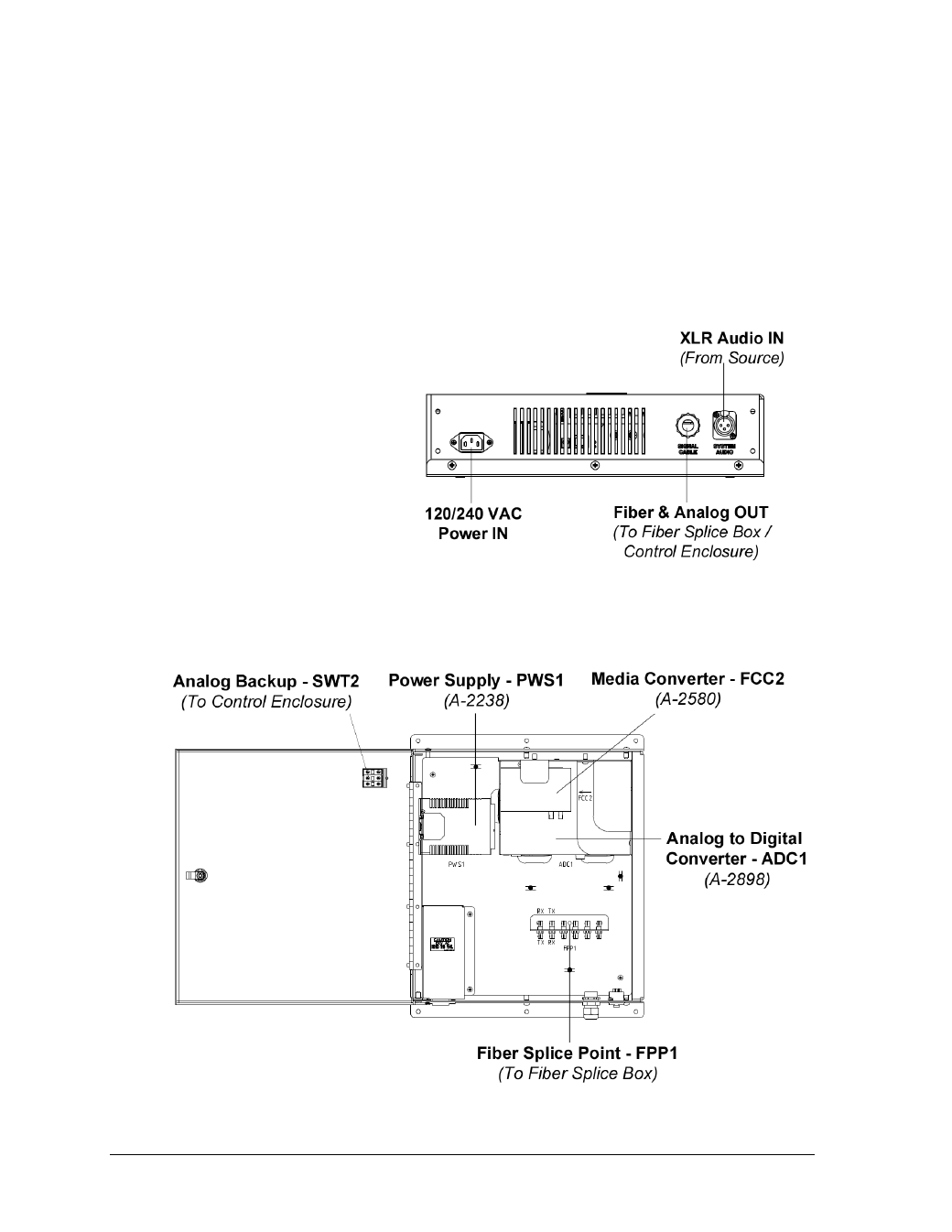

Figure 14: External Fiber Conversion Box Connections
Figure 15: Internal Fiber Conversion Box Connections & Components (Cover Open)
