8 Electrical Installation
To access the internal components of the control enclosure, first loosen the 6 screws with a
Philips head screwdriver, and then use the handle to lift the enclosure cover up and away so
the screws pass through the keyholes.
Refer to Figure 13 for component and connection locations within the sound cabinet and
control enclosure and Drawing B-1082533 in Appendix A for a detailed wiring schematic.

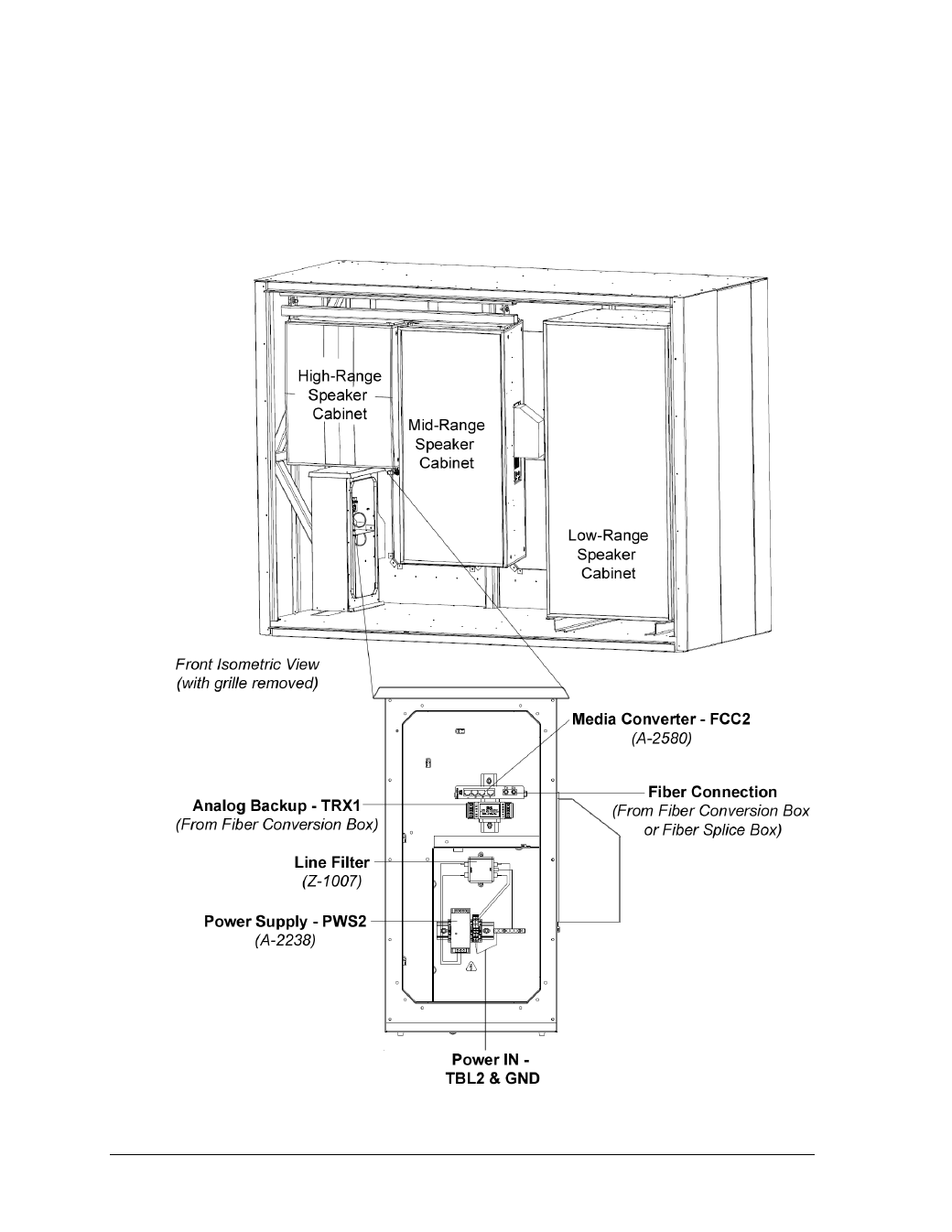

Figure 13: Sound Cabinet & Control Enclosure Components (Covers Removed)
