Maintenance & Troubleshooting
15
For more troubleshooting steps, refer to the announcer’s rack manuals listed in Section 2.4.
Indicator Lights
Sound Cabinet
There is a green LED on the bottom of the sound cabinet that indicates whether there is
power feeding the cabinet properly. The indicator stays lit when there is power; otherwise, it
will be off.
Announcer’s Rack
Refer to the troubleshooting section of a specific announcer’s rack manual for more
information about the indicator lights.
Fiber Conversion Box
Within the fiber conversion box, indicator lights on the equipment help verify proper
connection with sound cabinet.
The media converter (part # A-2580) has two LED indicators of importance, as shown in
Figure 22.
1) P1 LED will illuminate amber to indicate fiber conversion box has power.
2) Port 1 (100M) will flash green to indicate a functional connection between the fiber
conversion box and control enclosure. Each Ethernet jack also has an LED that
should illuminate green when a plug is inserted.
Refer to the specific equipment manuals in Appendix B for additional troubleshooting help.

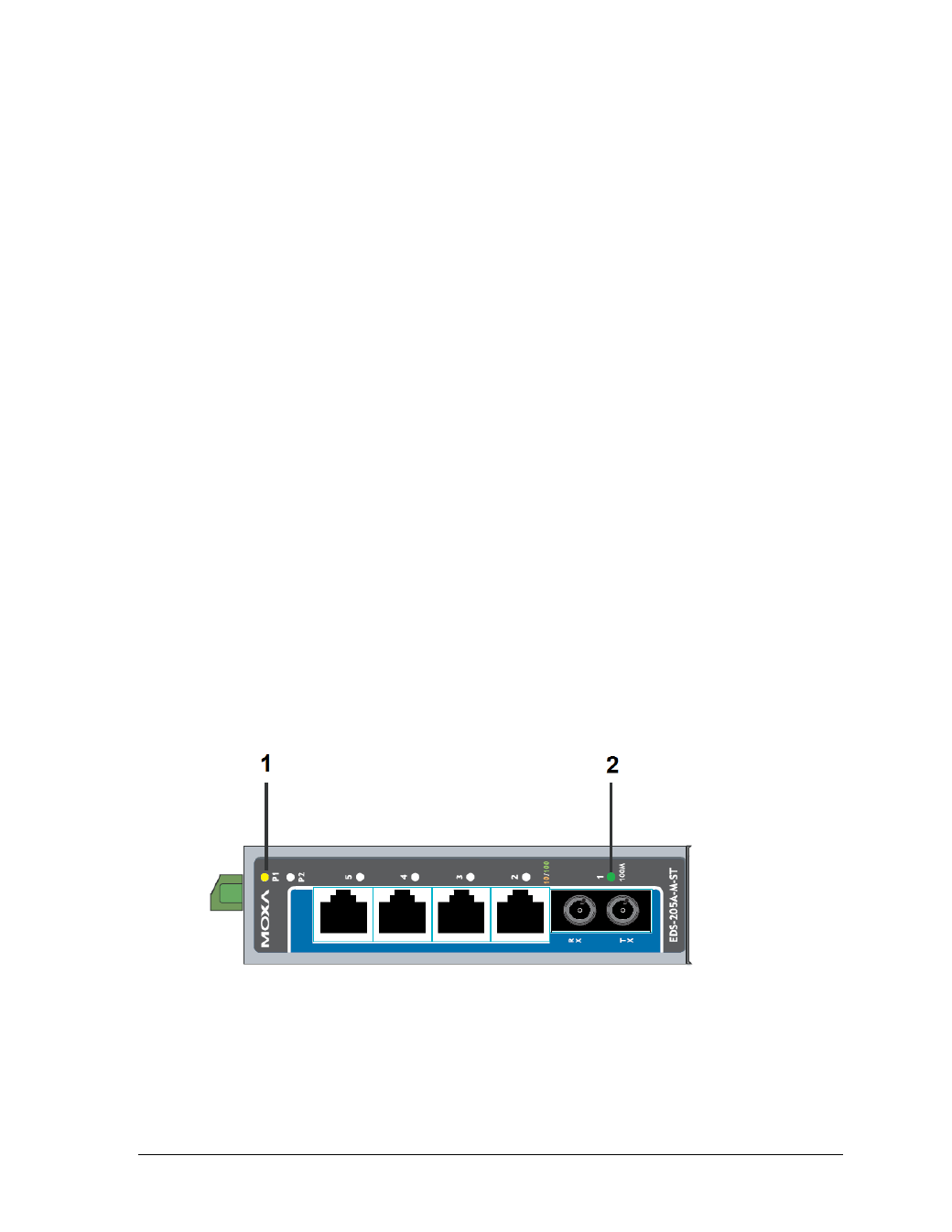

Figure 22: Media Converter LED Indicators
