- 7 -

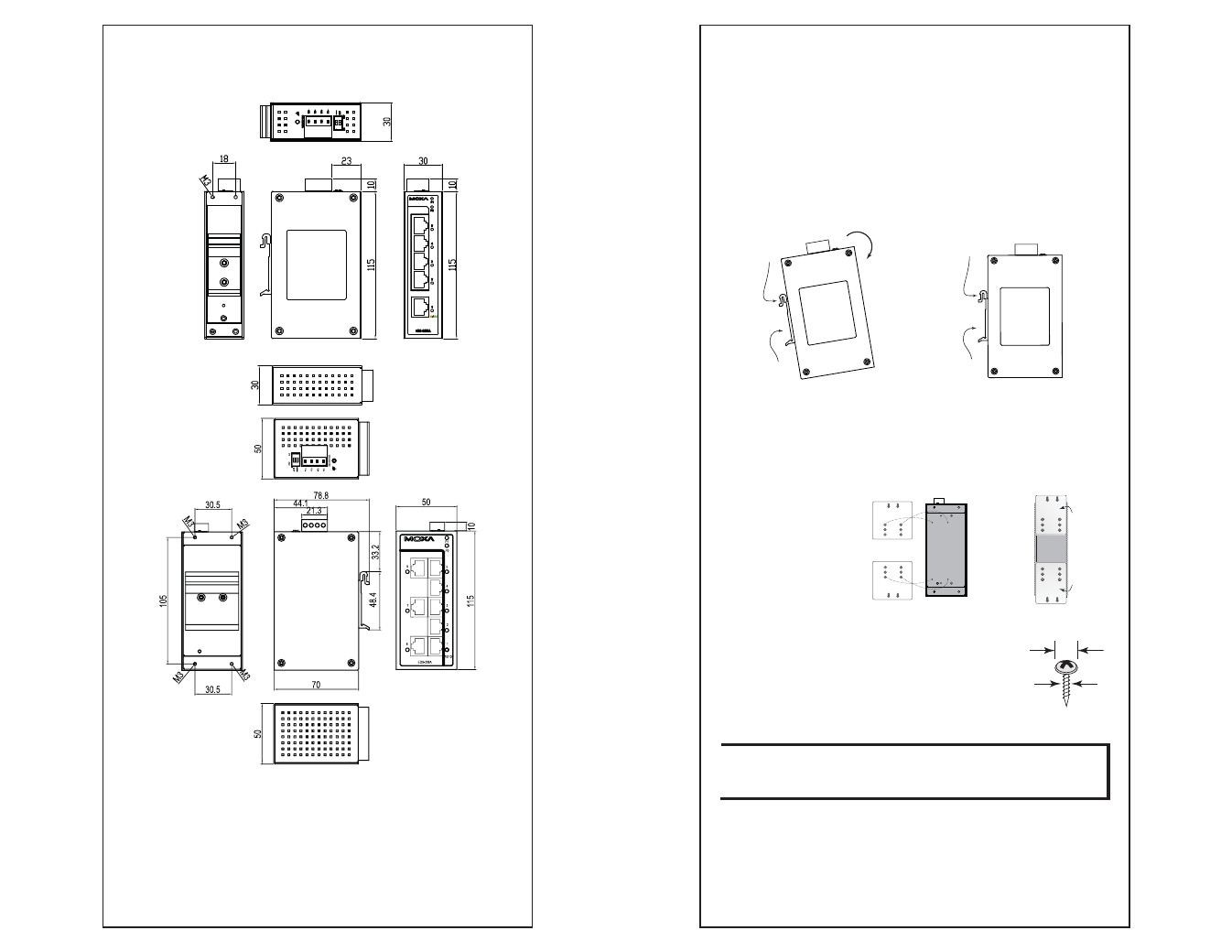

Mounting Dimensions (unit = mm)
- 8 -
DIN-Rail Mounting
The aluminum DIN-rail attachment plate should already be fixed to the back
panel of the EDS when you take it out of the box. If you need to reattach the
DIN-rail attachment plate, make sure the stiff metal spring is situated towards
the top, as shown in the figures below.
STEP 1:
Insert the top of the DIN-Rail into
the slot just below the stiff metal
spring. STEP 2:
The DIN-Rail attachment unit will
snap into place as shown below.
DIN-Rail
Metal
Spring
Metal
Spring
DIN-Rail
To remove the EDS from the DIN-Rail, simply reverse Steps 1 and 2 above.
Wall Mounting (optional)
For some applications, you will find it convenient to mount the
EDS-205A/208A on the wall, as shown in the following figures.
STEP 1: Remove the
aluminum DIN-Rail
attachment plate from the
EDS-205A/208A’s rear
panel, and then attach the
wall mount plates as shown
in the diagram at the right.
Ÿ Ÿ
top
plate
bottom
plate
STEP 2:
Mounting the EDS-205A/208A on the wall requires 4
screws. Use the switch, with wall mount plates attached,
as a guide to mark the correct locations of the 4 screws.
The heads of the screws should be less than 6.0 mm in
diameter, and the shafts should be less than 3.5 mm in
diameter, as shown in the figure at the right.
6.0 mm
3.5 mm
NOTE Before tightening the screws into the wall, make sure the screw
head and shank size are suitable by inserting the screw into one of
the keyhole-shaped apertures of the wall mounting plates.
Do not screw the screws in completely—leave about 2 mm to allow room for
sliding the wall mount panel between the wall and the screws.
