Sound System Components
3
Section 2:
Sound System Components
2.1 Equipment Overview
The Sportsound 1500HD audio system consists of the following elements:
Sound Cabinet
Fiber Conversion Box
Source Equipment
Signal Cables
Note: All products in this system are tested individually for product safety approval.
2.2 Sound Cabinet
The Sportsound 1500HD audio system
cabinet (Figure 3) is 6'-0" (1829 mm) high,
8'-0" (2438 mm) wide, and 3'-6" (1067 mm)
deep. It is composed of a steel skeleton
sheeted in custom aluminum paneling with
three rear access doors. The standard
cabinet is powder coat black with a wrinkle
finish.
Grille
The grille of the cabinet consists of a woven
flame resistant acoustical mesh. The mesh
can be printed in a variety of colors to
display advertising, sponsors, or logo
designs. The printable area is 5'-4
3
/
4
" (1645
mm) high by 7'-9" (2362 mm) wide.
Drivers
Three different types of drivers are used in the sound cabinet:
12" (305 mm) low frequency drivers: Daktronics part # A-2306: (Figure 4)
8" (203 mm) mid-range drivers: Daktronics part # A-2305 (Figure 5)
1.4" (36 mm) high frequency drivers: Daktronics part # A-2302 (Figure 6)
Figure 4: A-2306
Figure 5: A-2305
Figure 6: A-2302

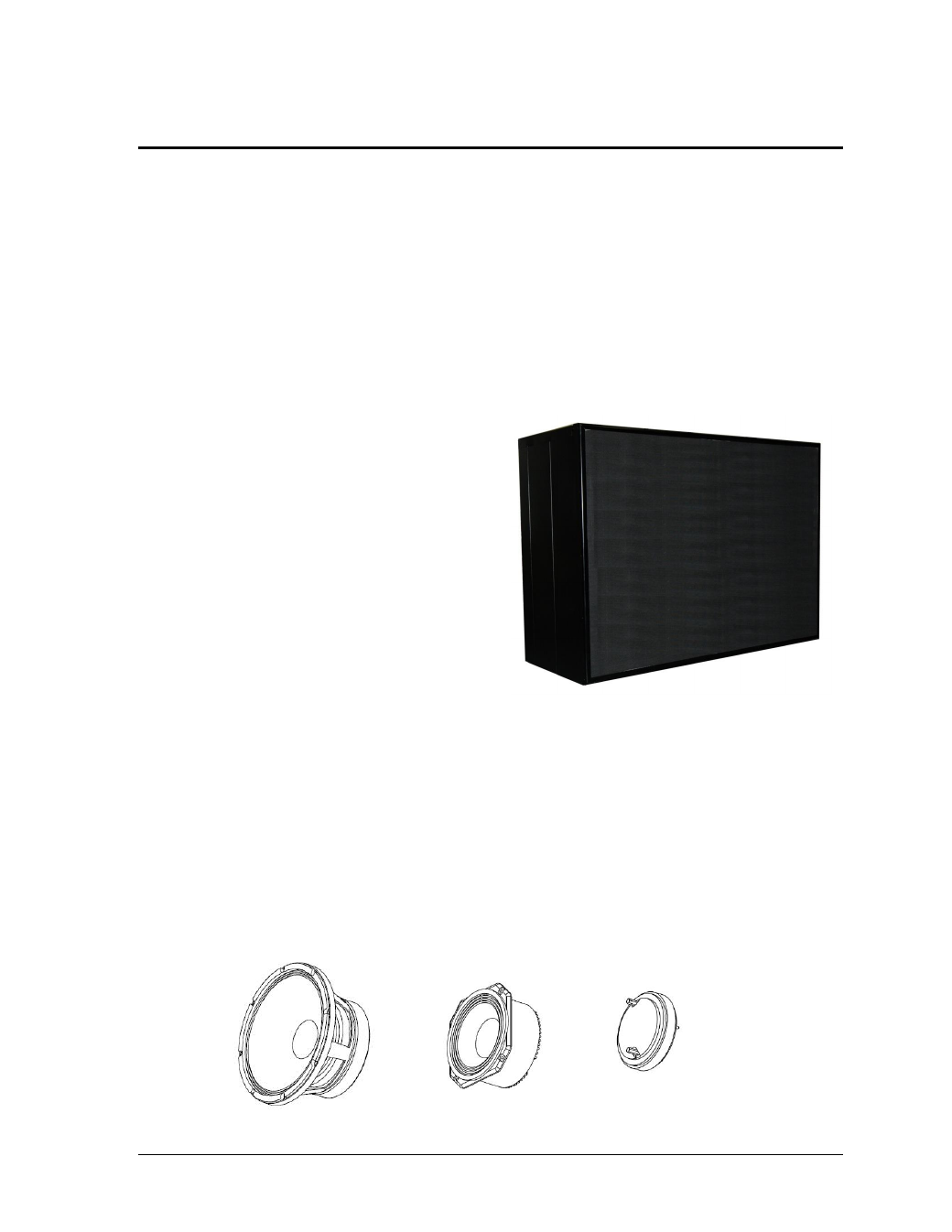

Figure 3: Sportsound 1500HD Cabinet with Grille
