Operators Manual
D3645 31

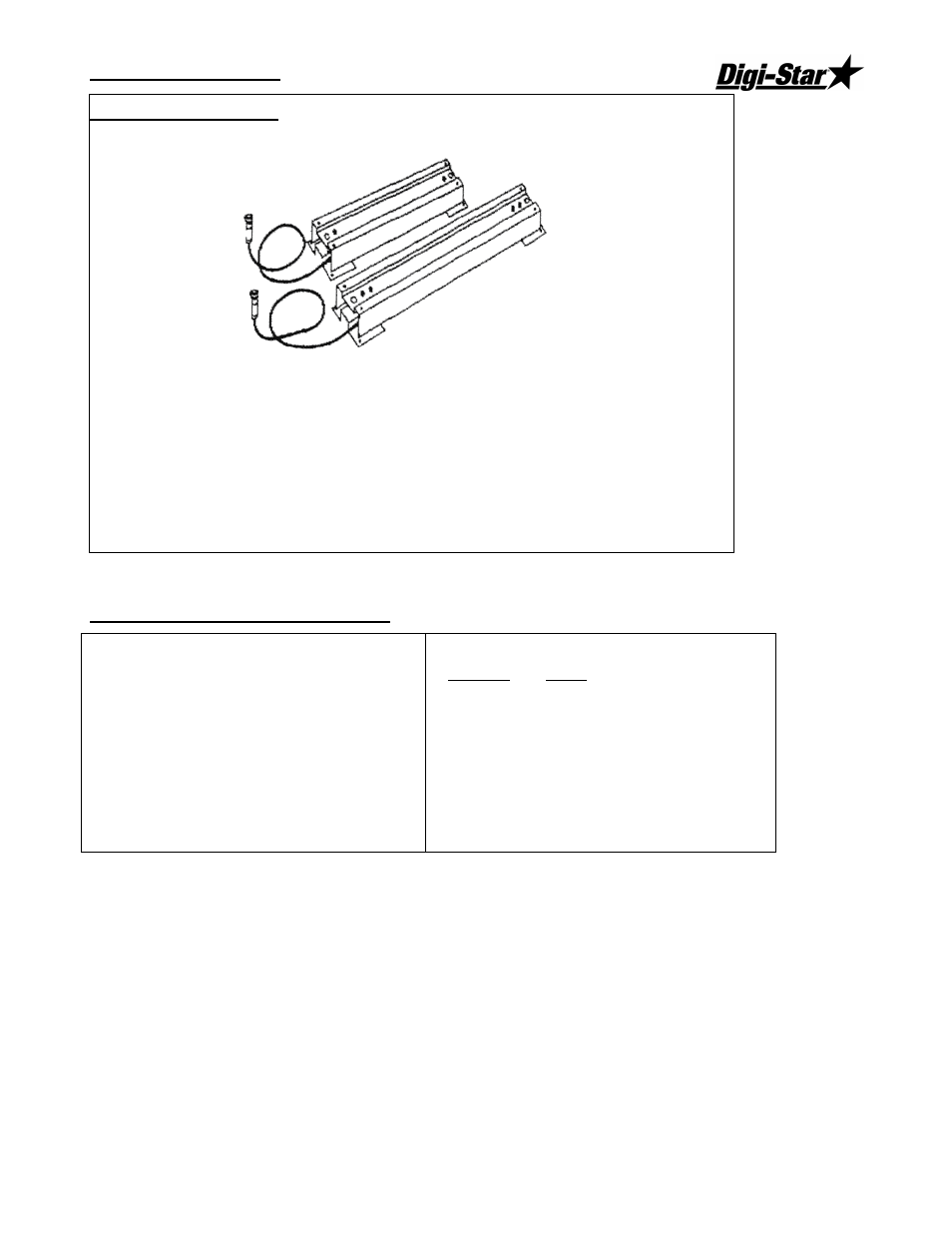

StockWeigh Load Cells
StockWeigh Load Cell Specifications
Gross Capacity
Model 3300:
3300 lbs. Maximum
Model 6600: 6600 lbs. Maximum
Accuracy:
±1% and ±1Display Increment
Load Cell Overall Dimensions
Model 3300: 3¾” H x 8¼” W x 16, 24 & 33½” L
Model 6600: 3¾” H x 8¼” W x 33½ & 44” L
Load Cell Cable Length: 14 Feet
Resolution (For Both Models)
Increment
Range
1 lbs or kgs 0-300 lbs or kgs
2 lbs or kgs 300-600 lbs or kgs
5 lbs or kgs 600 lbs or kgs
Power Requirements: 12-14 VDC @ approx 1 Amp
AC to DC Converter
110 VAC to 13.8VDC @ 1.2 Amps
Load Cells: ....... Model 3300 16” – P/N 148042 24” – P/N 146769 33½” – P/N 400144
Model 6600 33½” – P/N 400058 44” –
P/N 400006
Load Cells Without Connectors:
Model 3300 16” – P/N 403481 24” –
P/N 403482 33½” – P/N 403483
Model 6600 33½” – P/N 403484 44” –
P/N 403485
Model 14,000 P/N 400161
