SLIM-BASIC COMFORT AIR KIT Chapter 3
USE AND MAINTENANCE MANUAL page
13
Basic comfort air kit Technical dept. - All rights reserved by MCZ Group S.p.A. - Reproduction prohibited

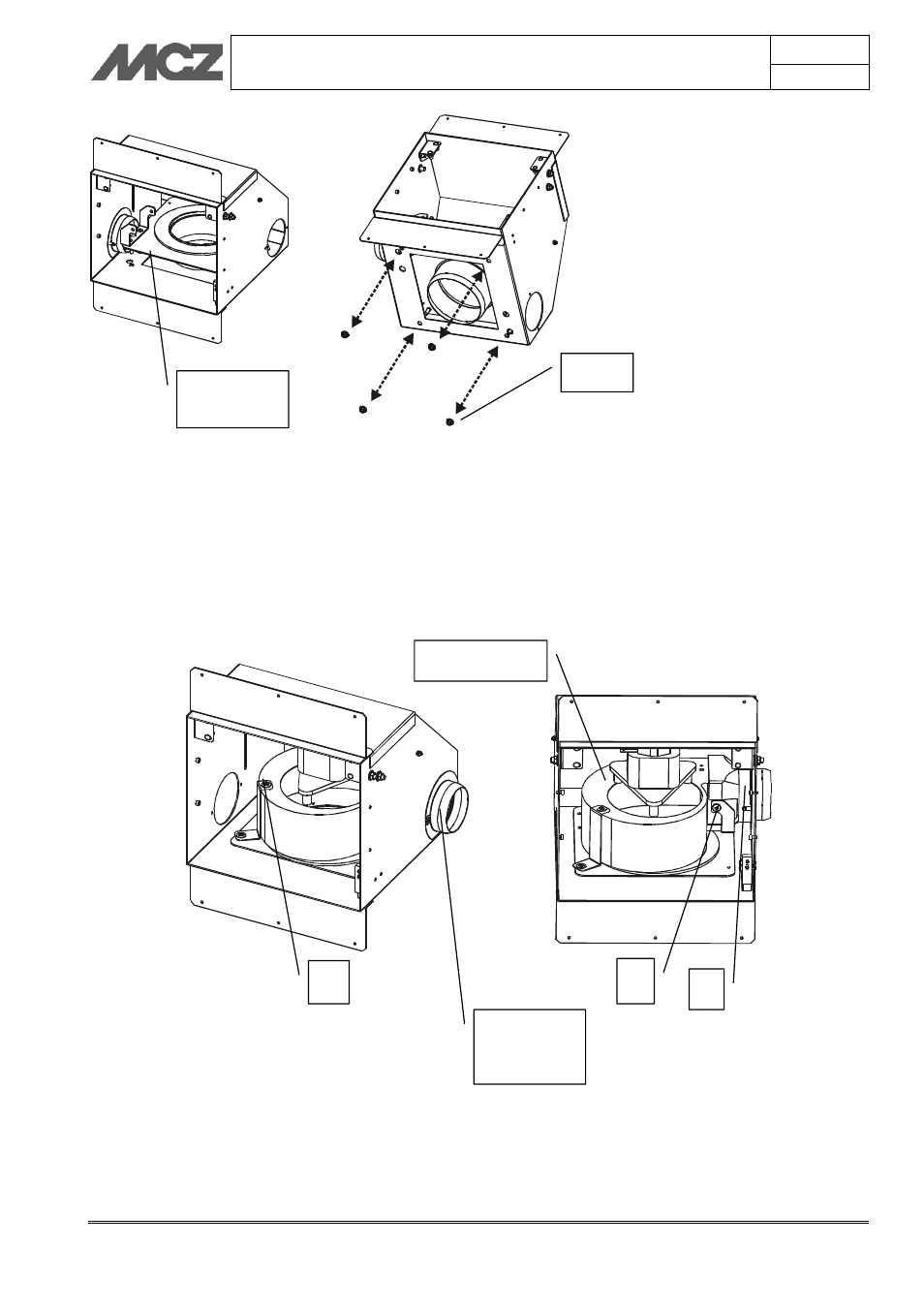

 Turn the plate by 180° and secure it back to the kit box.
 Remove the external and internal flange by loosening the two screws and position it opposite the other
hole.
 Turn the fan by 180° too and secure it with the screws “R” and “S”.
 Now the fan is secured again.
 Reposition the rubber sleeve “Q”
 Reposition the internal flap, close the external flap and proceed with the kit wall installation.
NUT
LOWER
PLATE
R S
FLANGES
FOR R/H
AIR OUTLET
FAN
Q
