SLIM-BASIC COMFORT AIR KIT
Chapter 3
USE AND MAINTENANCE MANUAL
page
17
Basic comfort air kit
Technical dept. - All rights reserved by MCZ Group S.p.A. - Reproduction prohibited
Once you have completed all the various connections (electrical and air diffusion), you can secure the hot air
outlet support to the wall according to the measurements shown above.
Insert the lamps supplied “5” and the tray “6” where envisaged.
Black
Black
Neutral
To the 230V
50Hz line
White
White

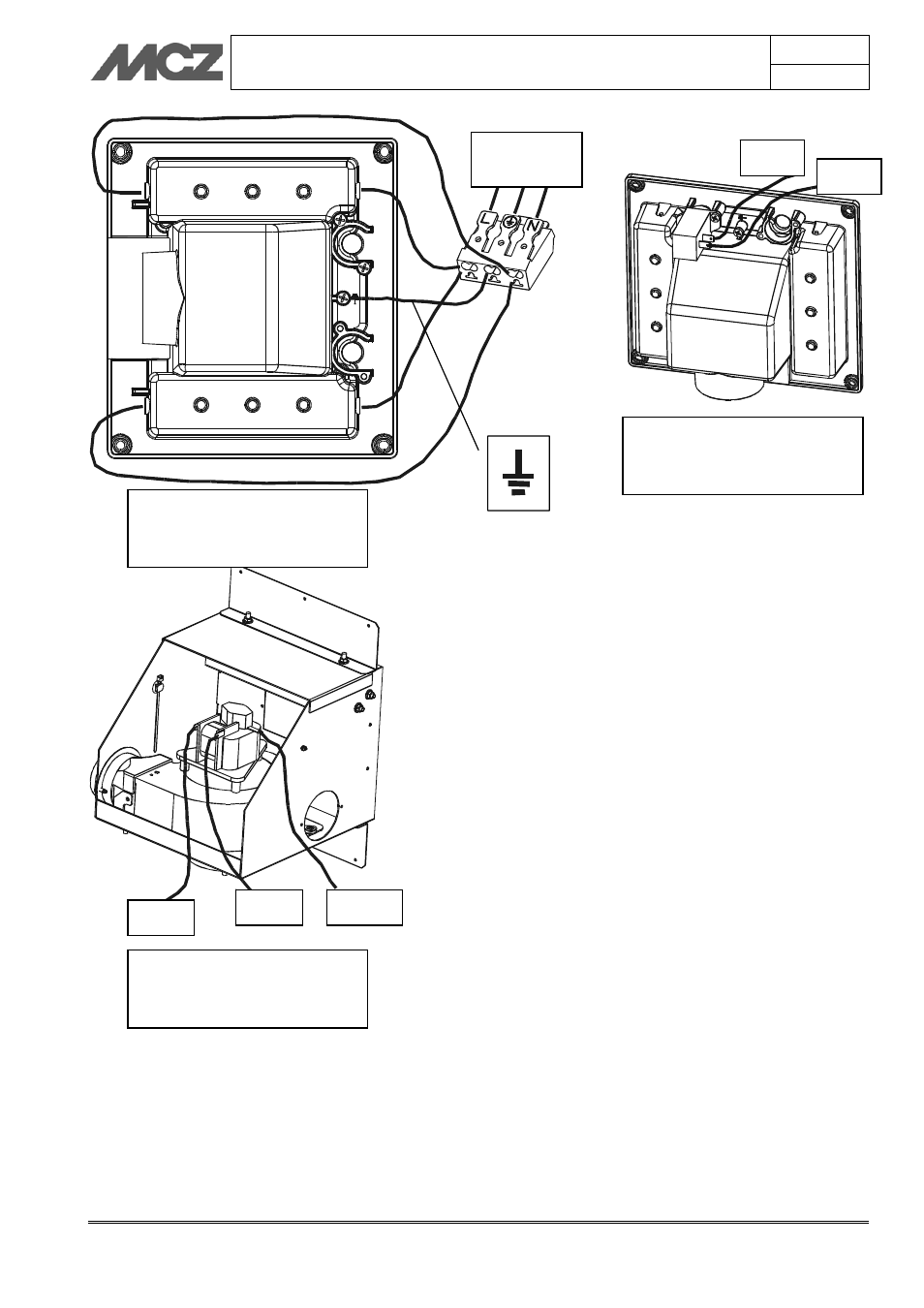

ELECTRICAL
CONNECTIONS
ACTUATOR
ELECTRICAL
CONNECTIONS
LAMPS
ELECTRICAL
CONNECTIONS
FAN
