SLIM-BASIC COMFORT AIR KIT
Chapter 3
USE AND MAINTENANCE MANUAL
page
16
Basic comfort air kit
Technical dept. - All rights reserved by MCZ Group S.p.A. - Reproduction prohibited
Make the connection between the fan kit “1” and the hot air outlet support “2” using the flexible hose Diam.60
“3” and pipe clamp “5” supplied.

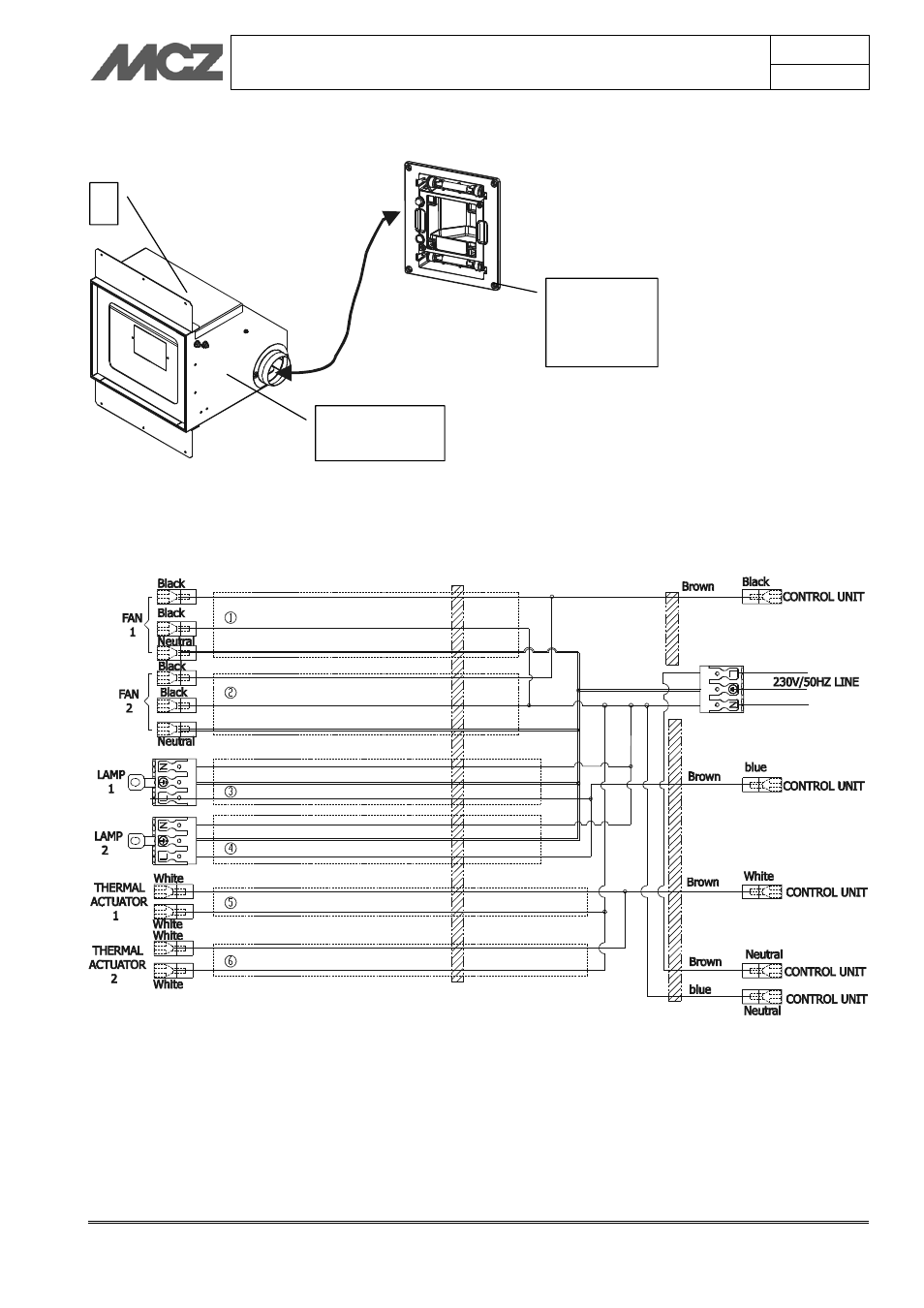

Connect the wires protruding from the lamp holders and connect them to the control unit, according to the
diagram shown below.
FAN KIT
HOT AIR
OUTLET
SUPPORT
1
