40

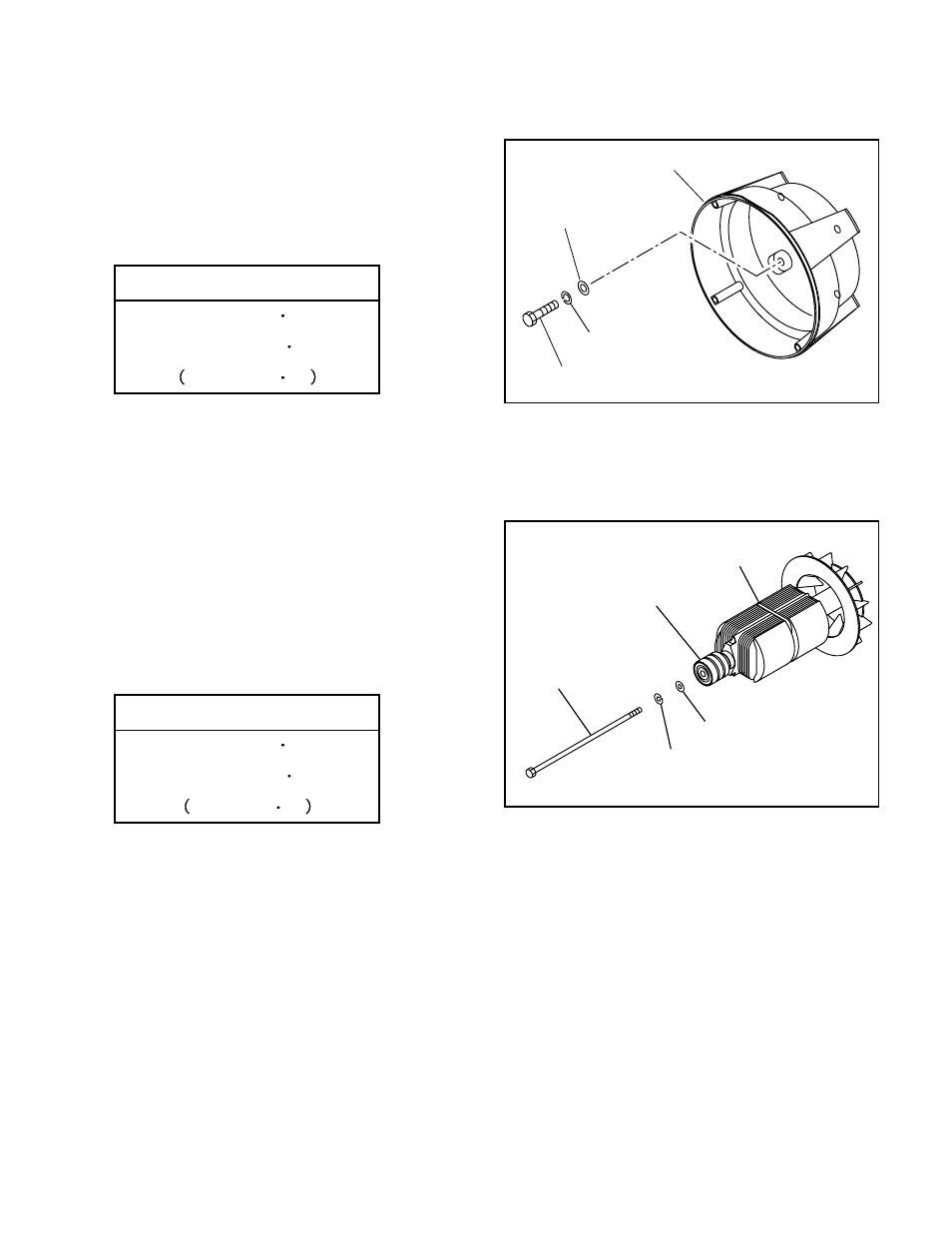

9-4-1 FRONT COVER
Attach the front cover to the engine main
bearing cover. Match the faucet joint and
tighten the bolts.
FRONT COVER
BOLT
SPRING WASHER
WASHER
9-4-2 ROTOR
(1) Wipe off oil, grease and dust from the
tapered portion of engine shaft and
matching tapered hole of rotor shaft.
(2) Mount the rotor to the engine shaft.
Tighten the through bolt.
ROTOR
SPRING WASHER
WASHER
THROUGH BOLT
BEARING
9-4 GENERATOR ASSEMBLING PROCEDURES
Fig. 9-5
Fig. 9-6
Tightening torque
230-250 kg cm
22.5-24.5 N m
16.6-19.5 ft lbs
Tightening torque
120 -140 kg cm
11.8 -13.7 N m
8.7-10.1 ft lbs
