41

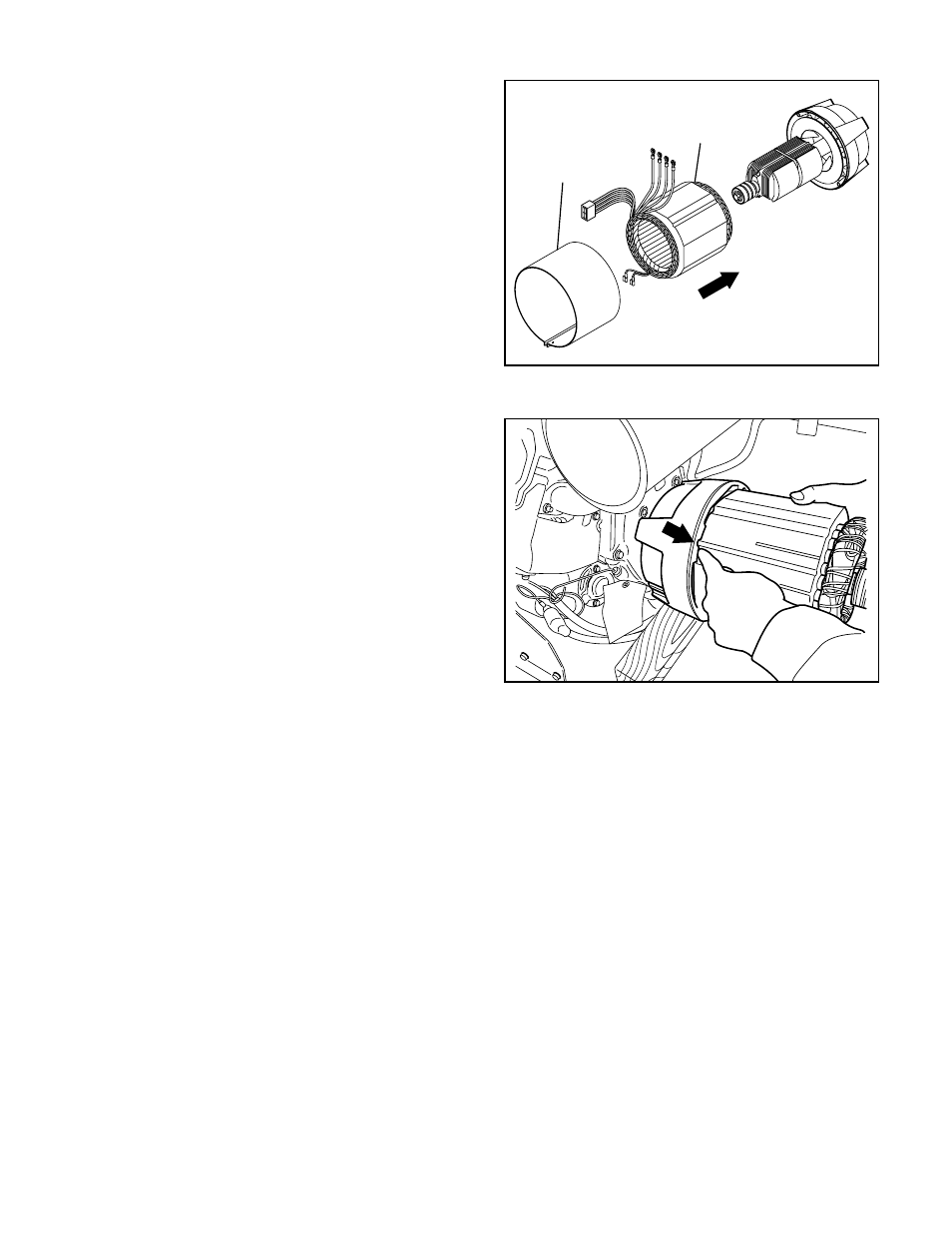

Fig. 9-8
9-4-3 STATOR
(1) Put the stator in the rear cover setting the
four grooves on the side of stator with
thread holes of the rear cover.
Tighten the four bolts tentatively to check
if the grooves and thread holes are
aligned correctly. (See Fig.9-8)
(2) Remove the four bolts.
STATOR COVER
STATOR
Fig. 9-7
