Names of Parts
12
Chapt
er
1
Ov
er
v
ie
w
For information on how to use the control panel, see “Basic Menu Operations” (page 25).
1.
Menu selection buttons
For information on menu items, see “Menu
Details” (page 40).
2.
Display
3.
4.
LIGHT switch
Setting this switch to ON turns the backlight
on.
5.
ADJUST knob
Serves to adjust audio levels etc.
6.
Serves to make menu selections etc. Rotate
the dial to move the cursor and press the dial
to change and confirm settings.
7.
BACK button
When a menu is displayed, you can press this
button to back up one level in the menu
structure.
8.
Control panel connection cable
9.
Record/Play buttons
Use these buttons to play recordings and
files.
The functions of the buttons change when
they are pressed together with the FUNC
button.
10.
FUNC (Function) button
Holding down this button changes the
operation of the Record/Play buttons.
11.
EJECT button and indicator
Note on faulty pixels on the LCD panel
The LCD panel fitted to this unit is manufactured
with high precision technology, giving a
functioning pixel ratio of at least 99.99%. Thus a
very small proportion of pixels maybe “stuck”,
either always off (black), always on (red, green,
or blue), or flashing. In addition, over a long
period of use, because of the physical
characteristics of the liquid crystal display, such
“stuck” pixels may appear spontaneously. These
problems are not a malfunction. Note that any
such problems have no effect on recorded data.

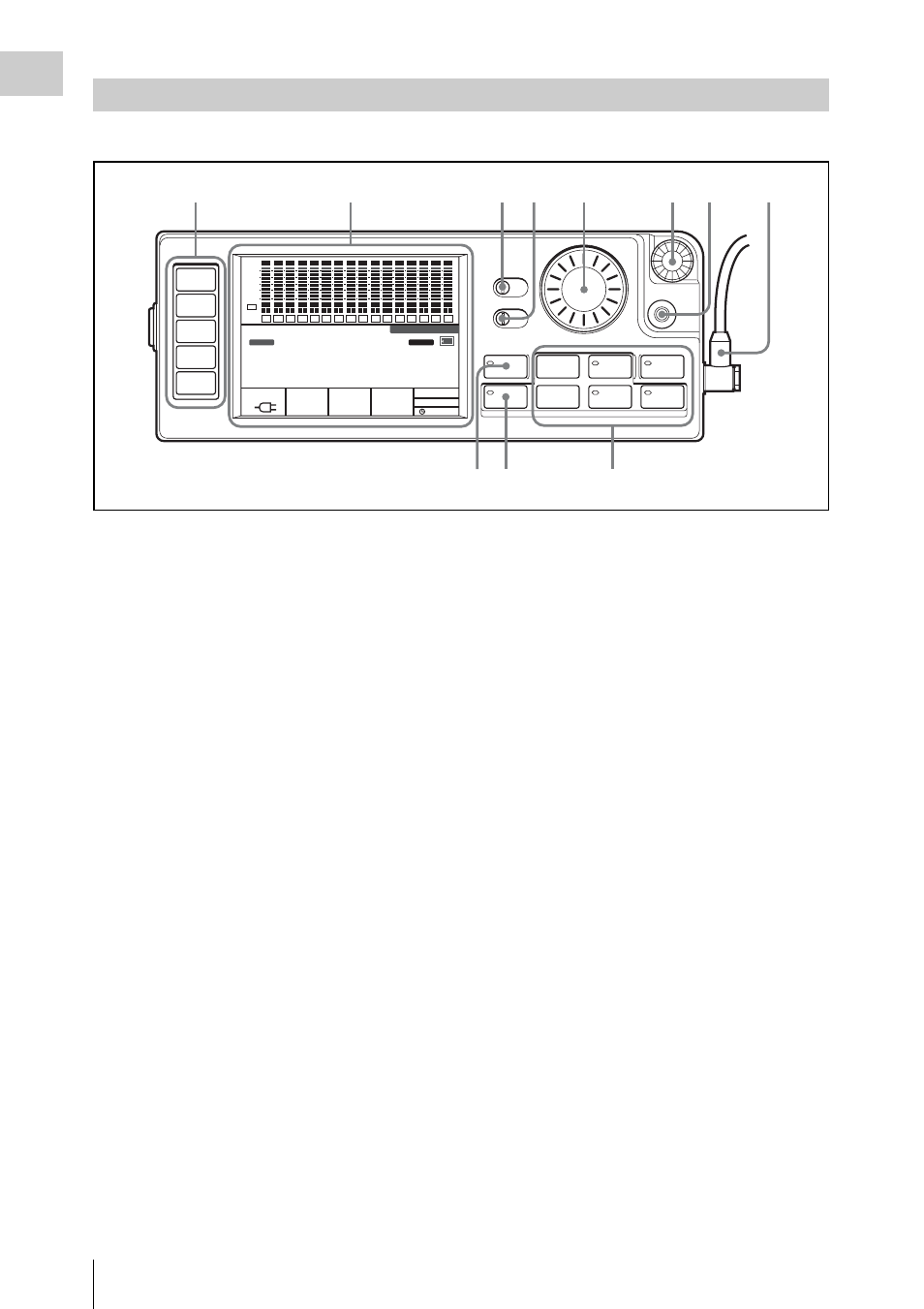

Control Panel (SRK-CP1, Option)
HOME
TC
VIDEO
AUDIO
SYSTEM
EJECT
STOP
PLAY
KEY INHI
ADJUST
BACK
SELECT/ENTER
OFF
ON
LIGHT
OFF
ON
REC
FUNC
REW
F FWD
PAUSE
x
Z
z
B
m
X
M
SDI
EMP
1
L R
dB
0
-10
-20
-30
-60
TCG
REMAIN
10min
23.98P
F65RAW
STANDARD
ENCODE
LOCAL
EE
21:46
STOP
RECINHI
KEYINHI
SR-R4:CAM
00
H
00
M
00
S
00
F
EE
16.5V
SDI
EMP
2
L R
SDI
EMP
3
L R
SDI
EMP
4
L R
SDI
EMP
5
L R
SDI
EMP
6
L R
SDI
EMP
7
L R
SDI
EMP
8
L R
SDI
EMP
9
L R
SDI
EMP
10
L R
SDI
EMP
11
L R
SDI
EMP
12
L R
SDI
EMP
13
L R
SDI
EMP
14
L R
SDI
EMP
15
L R
SDI
EMP
16
L R
1
11 10
9
2
3 4
5
6
7
8
