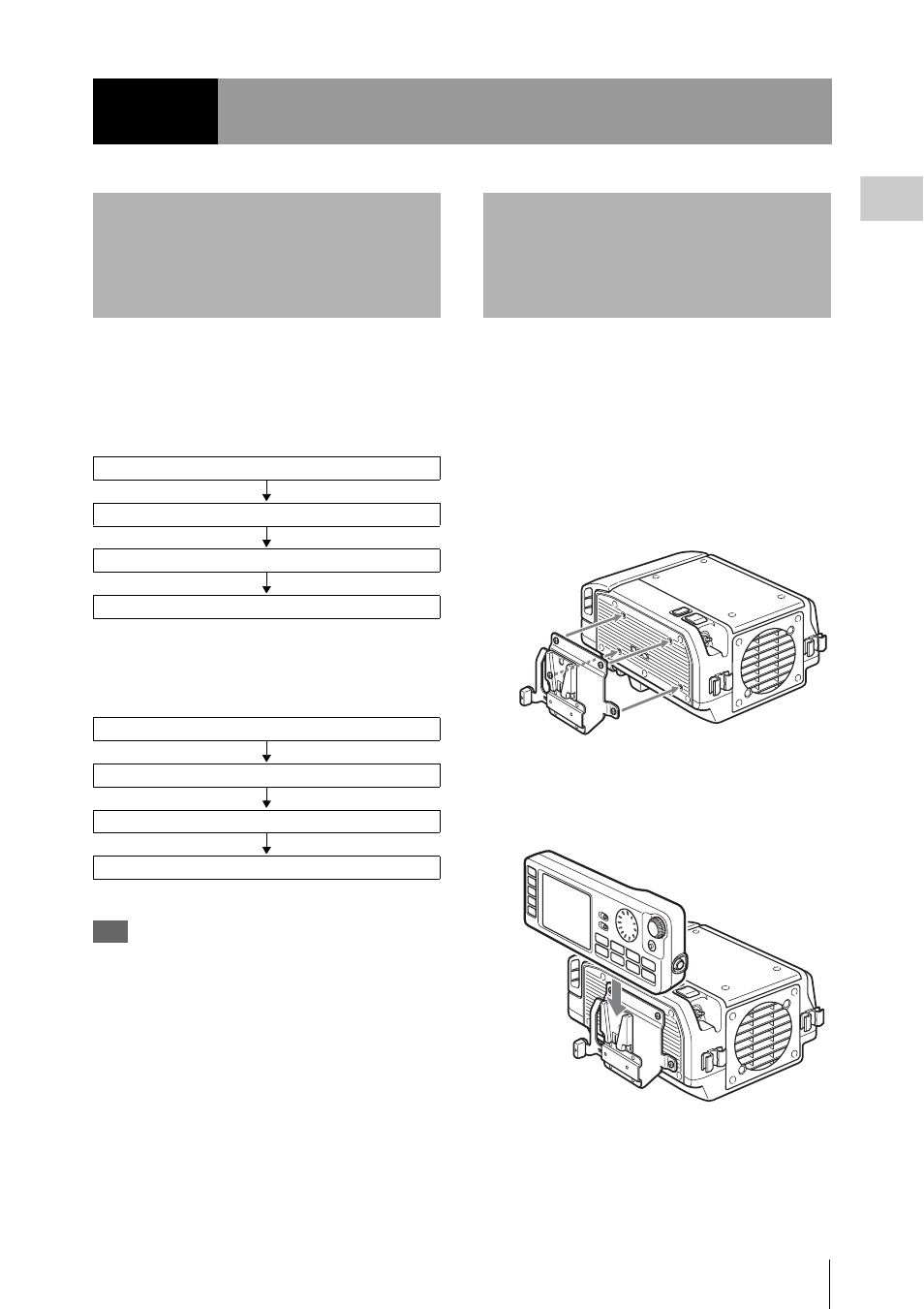

Page 15: Chapter 2 : preparation, 2preparation
Work Flow / Mount Control Panel on Unit
15
Cha
p
te
r 2
P
rep
ar
at
ion
The steps that are required before starting to use
the SR-R4 are listed below.
When mounting Control Panel (SRK-CP1,
Option) on the unit
When mounting Control Panel (SRK-CP1,
Option) on the F65
Tip
A Phillips (cross head) screwdriver is required for
mounting the control panel.
Attach the CP bracket supplied with the Control
Panel (SRK-CP1, Option) to the unit, and connect
the unit and the control panel with the control
panel cable.
1
Attach the CP bracket supplied with the
control panel to the right side of the
unit.
2
Slide the control panel into the CP
bracket.
Chapter
2
Preparation
Work Flow
Mount control panel on unit
Connect F65
Turn power on
Connect F65
Mount control panel on the F65
Turn power on
Mount Control Panel on
Unit
