Maintenance and Inspections 49
A
ppe
ndix
If no shutter opening jig is available

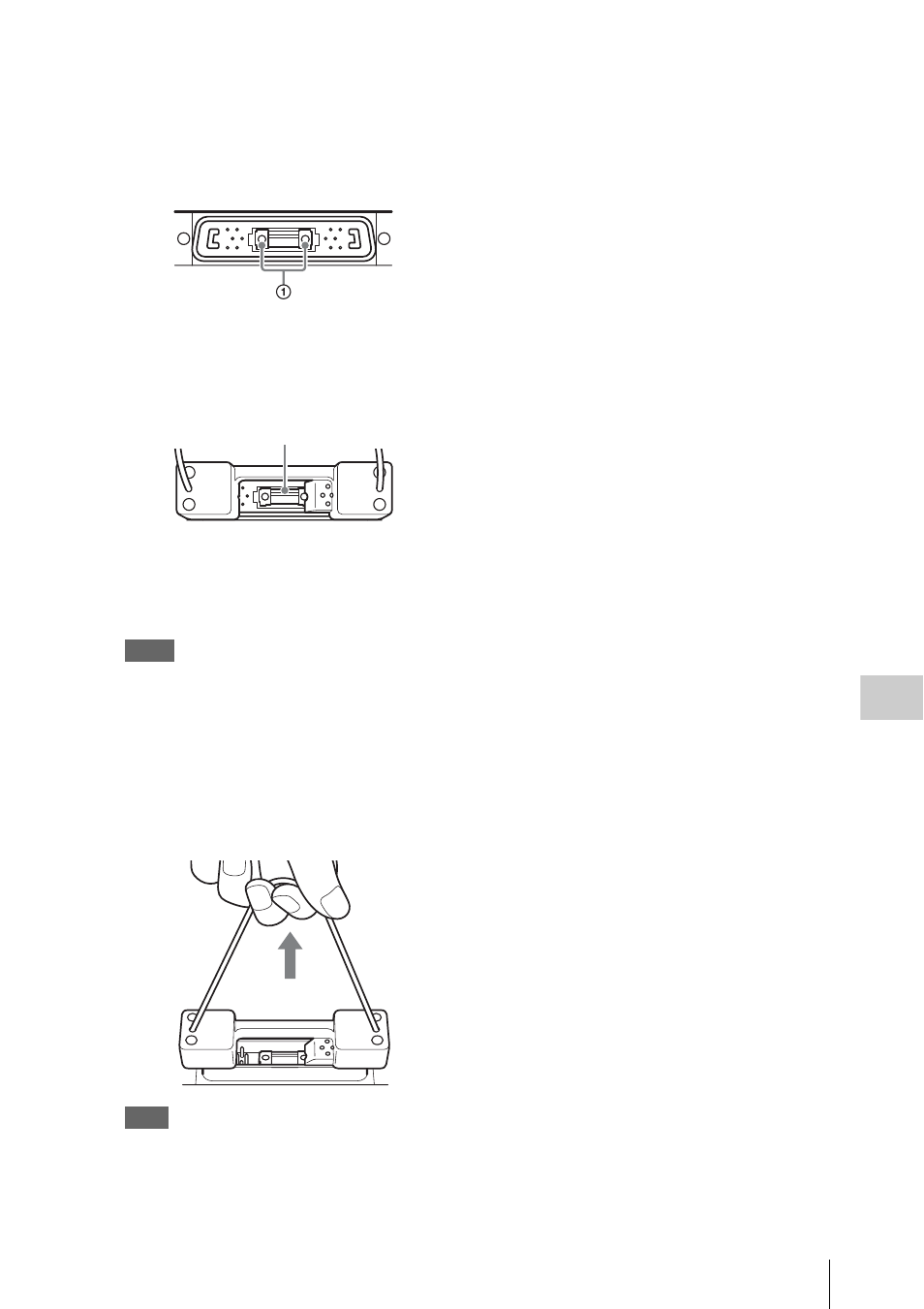

Press point 1 on the CAMERA connector
using your finger or other object to open the
protective shutter and expose the optical
contacts. Then proceed to step 4.
3
Once the shutter opening jig is attached,
open the shutter and check that you can
see the optical contacts.
4
Dip an optical fiber cleaning swab in
alcohol and gently wipe the whole
optical contacts area about five times.
Notes
• Always use alcohol only in well-ventilated areas
away from heat or flame.
• Wiping firmly may damage the optical fiber
contacts.
5
After cleaning the connector, pull the
pull-cord directly up and remove the
shutter opening jig.
Note
After cleaning the connector, do not leave the
shutter opening jig attached to the connector. Doing
so leaves the optical connector shutter open,
allowing dust or dirt to adhere to the optical
contacts.
6
Release the connector’s protective
shutter, and connect the unit to the F65.
If not connecting the F65, reattach the
connector cap.
Optical contacts
