4. USER INTERFACE (continued...) --
4.5 MEMORY SWITCH SETTINGS
MSW2–0
Always set to OFF.
MSW2–1
Determines the function of the Over Tension contact. When set to OFF, the contact functions as the
Over Tension contact. When set to ON, the contact functions as the Minimum Diameter contact and
the Over Tension function is active on the Zero Tension Contact. Refer to Section 3.5 for details.
MSW2–2
Enables the Auto Indicator output contact. Refer to Section 3.5 for details.

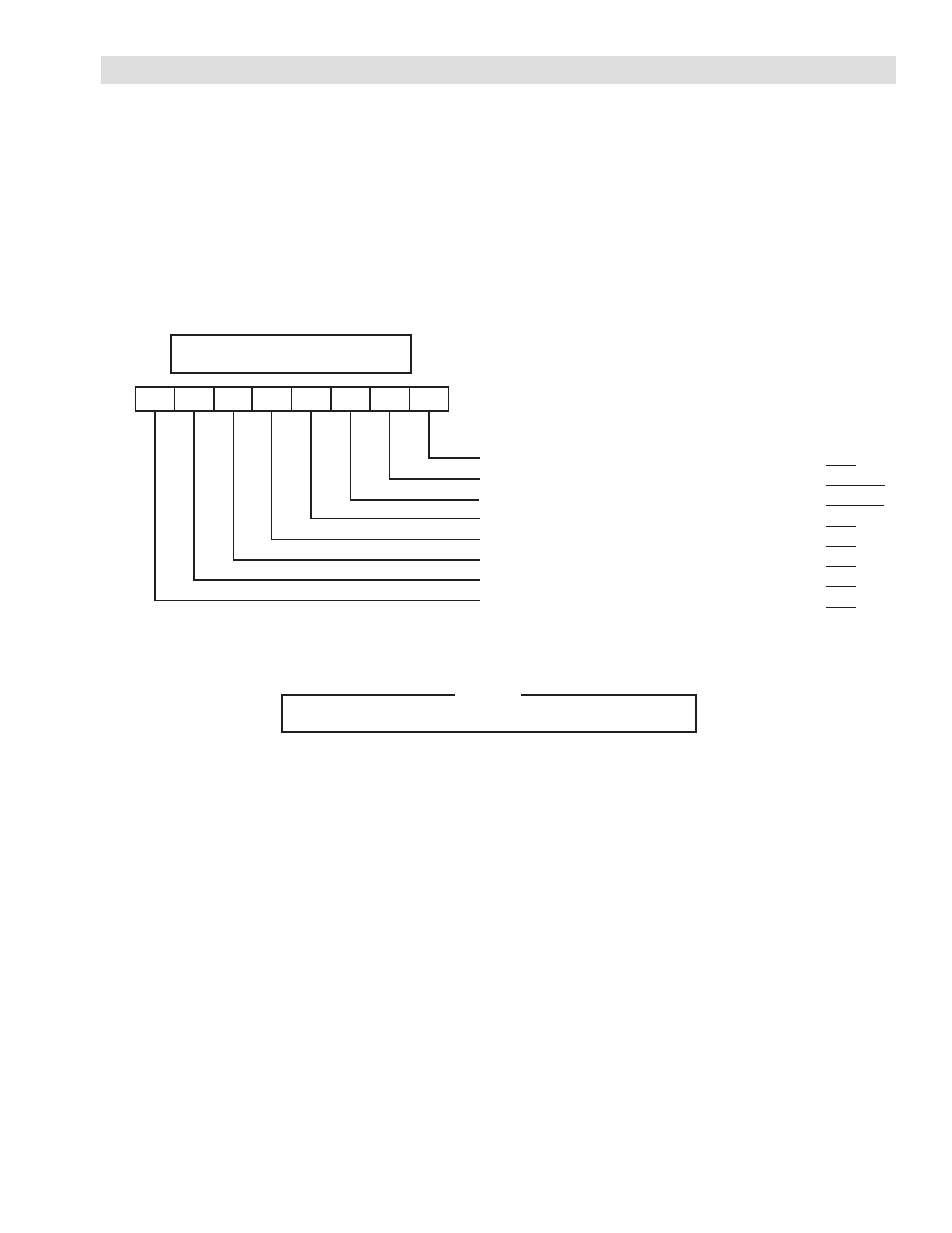

MEMORY DIP SWITCH 2 (MSW2)
7
6
5
4
3
2
1
0
0: Not used
1: Over-Tension/Minimum Diameter
2: Auto Indicator
3: Not used
4: Not used
5: Not used
6: Not used
7: Not used
7 6 5 4 3 2 1 0
– – – – – – – –
MSW2
ON
(*
) OFF (–)
NOTE
The underline indicates a position set at the factory.
: ON
: Min Ten
: Enabled
:
:
:
:
:
OFF
Over Ten
Disabled
OFF
OFF
OFF
OFF
OFF
