Section 10
AIR INLET DUCT INSTALLATION
10. AIR INLET DUCT INSTALLATION
A. Install the 4" end of the supplied sleeve onto
the supercharger inlet using a #64 hose
clamp.

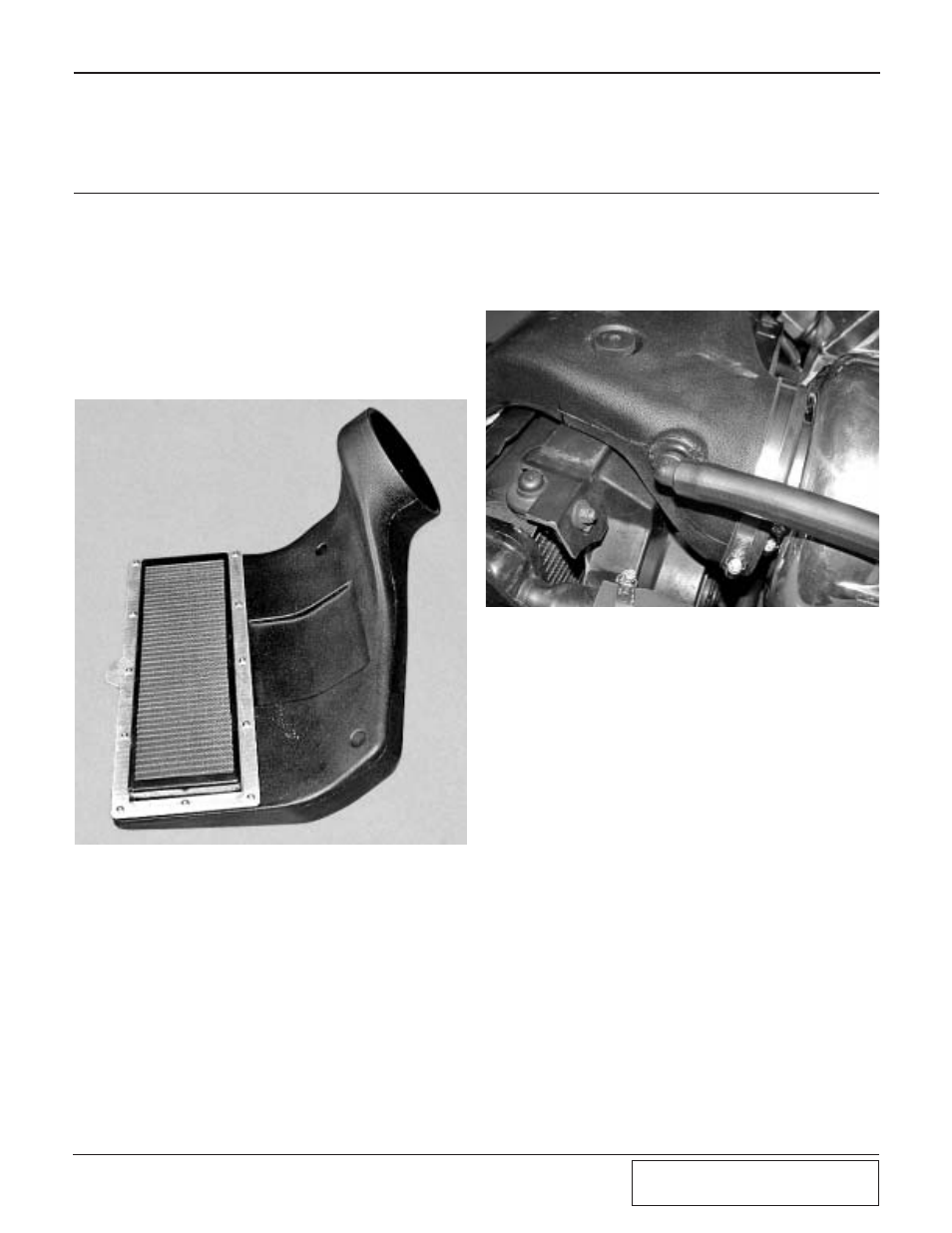

B. If the air inlet duct is not already assembled,
install the metal frame around the air filter
element and install onto the air inlet duct
using the supplied screws. Install the sup-
plied grommet into the duct. (See Fig. 10-a.)
C. Install the supplied air inlet duct by placing
the protruding air filter into the open area in
front of the radiator core support.
D. Work the open end of the duct into the
sleeve installed on the supercharger and
secure with a #104 hose clamp. Use the fac-
tory thumbscrews to secure the air inlet duct
to the core support.
Fig. 10-a
Fig. 10-b
E. Using the supplied 5/8" hose and 90° fitting,
connect the factory valve cover breather
hose to the hole in the driver’s side of the air
inlet duct. Secure with zip-ties. (See Fig.
10-b.)
