Paxton Superchargers Dodge Viper RT/10 - Manual (Page 36)

11-2
P/N: 4809646
©2006 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
17FEB06 v2.0 92-96Viper(4809646v2.0)
TO FACTORY
POWERTRAIN
CONTROL
MODULE
(PCM)
TO
ENGINE/
SENSORS
(9) DARK BLUE
(4) BLACK/LIGHT BLUE
(24) GRAY/BLACK
(44) TAN/YELLOW
GRAY
GRAY/BLACK
TAN
TAN/YELLOW
RED - 20
BLACK - 20
VIOLET - 20
RED
RED/BLACK
RED/GREEN
WILL BE CONNECTED
IN SECTION 12
(SEE FIG. 12-B.)
TO POWER
TERMINAL AT
FRONT OF
FUSE BOX
SUPPLIED
IGNITION
CONTROL BOX
PIN# COLOR

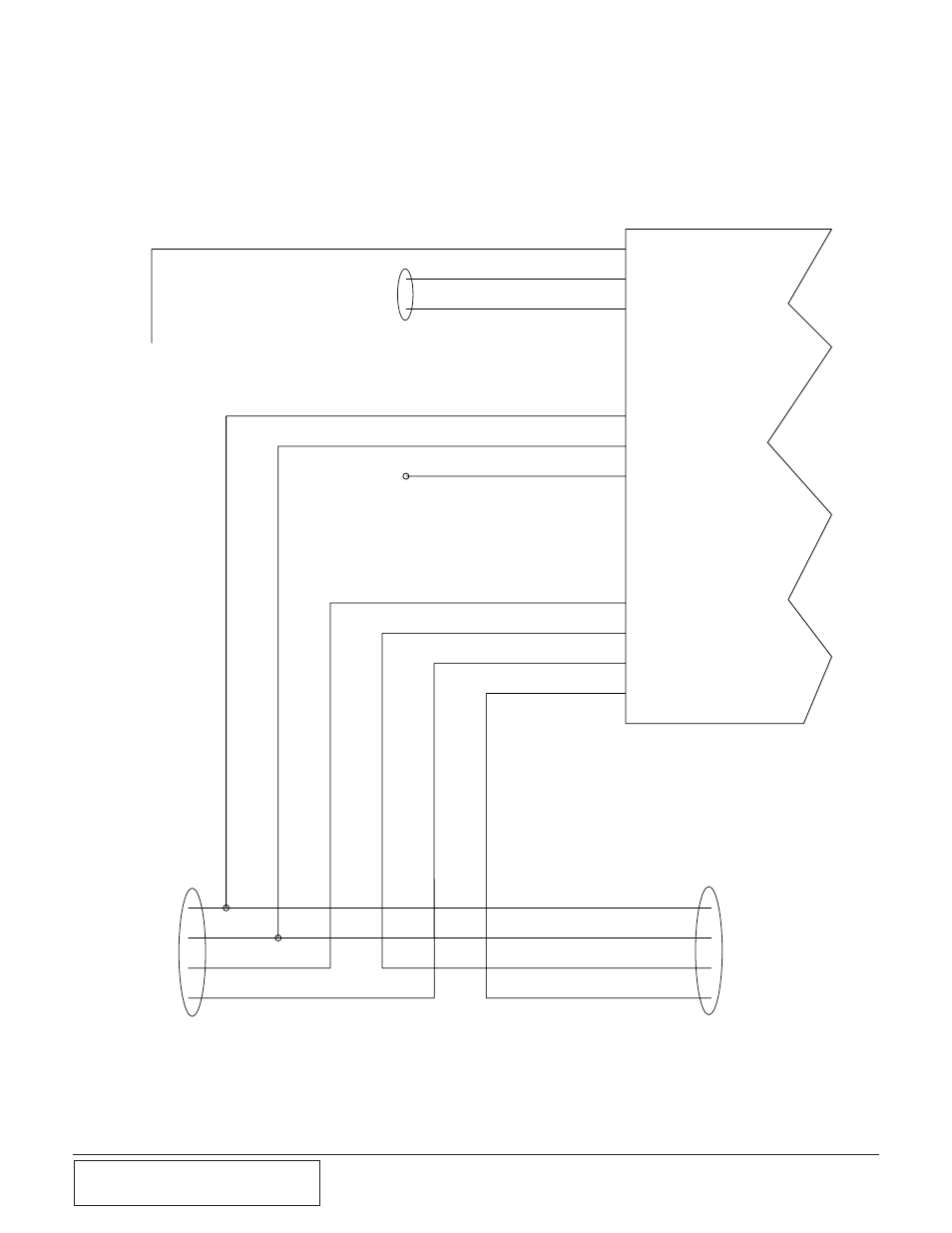

Fig. 11-c / Timing Controller Wiring Schematic
11. TIMING CONTROLLER INSTALLATION, cont’d.
