Checking the Pump Pressure
To check the pump pressure, proceed as follows:
1
Remove the feedline filter from the manifold (see
).
2
Screw on filter cap (R18896-G1) modified with a 1/4-inch NPT tapped hole.
3
Attach the pressure gauge into the hole on the filter cap.
When testing is complete, replace the filter cap with the filter.
IMPORTANT INFORMATION

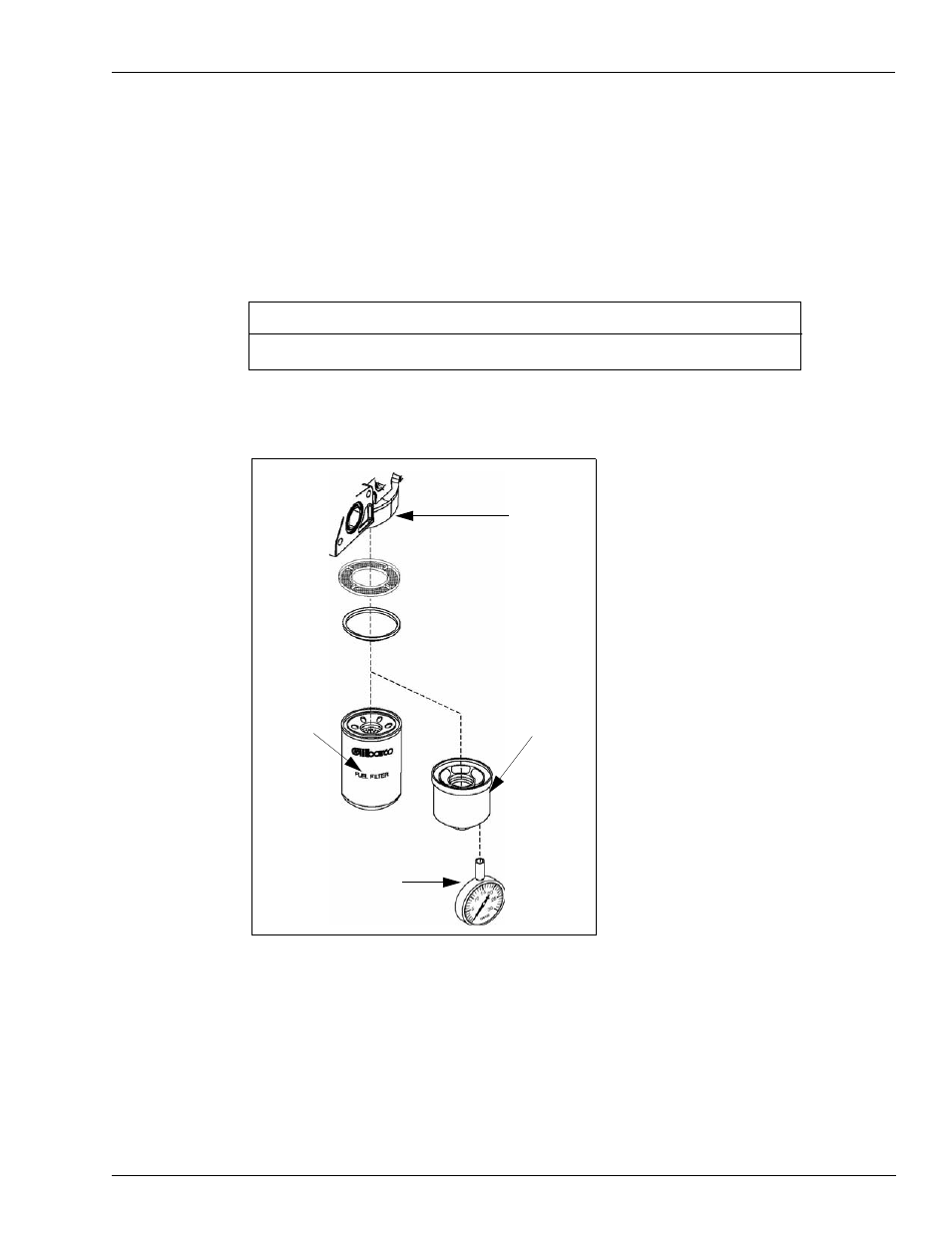

Figure 14: Pump Pressure Test Set-up
Manifold
Fuel
Filter
Filter
Cap
Pressure
Gauge
