Installation of the CPU Heater Kit
Page 6 MDE-4650 CPU Heater Kit Installation Instructions for 9800K Series Pumps · April 2007
7 Remove all cables connected to the CPU board. If your dispenser has a pulse output board or
RS-485 board, disconnect it from the CPU and remove the CPU board.

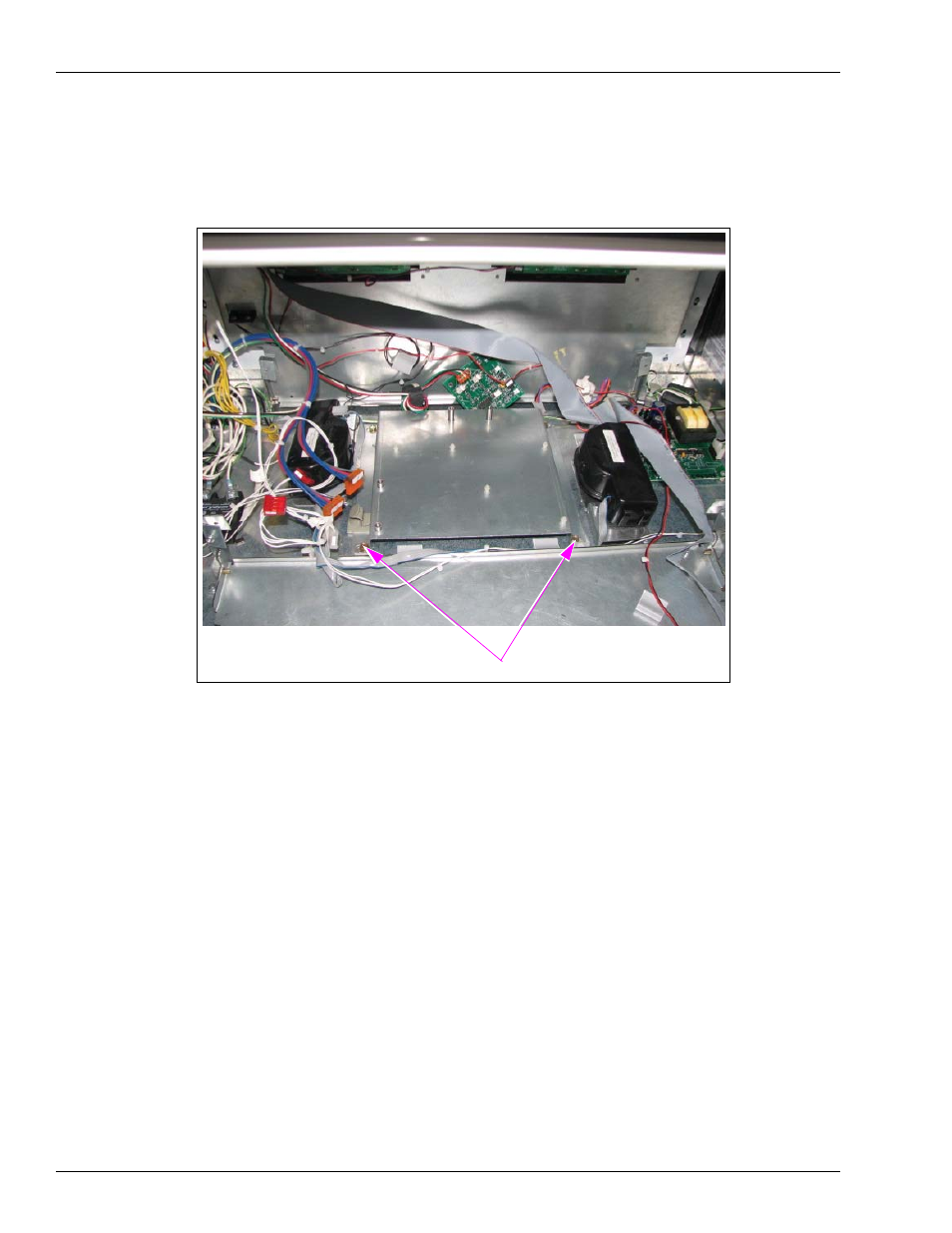

Figure 2: Removal of Bolts
Remove Bolts
8 Locate the four bolts that hold the existing mounting plate on the dispenser. Remove the four
bolts (
Figure 2 ) and the existing mounting plate.
9 Install the new mounting plate/heater assembly.
Note: Ensure that no wires are caught below the new mounting plate.
10 Use the four bolts removed in step 8 to secure the mounting plate.
11 Locate the power bracket inside the unit (near the end of the AC conduit) shown in Figure 3 on
page 7 .
12 Run the heater cable to the power bracket.
Note: Ensure that the cable does not run with DC cables and interfere with the pulser in any
way.
