Appendix 3: Connecting Multiple Cables
Ground Ground Ground Ground
Ground Ground
NOTE: The control is not shown in these diagrams in order to simplify them . These diagrams are
given only as examples of how to properly connect multiple cables . Care must be taken not to
overfill a box . Be sure to use wire nuts that are the correct size for the connections being made .
Follow all codes for wiring . If in doubt, consult an electrician .

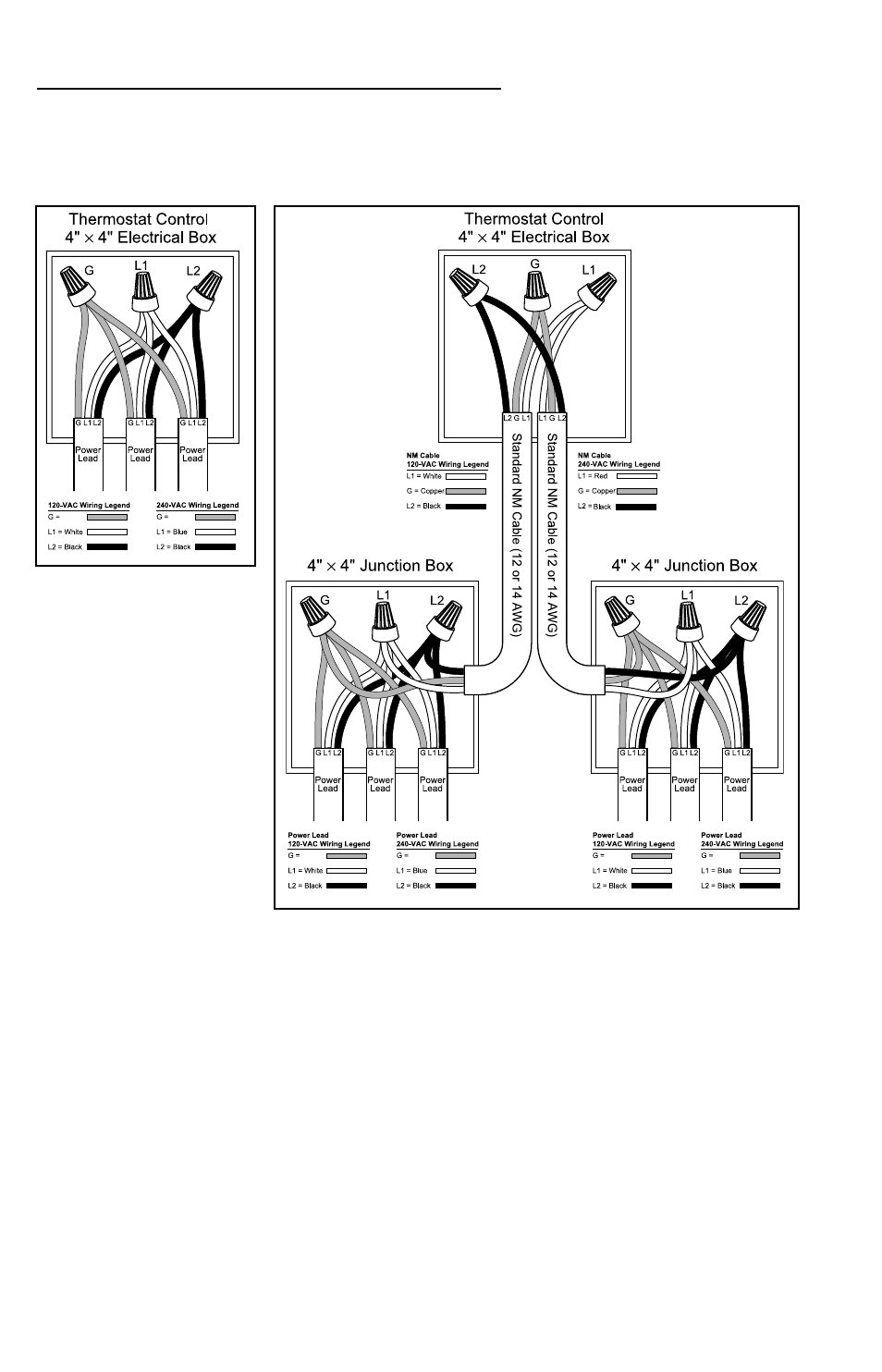

Illustration showing how to connect three
cables at the control electrical box .
Illustration showing how to connect multiple cables from multiple junction boxes at one control
electrical box .
