2. Hardware Orientation

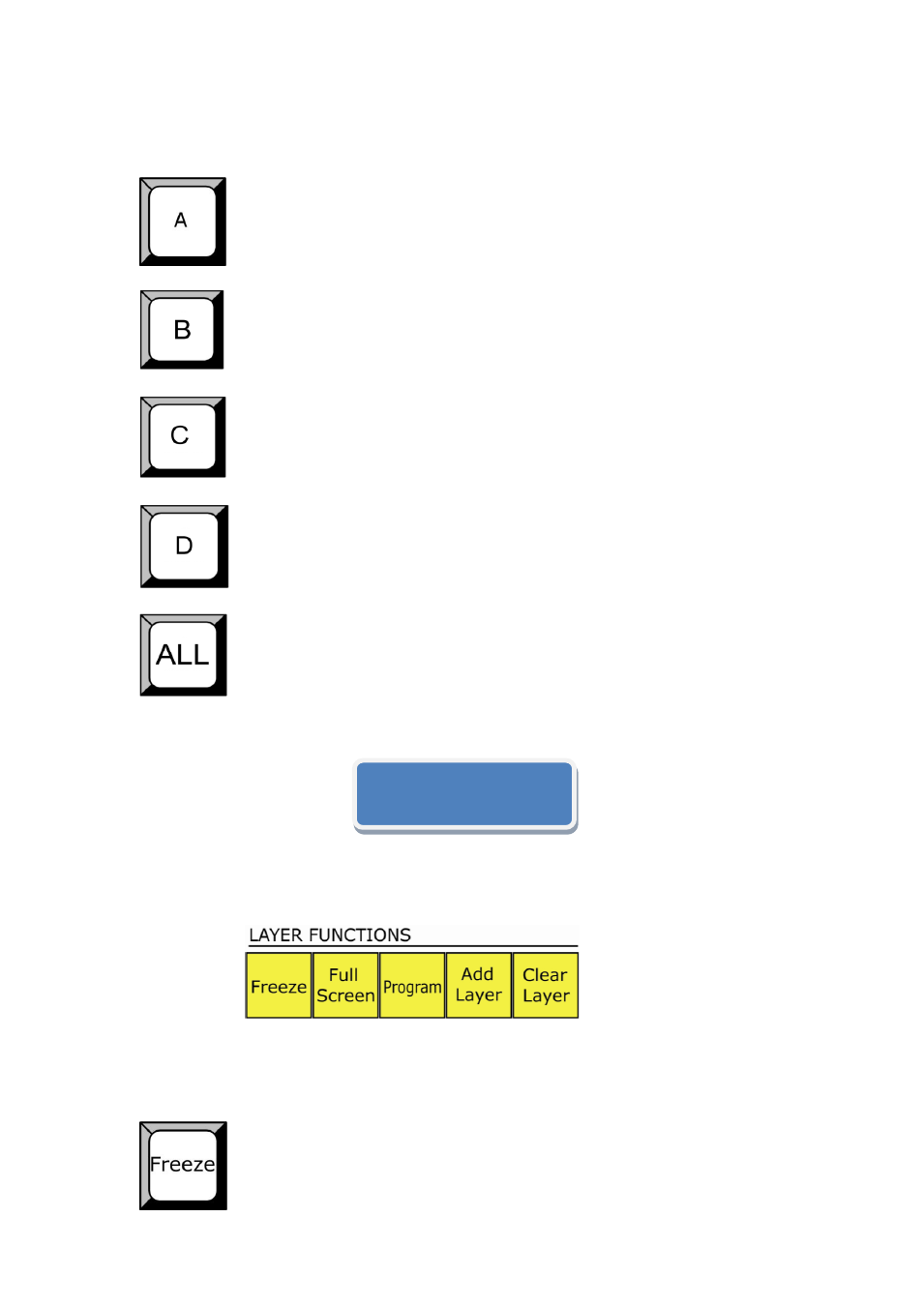

VSP 3600 Front Panel Button Part
VSP 3600 User Manual 34
A: Layer A. It lights means being selected and brinks means being
programmed;
B: Layer B. It lights means being selected and brinks means being
programmed;
C: Layer C. It lights means being selected and brinks means being
programmed;
D: Layer D. It lights means being selected and brinks means being
programmed;
ALL: It lights means all layers being selected.
Push A-D button, LCD panel will display as follows ( select A)：
All LAYER FUNCTIONS in this part are used to program the function
of output layer;
Freeze: Push it to light, and the current layer on the screen will freeze.
Push it to light off, and the current layer will be alive; Current layer is
SELECT LAYER:
LAYER A
