2. Hardware Orientation
VSP 3600 Front Panel Button Part
VSP 3600 User Manual 36
Note

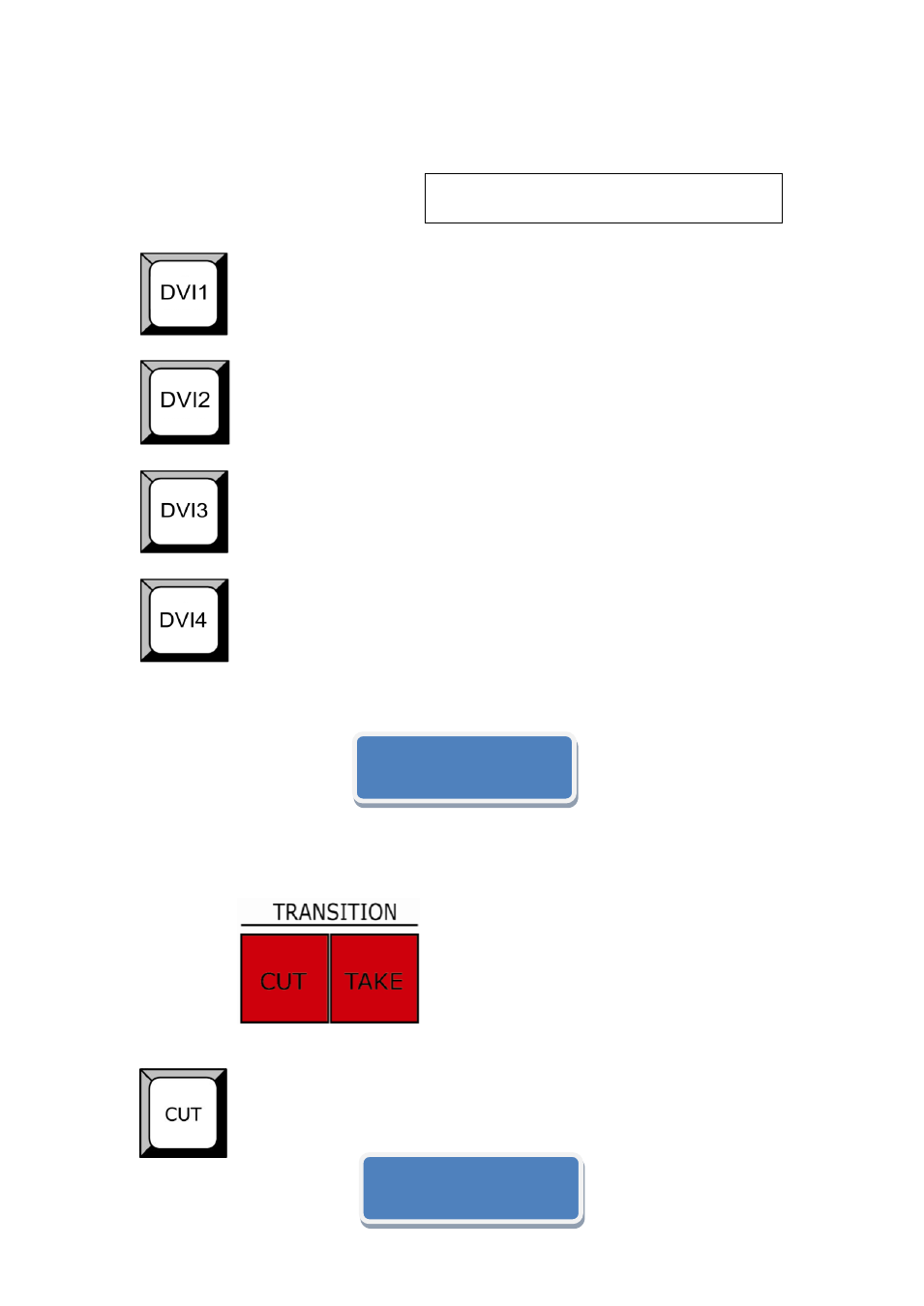

OUTPUTS Button DVI1 corresponding
DVI1/VGA1 is the default as program output.
DVI1: It is corresponding to DVI 1/ VGA 1 on back panel. It lights means
being selected;
DVI2: It is corresponding to DVI 2/ VGA 2 on back panel. It lights means
being selected;
DVI3: It is corresponding to DVI 3/ VGA 3 on back panel. It lights mean
being selected;
DVI4: It is corresponding with DVI 4/ VGA 4 on back panel. It lights means
being selected;
Push 1-4, LCD panel will display as follows (select output: output 1):
Transition Part
CUT: Seamless cutting button, press the button to switch Preview out to
Program;
SELECT OUTPUT:
OUTPUT 1
CUT SWITCH TO:
OUTPUT 3
