Interconnect Module
The Interconnect Module connects the Upper Card Cage to the Lower Card Cage. It is located within the
chassis of the VX640. The Interconnect Card contains no active components, but it does have LED
indicators and a DIP Switch for setting the static IP address when connecting to the Ethernet. This
module can be accessed through the front of the router. See the DIP Switch Instructional Guide in
Appendix B, Setting the DIP Switch Instruction Guide (page 30) for detailed instructions on how to
access the Interconnect Module and set the DIP Switch.
The Interconnect Module is NOT hot-swappable.
Status LEDs
The VX640 router was designed with status LEDs located on the front of the unit. These LEDs give a
visual indication (LED on) that the System Power (12V) and the Controller Power (3.3V) in both the
Upper and Lower Card Cages is applied.

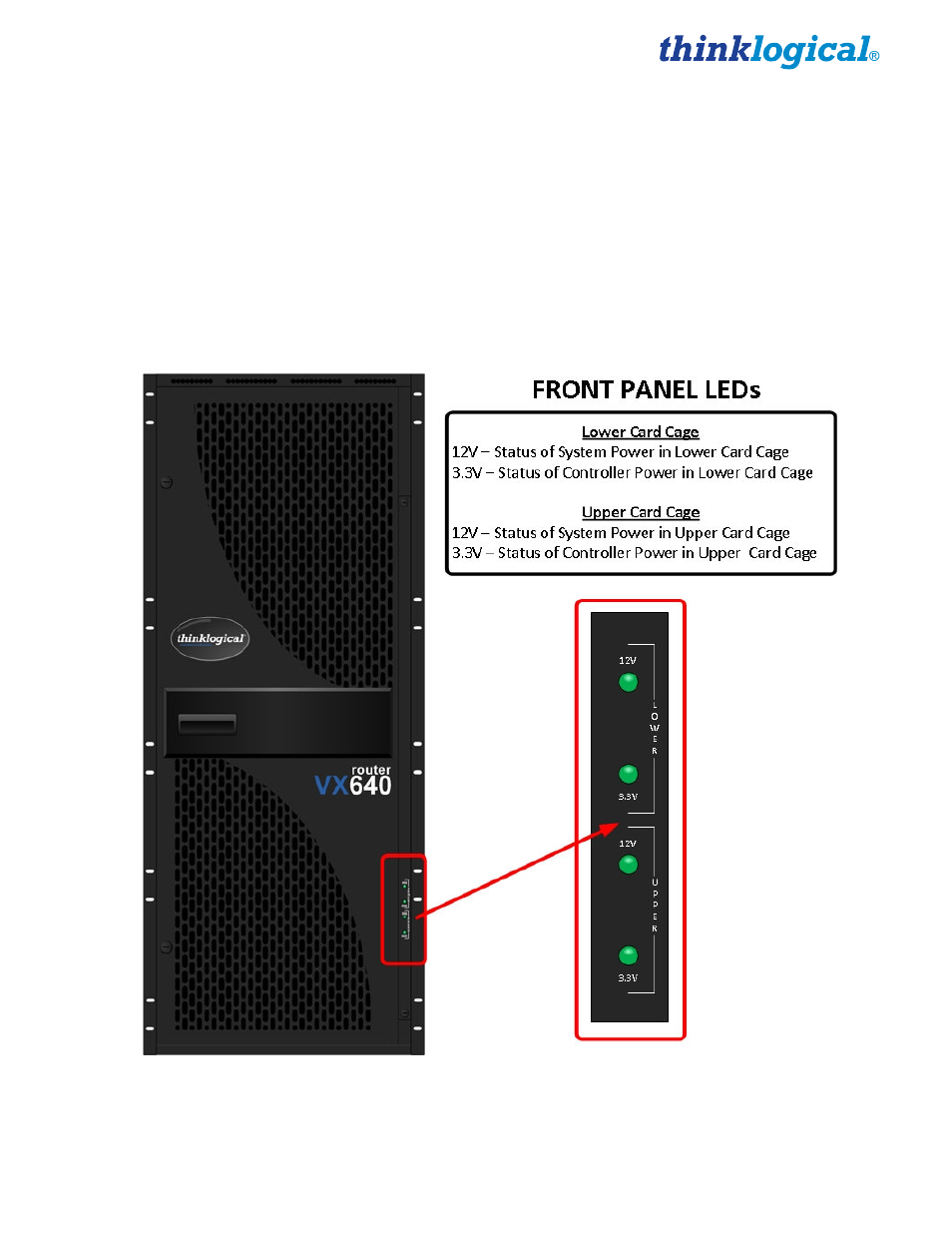

VX640 Front Panel Status LEDs
