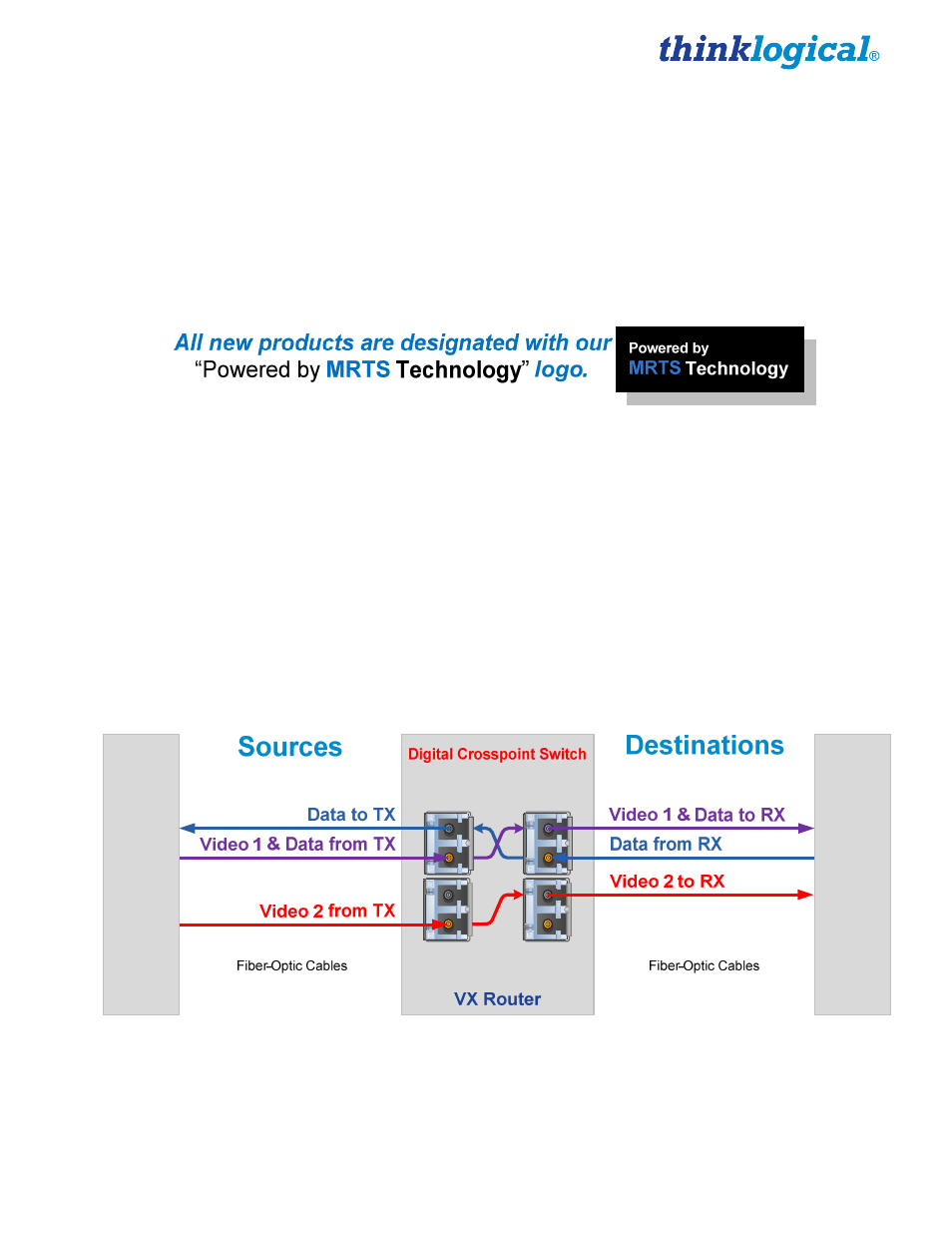

Theory of Operation
MRTS Technology
Thinklogical’s
®
VX640 KVM Matrix Switch, used together with our Velocity Extenders,
incorporates our breakthrough patent-pending technology for transmission and reception of DVI,
HID, and high-speed data peripherals across long or short distances.
This technology, known as Multi Rate Transmission System (MRTS), provides end-to-end data trans-
mission with unparalleled performance. This unique optic platform enables multiple data streams to be
transmitted long distances over single or multiple fibers with complete reconstruction of the data clock at
the destination end point.
The result is perfect synchronization with each transmitted stream.
MRTS is a highly reliable technology and delivers powerful benefits to our customers when combined
with our new SFP+ optics. The new MRTS Technology has the ability to transport every frame of a 1920
x 1200 @ 60Hz (or higher) video stream with no compression, along with all desktop peripherals
(keyboard, mouse, etc., including 480Mbps USB 2.0) with no perceptible latency. Moreover, these
signals can be transmitted distances from just a few meters up to 40 kilometers over single-mode or
multi-mode fibers.
MRTS allows for traditional AV implementations and video routing to be incorporated into the same
switch fabric, providing greater value, flexibility, performance and security. Additional unique capabilities
include the ability to support 6.25Gbps bandwidth per stream, between 50% and 100% higher than our
nearest competitors (typically 1.485Gbps to 3.2Gbps). This is significant because a single DVI stream
requires a 5.4Gbps data rate to accommodate the 165MHz of video data. Our competitor’s lower
bandwidth capability is generally manifested in either dropped frames or lower resolution associated with
compressing schemes. Not so with MRTS Technology.
V
e
lo
c
it
y
T
ra
n
s
m
itt
e
r
V
e
lo
c
it
y
R
e
c
e
iv
e
r
MRTS Technology
