Model 204B BEVELMASTER™
92-0699 : Rev. 060412
MANDREL ASSEMBLY (P/N 06-0419)
Item Part
No. No. Description Qty
1. 08-XXXX BLOCK, JAW (Ref. the ‘Jaw Blocks’ section.) REF
2. 13-0424 MANDREL 1
3. 23-0295 ROD, DRAW 1
4. 24-1384 PLATE, BUTT 1
5. 33-0490 SCREW, SET, #10-24 X 3/8", CUP PT 1
6. 35-0523 NUT, DRAW ROD, 3/8-16 1
7. 40-0001 SPRING, EXTENSION 5
8. 48-0964 BLOCK, RAMP, #1 3
48-0965 BLOCK, RAMP, #2 3
48-0966 BLOCK, RAMP, #3 3

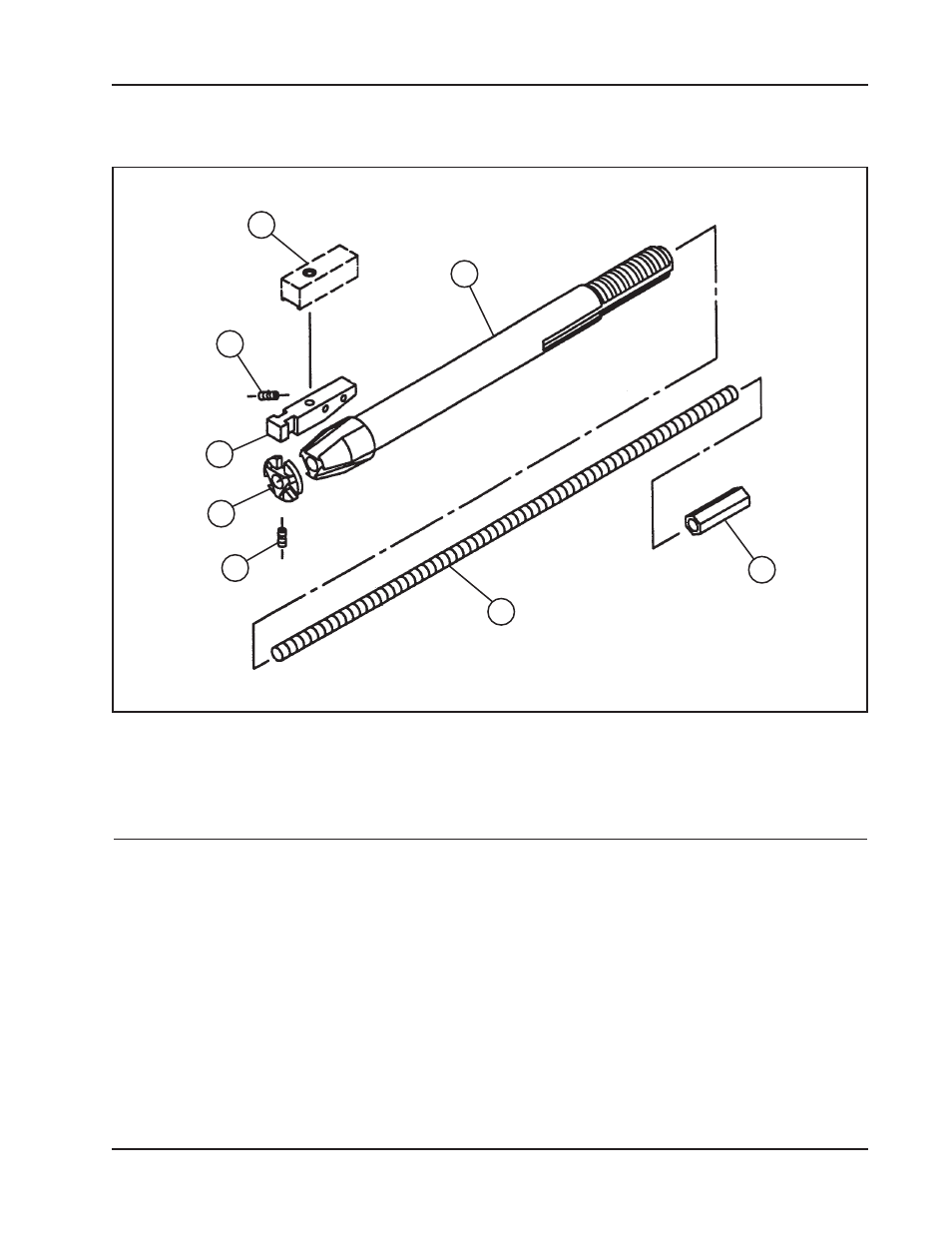

Parts List, Mandrel Assembly (P/N 06-0419)
1
2
3
4
5
7
6
8
