Example of on-screen display while adjusting the Chroma control from the front panel
Examples of Using the Front Panel in Conjunction with On-Screen Display
Example 1

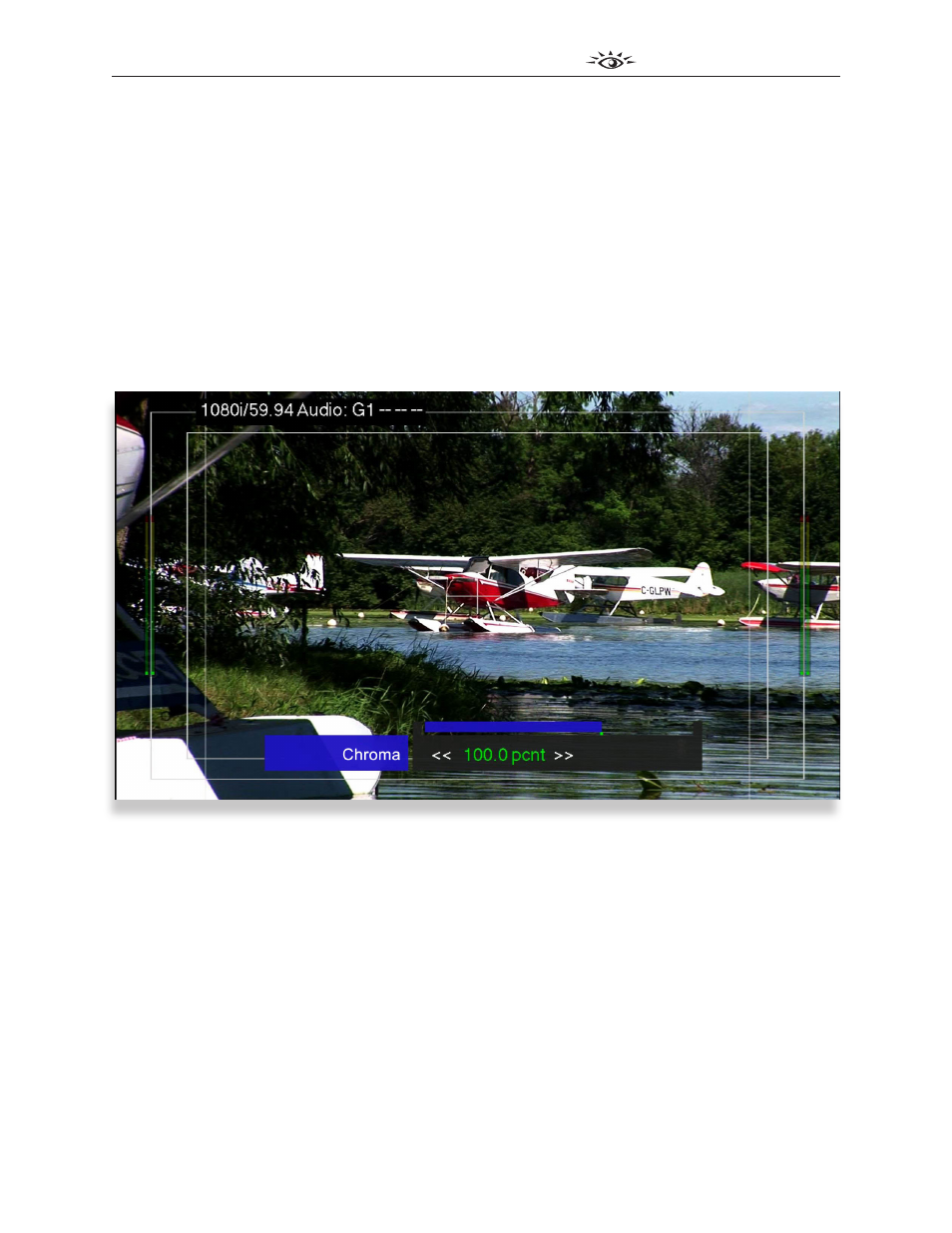

The image below is showing the Chroma control. This example shows what you would see if you
pressed the Mode button on the front panel until the Chroma LED started blinking. The Chroma
control is indicated in the blue box. To the right of that is the specific parameter setting that you can
adjust. Pressing the Left Arrow decreases the value while pressing the Right Arrow increases the
value.
Notice also that the input status is displaying in the upper left area of the monitor image, indicating
input format, frequency, and the presence of embedded audio. This example also includes graticule
lines and audio meters.
