Horizontal and Vertical Shift
The BrightEye 72/72-F can shift images horizontally and/or vertically to enable inspection of content
in the horizontal and vertical intervals outside of the picture itself, such as embedded audio, closed
caption data blocks, and blanking edges of the signal.

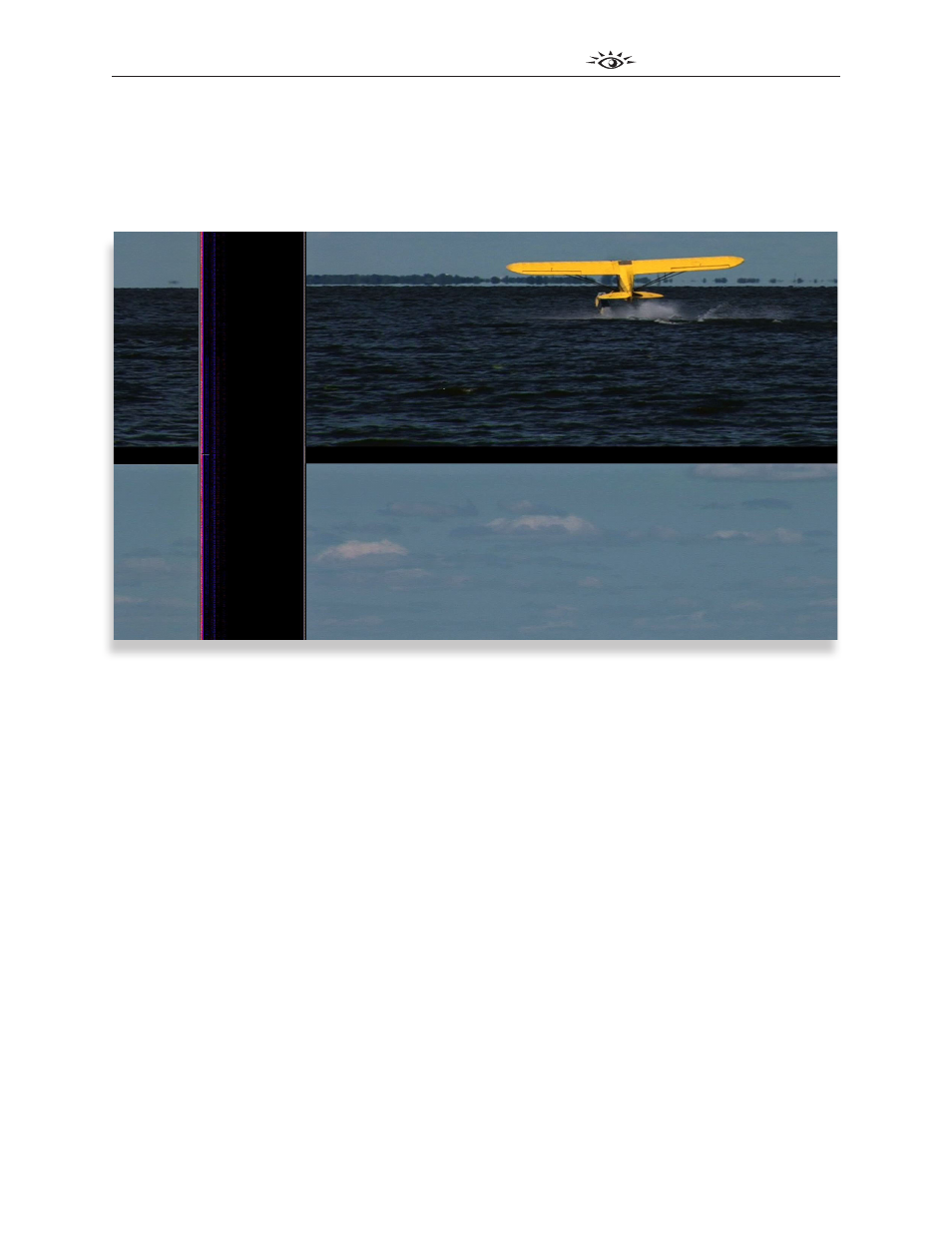

HDMI monitor output example illustrating Horizontal shift. H and V shift enables inspection of content in
the horizontal and vertical intervals.
