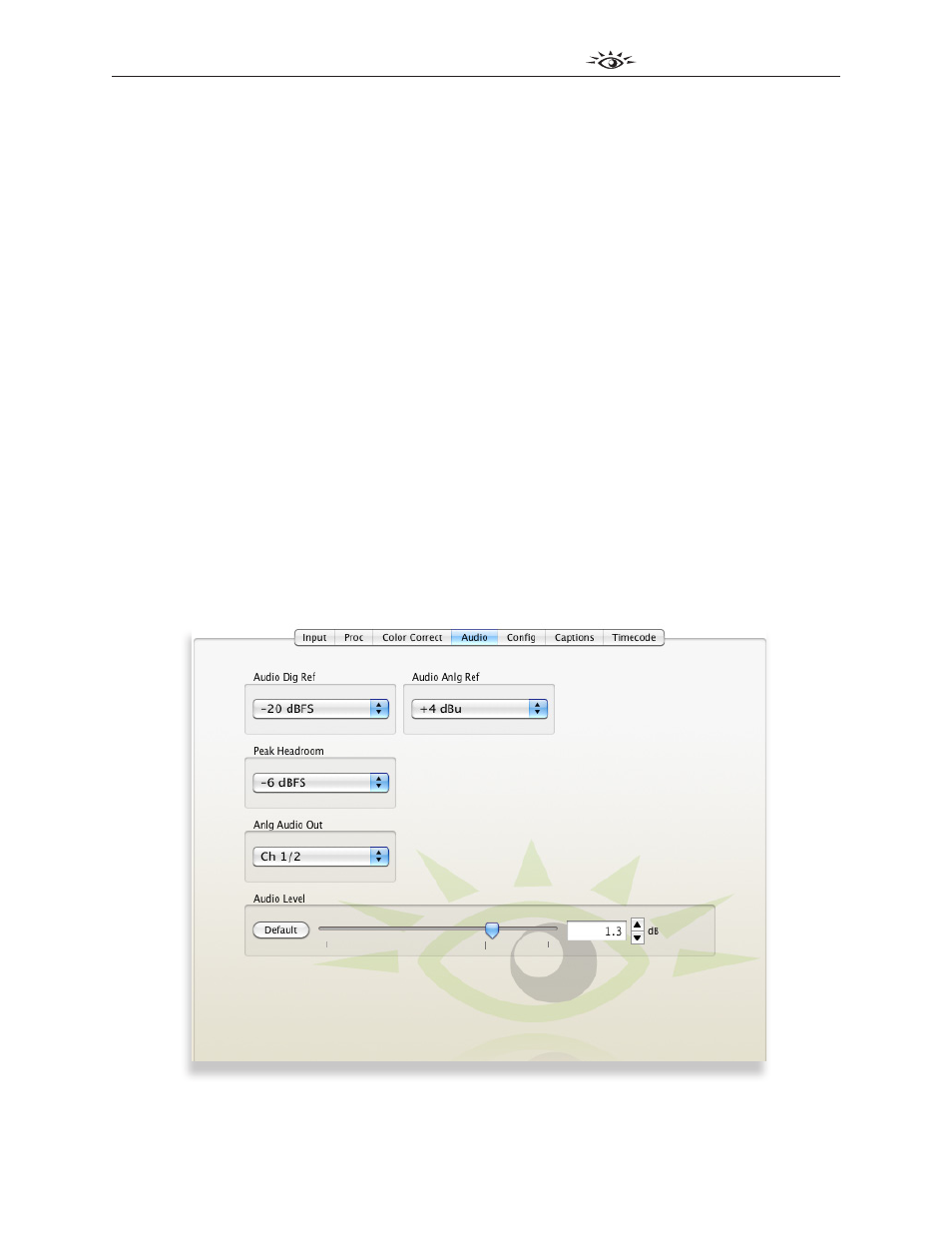

Audio Menu
Use the Audio Menu to select audio levels and audio channels. Use the Audio Digital Reference
control and the Audio Analog Reference control to set the audio reference level used in your facility.
Use the Peak Headroom control to adjust when the peak indicator turns from yellow to red. Use the
Analog Audio Out control to choose a pair of audio channels for output through the rear Audio Out
connector.
• Audio Dig Ref – Audio Digital Reference Level. Choose either -20 dBFS or -18 dBFS, relative to
full scale.
• Audio Anlg Ref – Analog Reference Level. Choose either -10 dBu or +4 dBu. Use this control to
select the nominal reference level for the analog inputs. Select the appropriate reference level
for your facility.
• Peak Headroom – Use this control to determine how close to the maximum level the audio
signal can reach before turning from yellow to red. Available choices are: -2 dBFS, -3 dBFS,
-4 dBFS, -5 dBFS, -6 dBFS, -7 dBFS, -8 dBFS, -9 dBFS, -10 dBFS.
• Anlg Audio Out – Select the channels you want to use for analog audio output. Available
choices are: Channels 1/2, 3/4, 5/6, 7/8.
• Audio Level – Adjust the Audio Level from -30dB to 12dB by clicking and dragging on the
slider control, by using the up and down arrow buttons, or by entering a value directly into the
field. Click the default button to return the Audio Level to the default setting of zero dB.
