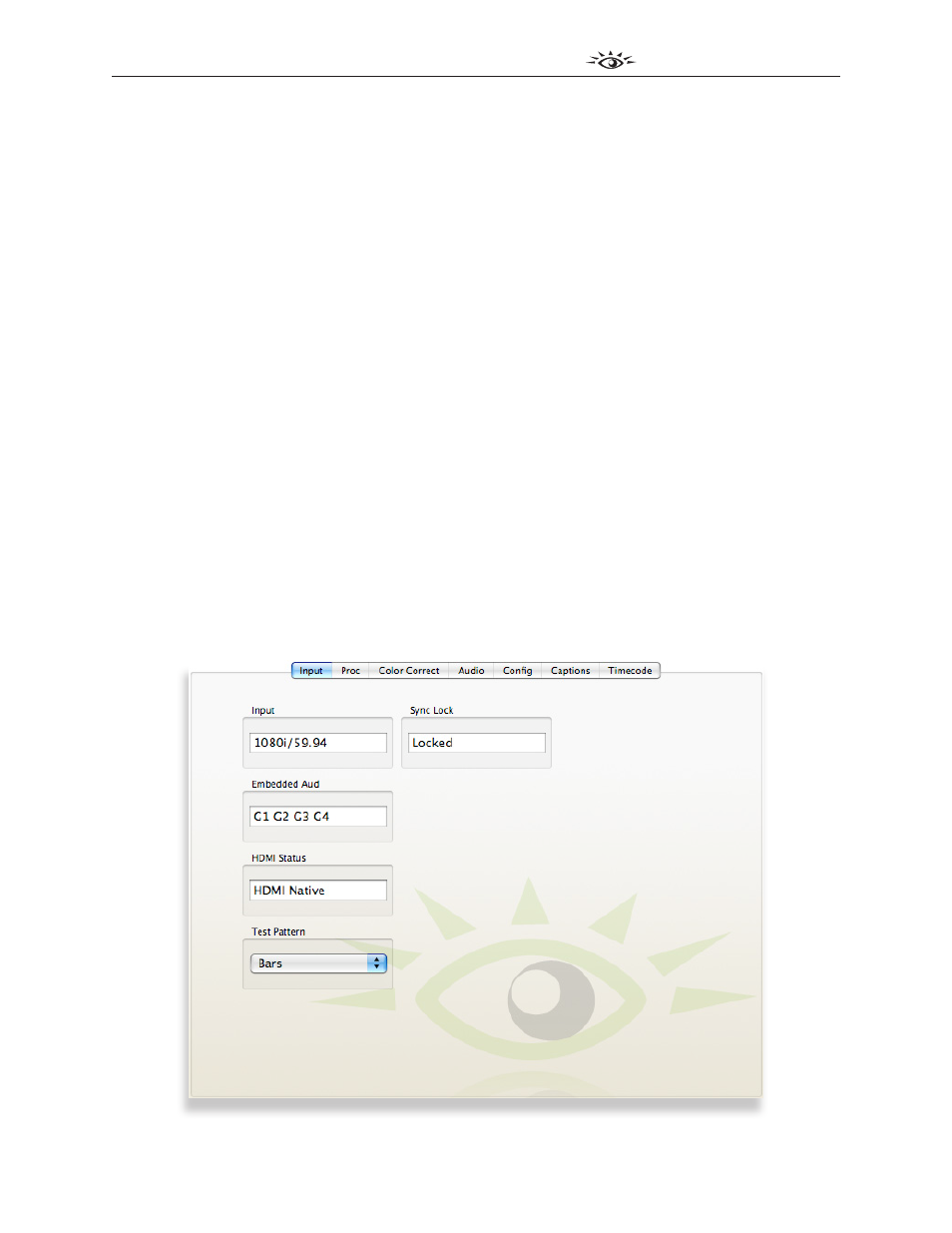

Input Menu
The Input menu indicates whether an input is detected and whether there is sync lock. It also shows
which groups of audio channels are being used, whether there is an HDMI monitor detected and the
Test Pattern selected.
• Input – shows whether or not there is an input signal detected. Types of input signals that the
BrightEye 72/72-F will accept are:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz
1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A
525i, 625i (SMPTE 259M)
• Sync Lock – indicates whether or not the BrightEye 72/72-F is sync locked to a reference
signal.
• Embedded Aud – shows which groups of audio channels, if any, are embedded in the
input.
• HDMI Status – indicates whether or not there is an HDMI monitor present. When an HDMI
monitor is connected, this field will show “HDMI Native.” When there is no HDMI monitor
connected, this field will show “No Display.”
• Test Pattern – reflects the selected Test Pattern. Choices include: Off, Bars, Black, Flat 20,
Flat 80, Window 20/80, 10 Step, Bars Blue Only, and Dig Blanking.
