www.ensembledesigns.com BrightEye 72 and 72-F - Page 18
3G/HD/SD SDI to HDMI Converter User Guide TM BrightEye 72 and 72-F

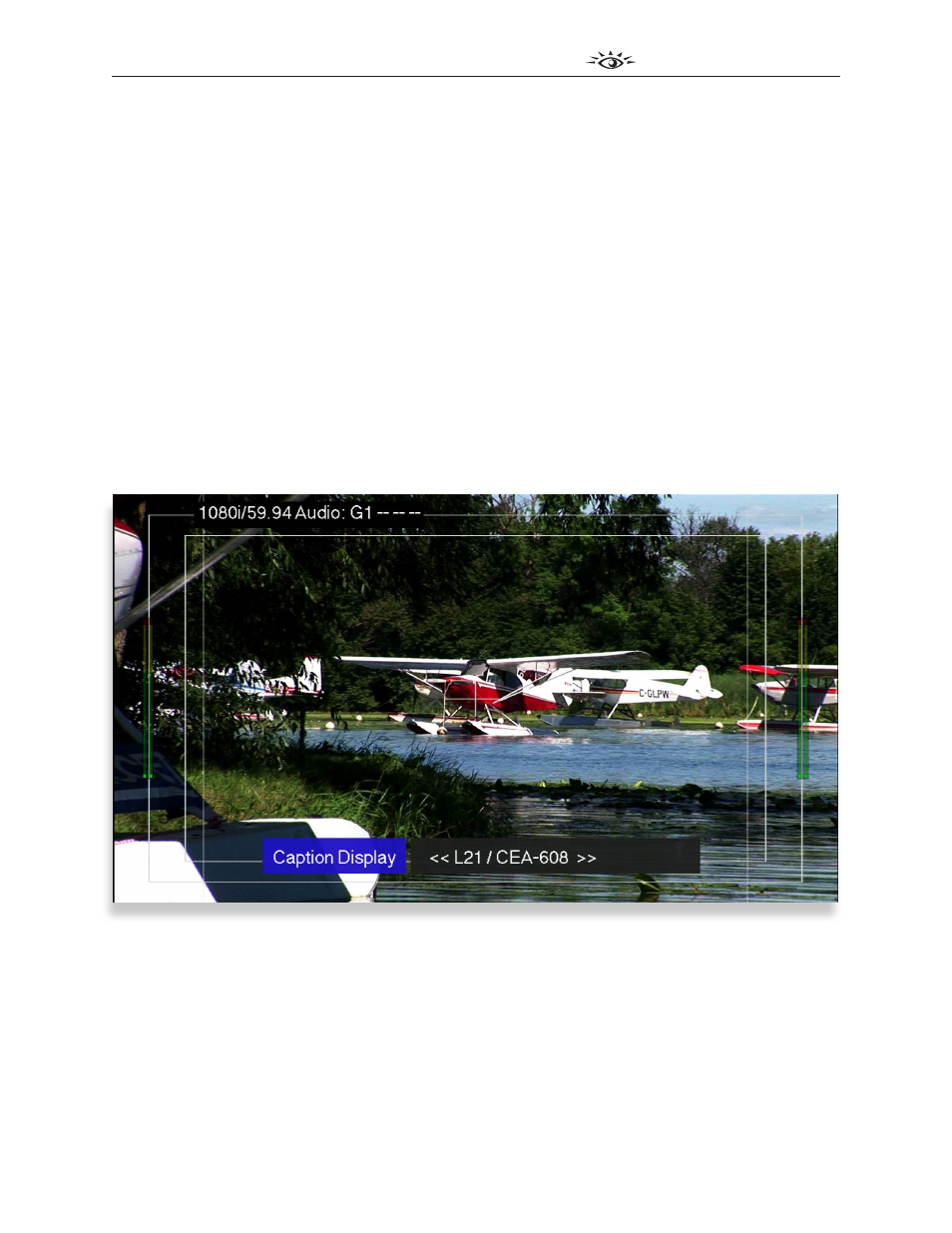

Example of on-screen display while adjusting the Caption Display control from the front panel
Example 2
The image below is showing the Caption Display control. This example shows what you would see if
you pressed the Mode button on the front panel until the CC LED started blinking.
Note: If the control Include in OSD in the Color Correct menu has been turned on,
you will need to press the Mode button an additional six times to move from the
Hue control to the Caption Display control. These additional six presses will step
through the six Color Correction adjustments in the on-screen display, although no
LEDs will blink on the front panel for these six controls.
Just like in the previous example, the editable parameter section is indicated in the blue box. To the
right of that is the specific value that you can adjust. Pressing the Left Arrow decreases the value
while pressing the Right Arrow increases the value.
Again, this example is displaying the input status in the upper left area of the monitor, indicating input
format, frequency, and the presence of embedded audio. This example also includes graticule lines
and audio meters.
