Getting Started
Description of Parts

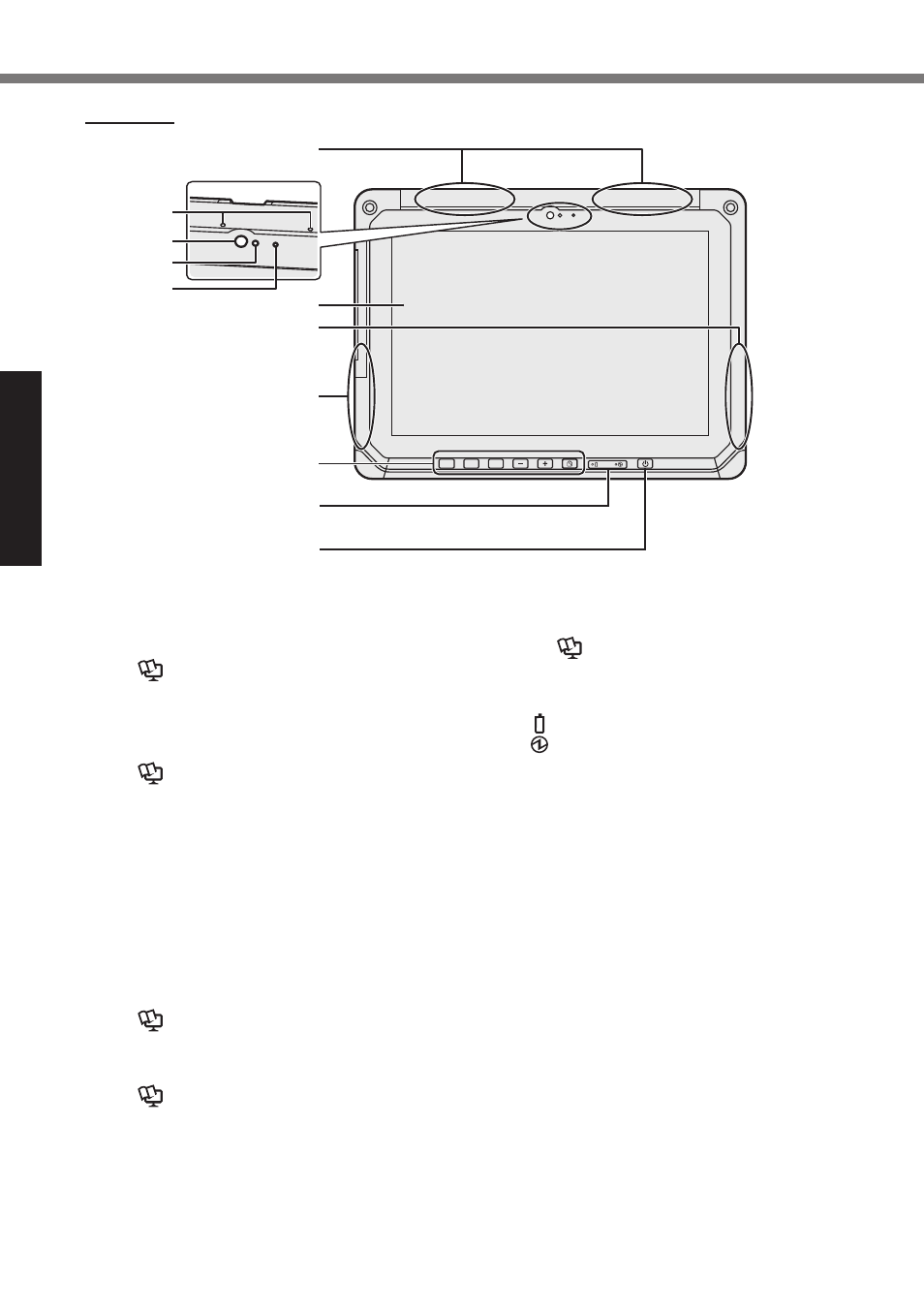

Front side
A1
A2
A3
G
A
H
F
I
C
B
D
E
J
K
A: Wireless WAN Antenna
<Only for model with wireless WAN>
è
Operating Instructions - Reference
Manual “Wireless WAN”, “GPS”
B: Microphone
C: Front Camera / Lens
è
Operating Instructions - Reference
Manual “Camera”
D: Ambient Sensor
The ambient light sensor is equipped
with an automatic brightness adjustment
function that adjusts the display screen.
(è page 15)
E: Camera Indicator
F: LCD
G: Wi-Fi / Bluetooth Antenna
è
Operating Instructions - Reference
Manual “Wi-Fi”, “Bluetooth”
H: Wi-Fi Antenna
è
Operating Instructions - Reference
Manual “Wi-Fi”
I: Tablet Buttons
è
Operating Instructions - Reference
Manual “Tablet Buttons”
J: LED Indicators
: Battery status
: Power Indicator
Off: Power off, Green: Power on,
Blinking green: Sleep (Depending on
the running state of software, the indi-
cator may be green (not blinking)).
K: Power Switch
