February 5, 2008 UIM Instruction Manual 95
Connect UIM-SAN-FCIP network cables Dell 2850
Connect UIM-SAN-FCIP network cables
Dell 2850

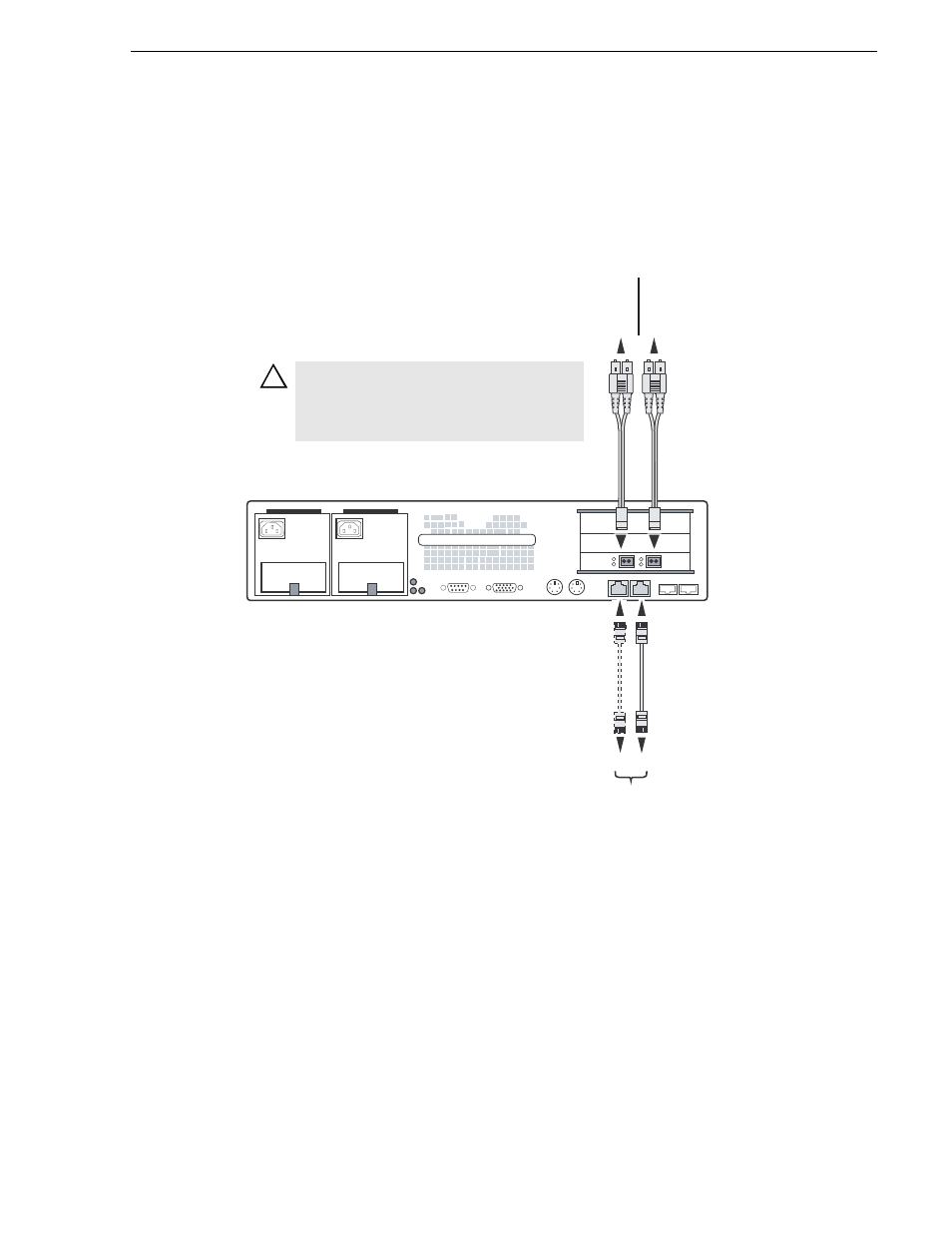

Connect the network cables as shown. Be sure to consult your Ethernet and Fibre
Channel switch fabric designs as you make connections. Refer to
“Onsite planning”
on page 82 .
UIM
A B
Control Team
Intel Ports A & B
(Control LAN)
Fibre Channel IP
Streaming Port
To Fibre Channel
Switch (IP)
Fibre Channel
SCSI Connection
To Fibre Channel
Switch (SCSI)
NOTE:
1. Ensure that the redundant and primary ports are
connected to different switches. If redundant connections
are not used, unused ports are ignored.
2. Verify that the Ethernet switches support Spanning Tree
Protocol (STP), and that the protocol is configured as
described in
“Redundant Ethernet network requirements”
on page 17 .
!
CAUTION: Do not connect IP port on the
UIM-SAN-FCIP to the Fibre Channel SCSI
fabric. The IP driver will cause Open SAN
record and playout to fail. Do not mix IP and
SCSI fabrics on the same Fibre Channel switch.
