Chapter 3 Mechanical Installation
3-4 PDR100 Installation

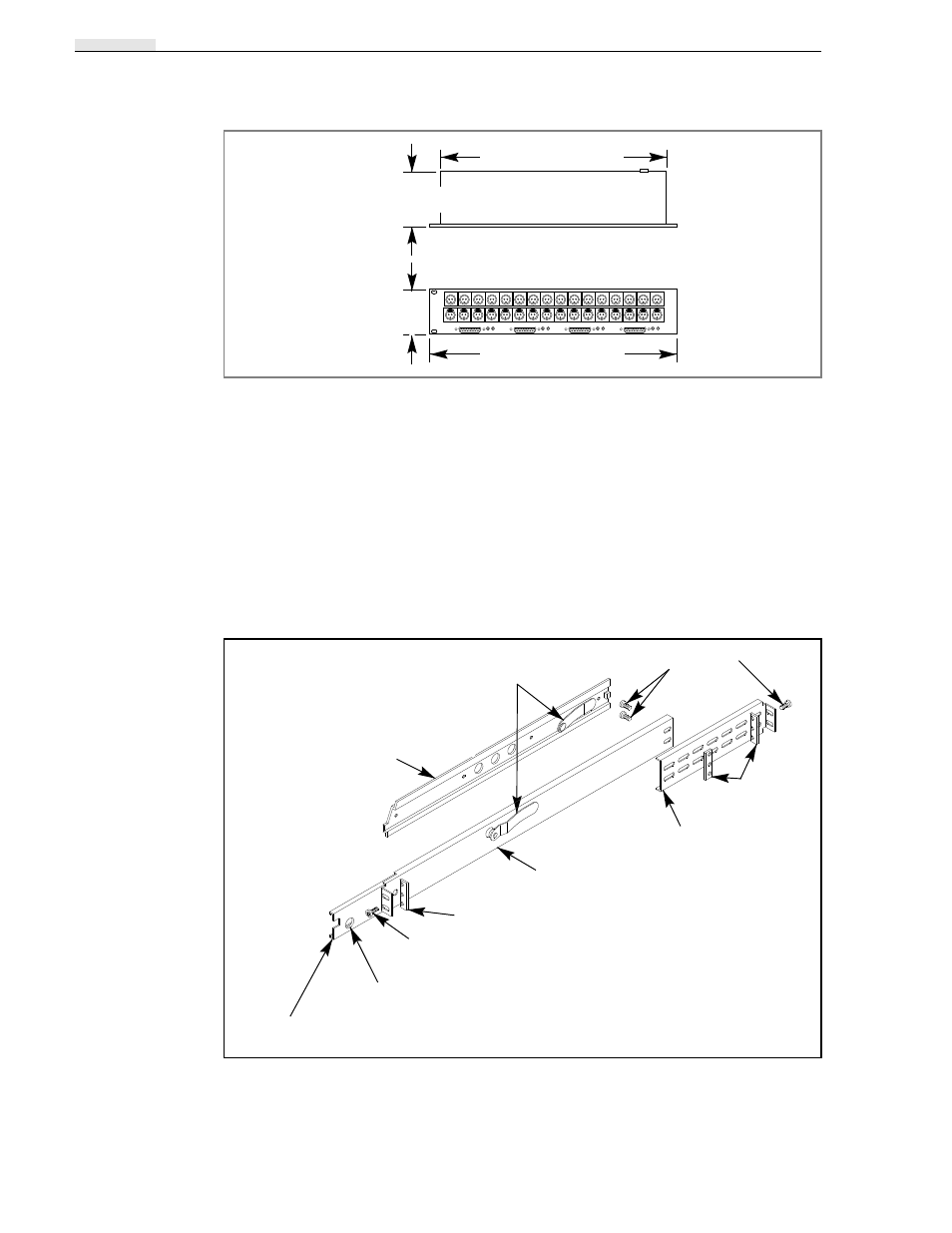

Figure 3-5. Dimensions of the XLR100 Audio Bypass Unit for Rack Mounting
Mounting the PDR and PDX Units
The rack slides mount in any rack that has a front-to-rear rail spacing between 15.50
and 28 inches (39.4 and 71.1 cm). Six inches (15.25 cm) of clearance between the
PDR100 rear panel and any rear cabinet panel is required for connectors and cable
bends. In addition, adequate air flow must be assured around the cabinet to provide
sufficient cooling. (Operating ambient temperature will effect the amount of air
circulation required to keep the PDR100 within its temperature limitations.)
The rack slide set for each side of the cabinet consists of three major sections and
mounting hardware. Figure 3-6 shows the rack slide for the right side of the cabinet.
Figure 3-6. Complete Rack Slide Set for Right Side of Cabinet and Rack
19.000 in (48.3 cm)
17.250 in (43.8 cm)
3.500 in
(8.9 cm)
6.000 in
(15.25 cm)
Chassis Section
Automatic
Latches
Stationary
Section
10-32 PHS
Screw
10-32 PHS
Screw
Flat
Nut
Bars
Flat Nut Bar
Intermediate
Section
Stop Latch
Hole
Rear
Mounting
NOTE: Right-hand and left-hand stationary section is designated by the
RH and the LH marked on the rails. Stop latch holes should be towards
the bottom when slides are in place. (The right-hand rail is shown above.)
