Power Source
The PDR100, PDX103, and XLR100 are designed to operate from a single-phase
power source having one of its current-carrying conductors at or near earth ground
(the neutral conductor). Only the line conductor is fused for over-current protection.
Systems that have both current carrying conductors live with respect to ground, such
as phase-to-phase in multi-phase systems, are not recommended as power sources.
Mains Frequency and Voltage Ranges
The PDR100, PDX103, and XLR100 operate at line frequencies of 50 or
60 Hz at nominal mains voltages from 100 to 240 Vac. Table 3-1 lists the power cord
options available.

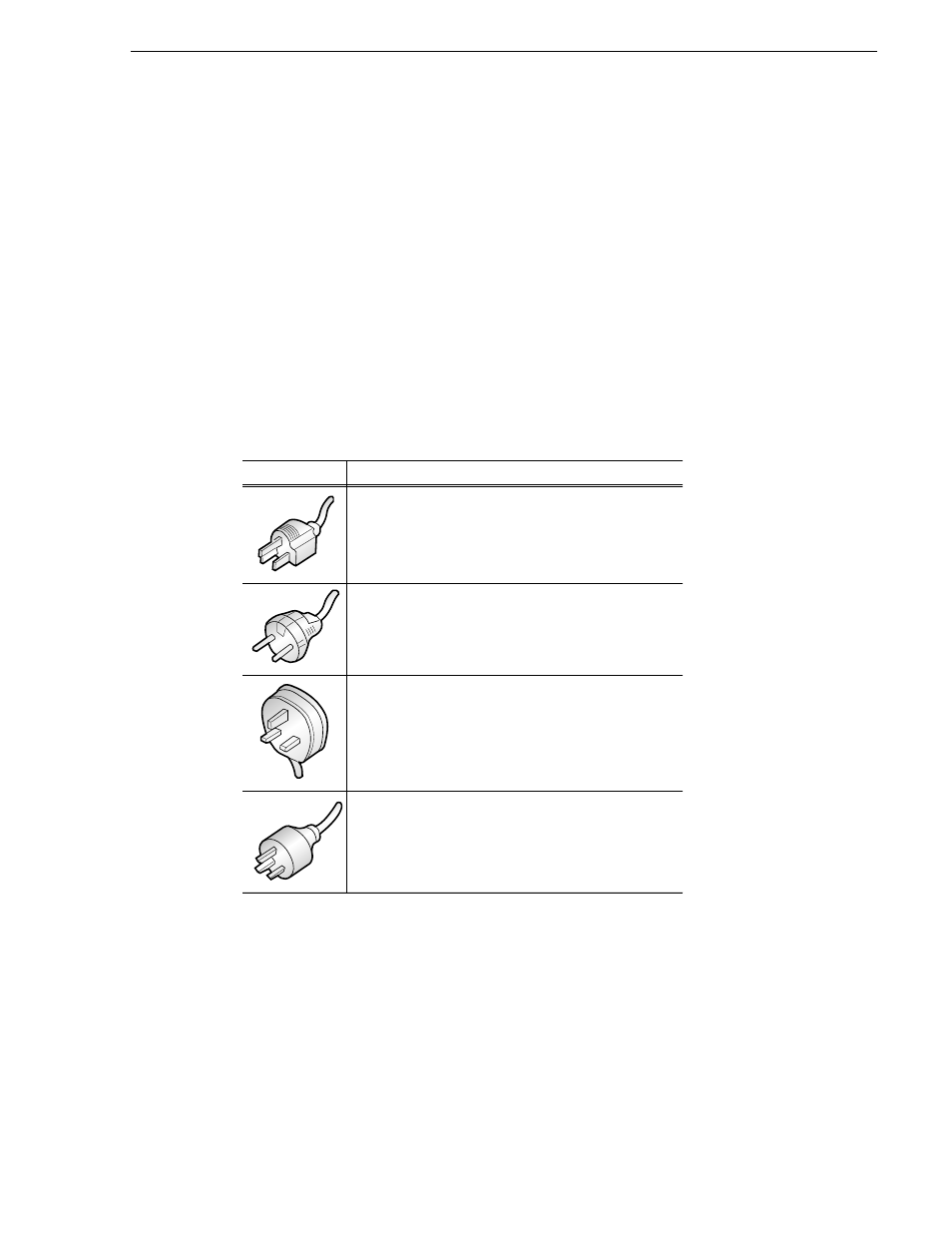

Table 3-1. Power Cord Options for the PDR100, PDX103, and XLR100
Power Plug Description
Standard 120 V, 3-prong power plug on a 2.5 meter long
power cord. For use with common ground systems in
North America.
Option A1 Universal European 220V/16A power plug on
a 2.5 meter long power cord.
Option A2 United Kingdom 240V/15A power plug on a
2.5 meter long power cord.
Option A3 Australian 240V/10A power plug on a 2.5
meter long power cord.
