Analog Composite Input Circuit Board
PDR100 Installation 3-37

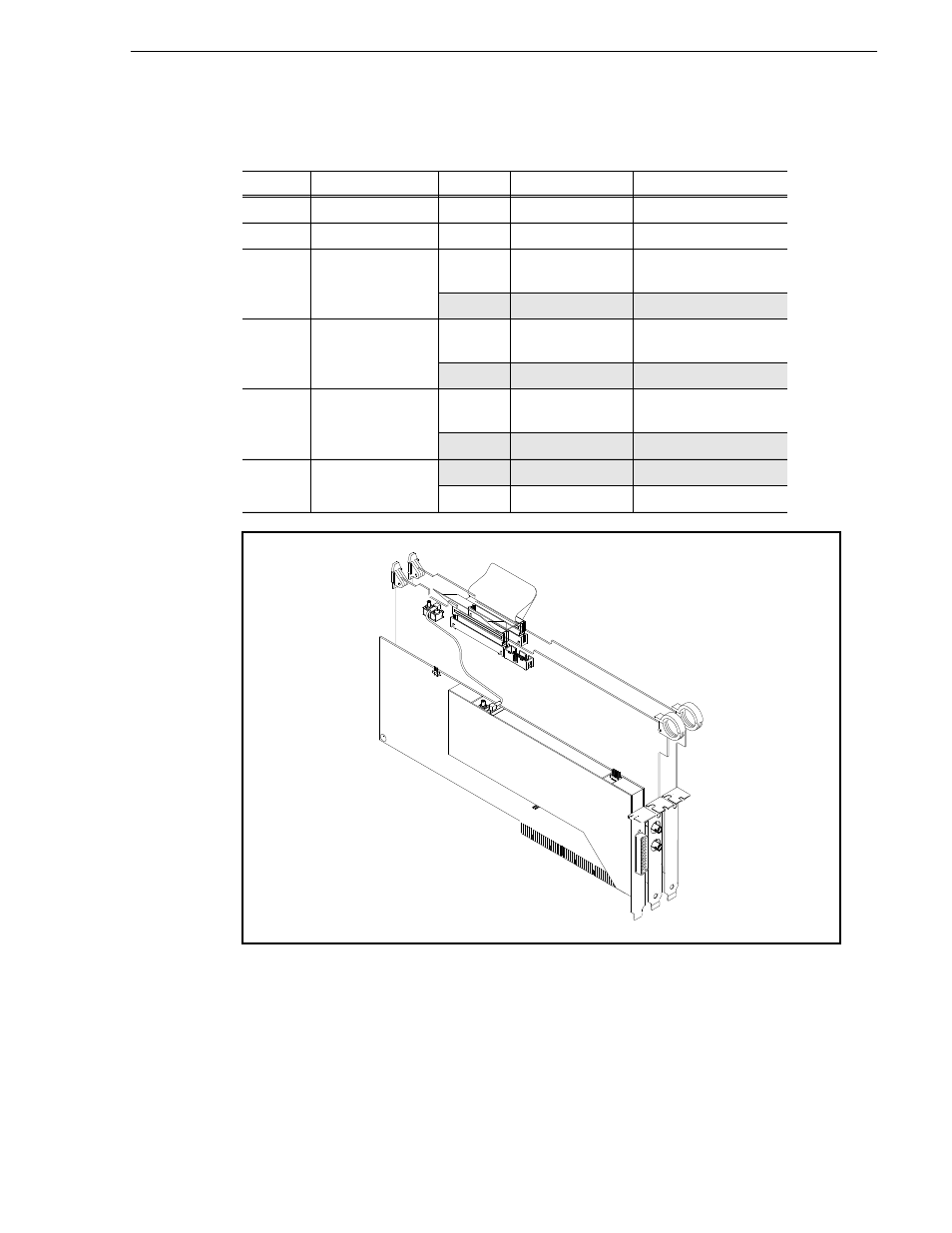

Figure 3-34. Audio Clock Cabling for Analog Composite Input
Table 3-13. Analog Composite Input Plug Jumpers
Jumper Name Position Factory- Installed Operation
J12 Code Development All Open No Jumper Operating Position
J6 Code Development All Open No Jumper Operating Position
J5 Test Jumper
1-2 Developmental Position
2-3 Jumpered Operating
J2 Test Jumper
1-2 Developmental Position
2-3 Jumpered Operating
J3 Test Jumper
1-2 Developmental Position
2-3 Jumpered Operating
J4 Test Jumper 1-2 Jumpered Operating
2-3 Developmental Position
