4.13 P
a
llet Oper
ation with T
ool-Or
ient
e
d Mac
h
ining
Screen layout for executing pallet tables

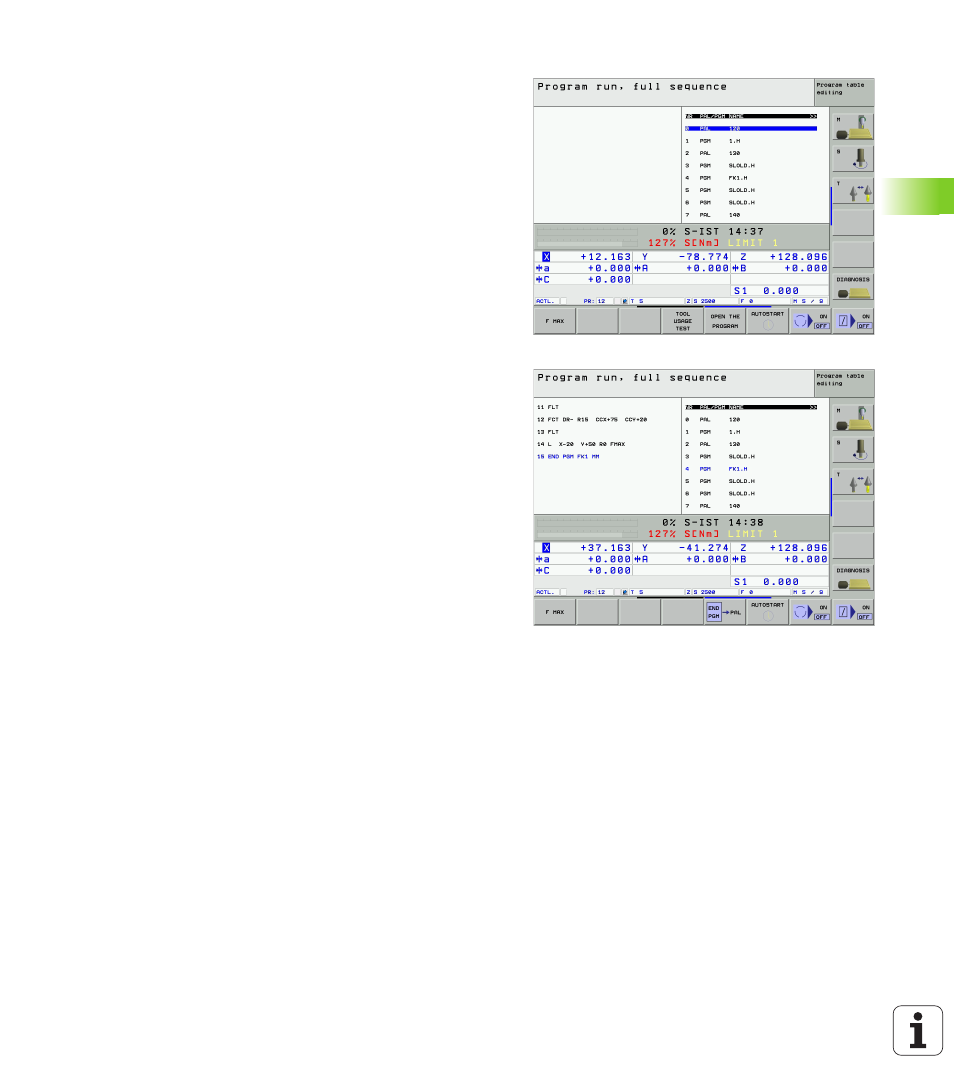

You can have the TNC display the program contents and pallet file
contents on the screen together by selecting the screen layout PGM
+ PALLET. During execution, the TNC then shows program blocks to
the left and the pallet to the right. To check the program contents
before execution, proceed as follows:
8 Select a pallet table.
8 With the arrow keys, choose the program you would like to check.
8 Press the OPEN PGM soft key: The TNC displays the selected
program on the screen. You can now page through the program with
the arrow keys.
8 To return to the pallet table, press the END PGM soft key.
