User’s Guide for DM3000 Series
1-6

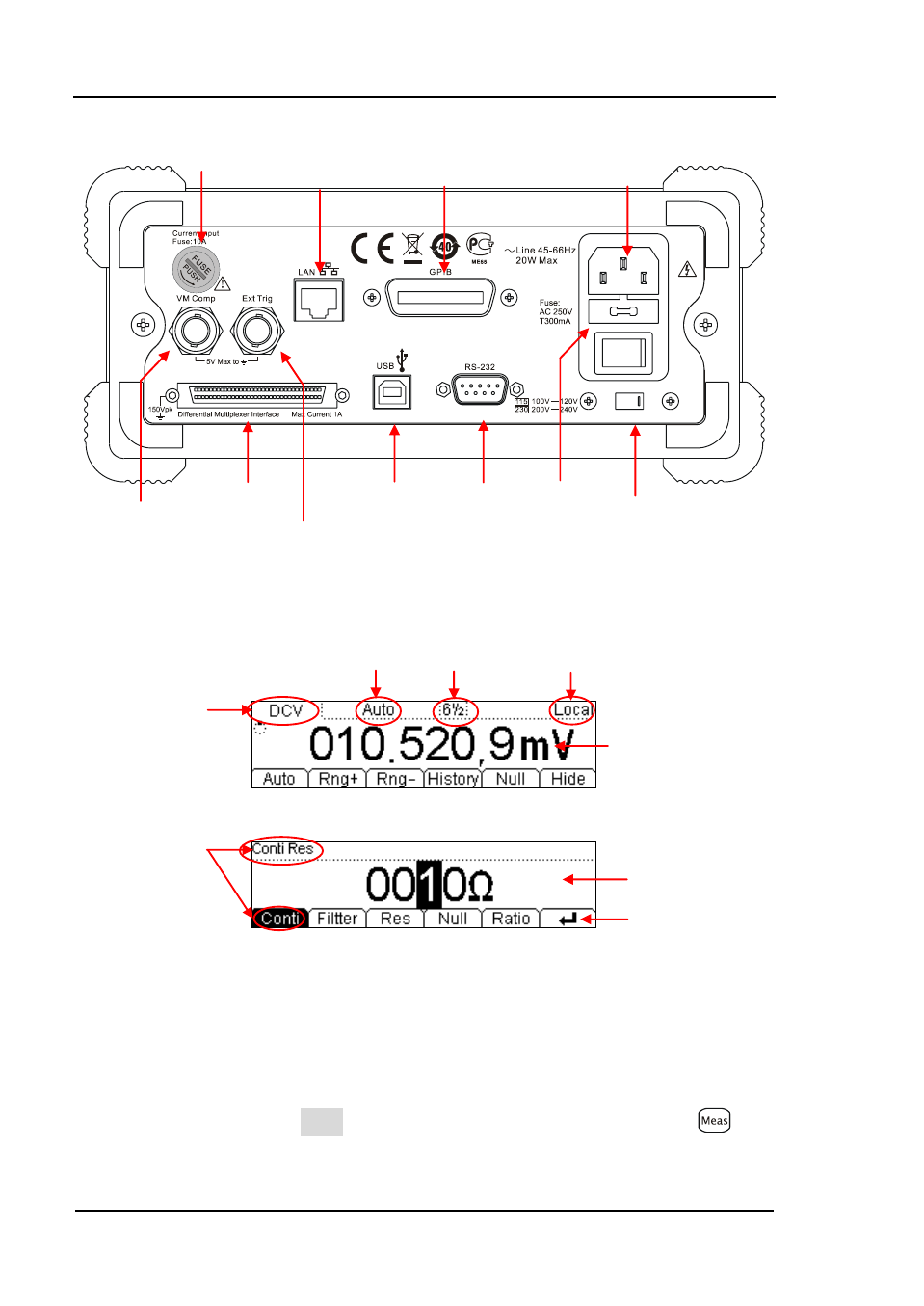

Figure 1- 4 The Rear Panel
Figure 1- 5 Interface Explanation
How the definitions express in this book:
In this manual, the regarding keys writing expression has the same log with the keys
on the front panel. It is noteworthy that the menu operates keys, marking with the
belt shadow. For example, Conti indicates the short circuit option in menu
.
VMC
10/100
Ethernet
GPIB
(IEEE--488)
USB Device
USB Device RS--232 Power Fuse
AC Voltage
Selector
Current Input Fuse
Power Socket
Differential
Multiplexer Interface
Ext Trigger
Range
Measurement
Data Display
Digits
resolving
index
Current
Measurement
Function
Local/Remote
Operation
Parameters
Display
Operation
Menu
Parameters
Name
