Operating the Solar-Log 500 and 1000 via the Display
Select the desired inverter and tap on "
Back
."
•
The values from the selected inverter are displayed.
Tap
on the
Daily Graph
to display the additional measured values.
Select the desired view and tap on "
Back
."
•
The selected setting is displayed.
•
If you selected the
yield curve
, the target value is also displayed.

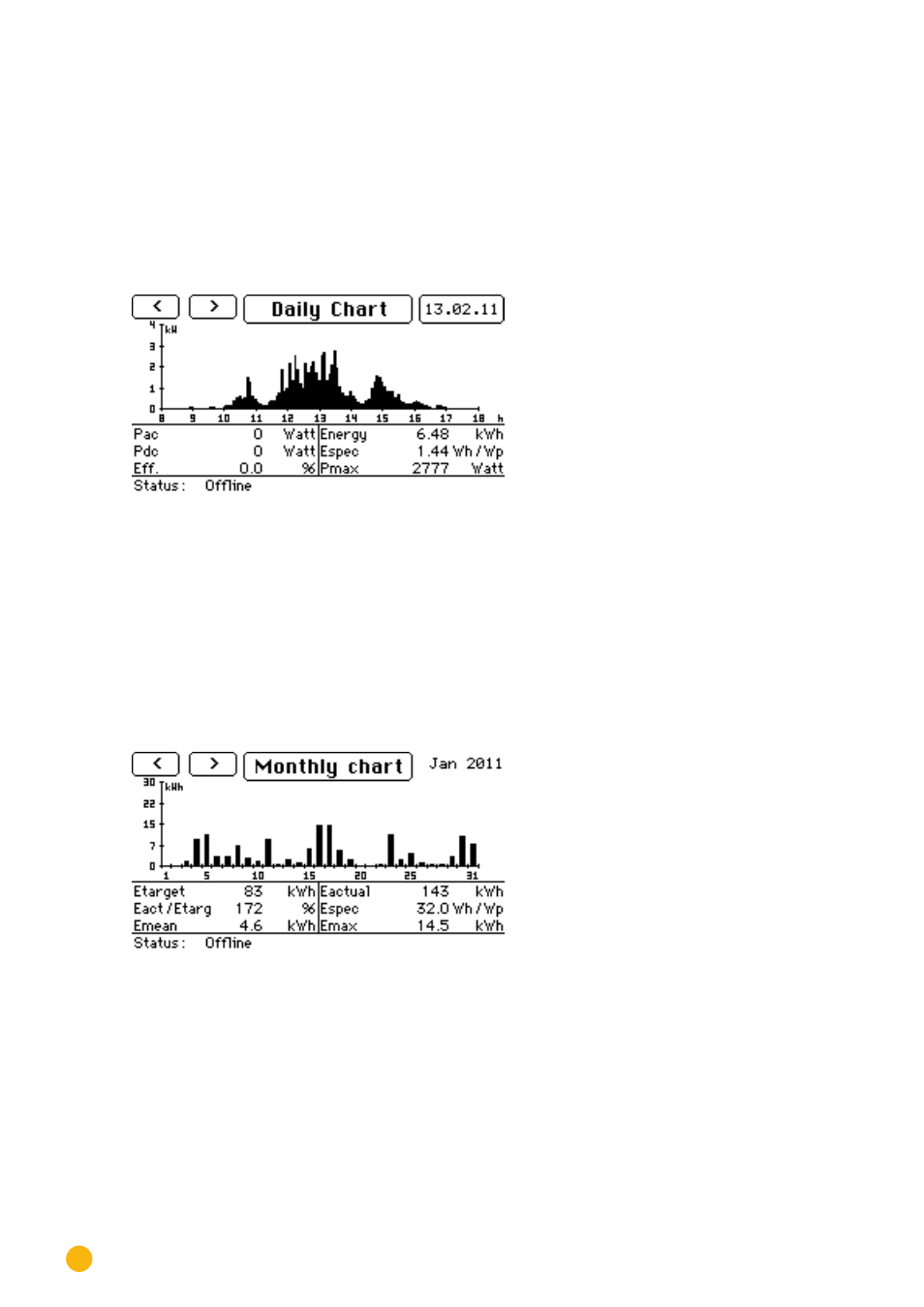

Fig.: Daily Graph
Tap
on the
display
to access the main
Main Navigation
.
5�4�4 Monthly Graph
Tap
your finger on the display.
•
The main navigation screen is displayed.
Tap
on
Graph
and then on the
Month
.
Fig.: Monthly Graph
The monthly graph displays the current values for the selected month.
Tap
on the displayed bar to view the
Daily Graph
for the selected day.
Tap
on the
Monthly Graph
to display the yield values for the connected inverters.
•
The
Total Plant
menu window is displayed.
