Connections (basic styles)
Connecting to the output terminals
• Use the [ MASTER 1 ] terminals for balanced output only. Connecting the terminals to
unbalanced inputs (RCA, etc.) with an XLR-RCA conversion cable (conversion adapter),
etc. results in unwanted noises and/or poor sound quality.
• Use the [ MASTER 2 ] terminals for unbalanced input (RCA, etc.).
• Use the [ BOOTH ] terminals for balanced output only. Connecting the terminals to
unbalanced inputs results in unwanted noises and/or poor sound quality.
• Do not connect a power cord from another product to the [ MASTER 1 ] terminals.
L R L R
Power amplifiers Analog audio
input device
Digital audio
input device
Power amplifier
(booth monitor)

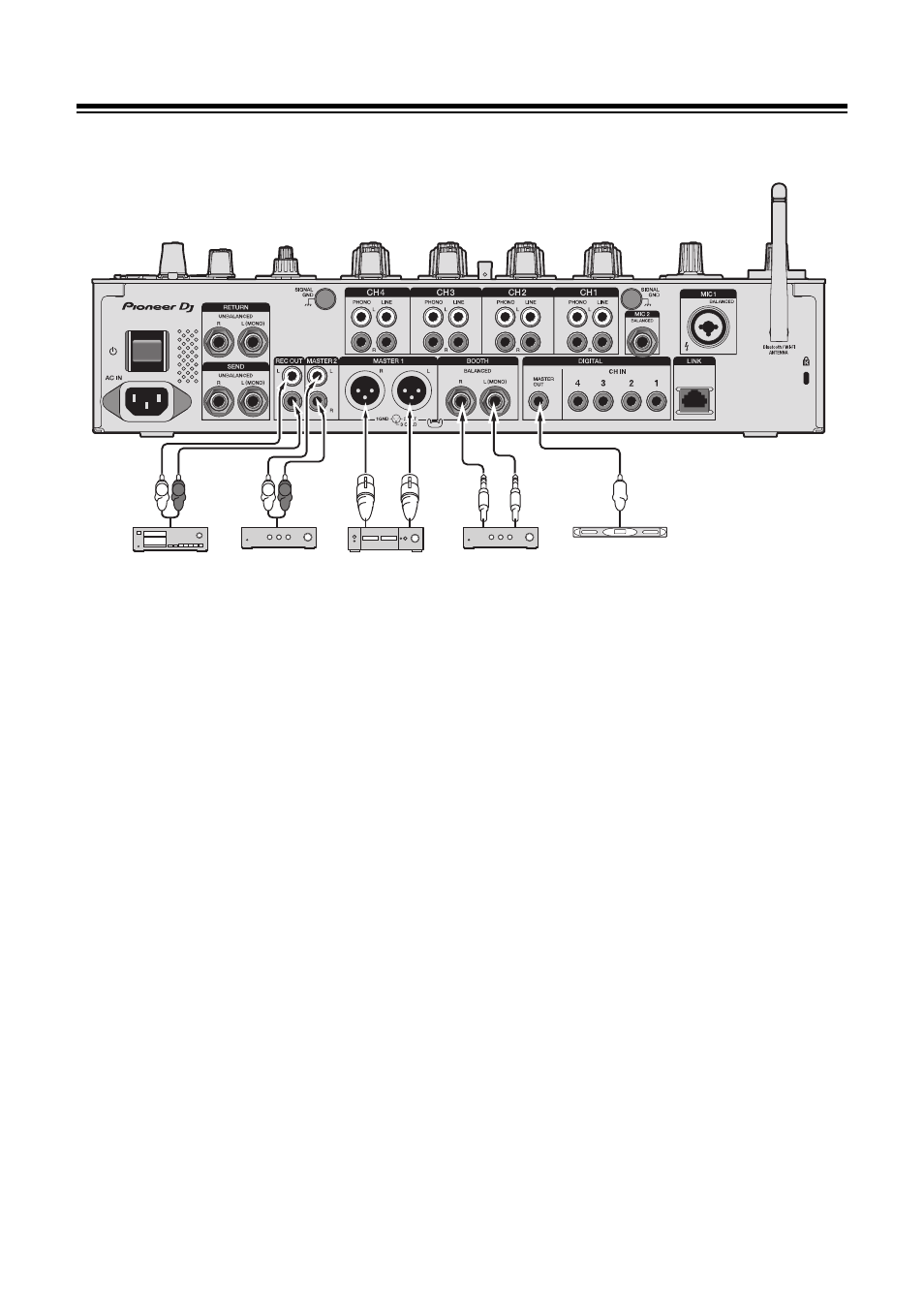

Rear panel of the unit
