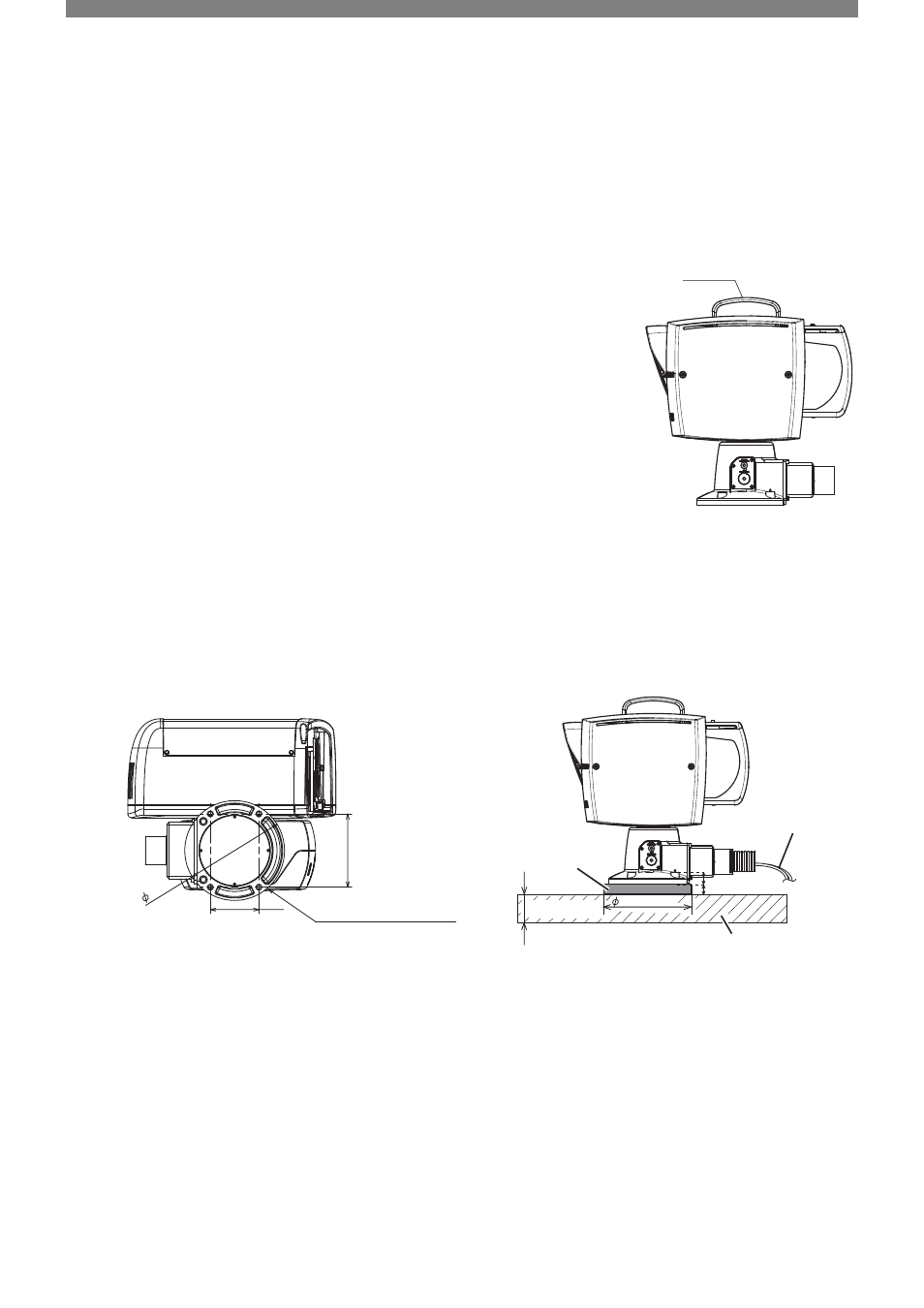

Installation
Handling of the unit
When carrying the unit, hold the unit by its handle. Be careful not to rotate the housing and
head forcibly.
Fixing of the unit
The dimensions for drilling the holes in the floor are shown below.
If necessary, prepare φ 185 to 200 steel spacers to prevent interference between the floor and the cables. Use steel bolts with a
length that enables a screw-in depth of 12 mm or more into the floor, and fix the unit securely to a strong floor surface. Use a level to
check that the floor and the head unit are horizontal.
Attaching the washer and microphone (optional)
To also install a washer or microphone, please obtain the mounting jigs (not included).
For more information about optional products, please contact your Canon dealer or your Canon sales representative.
Handle
90
136
185 t2
25
185 ~ 200 4 φ 8.6
mounting bolts M8 x 1.25 L=35
Cable
Floor surface
Spacer (steel)
(If necessary)
t1=12mm or more
