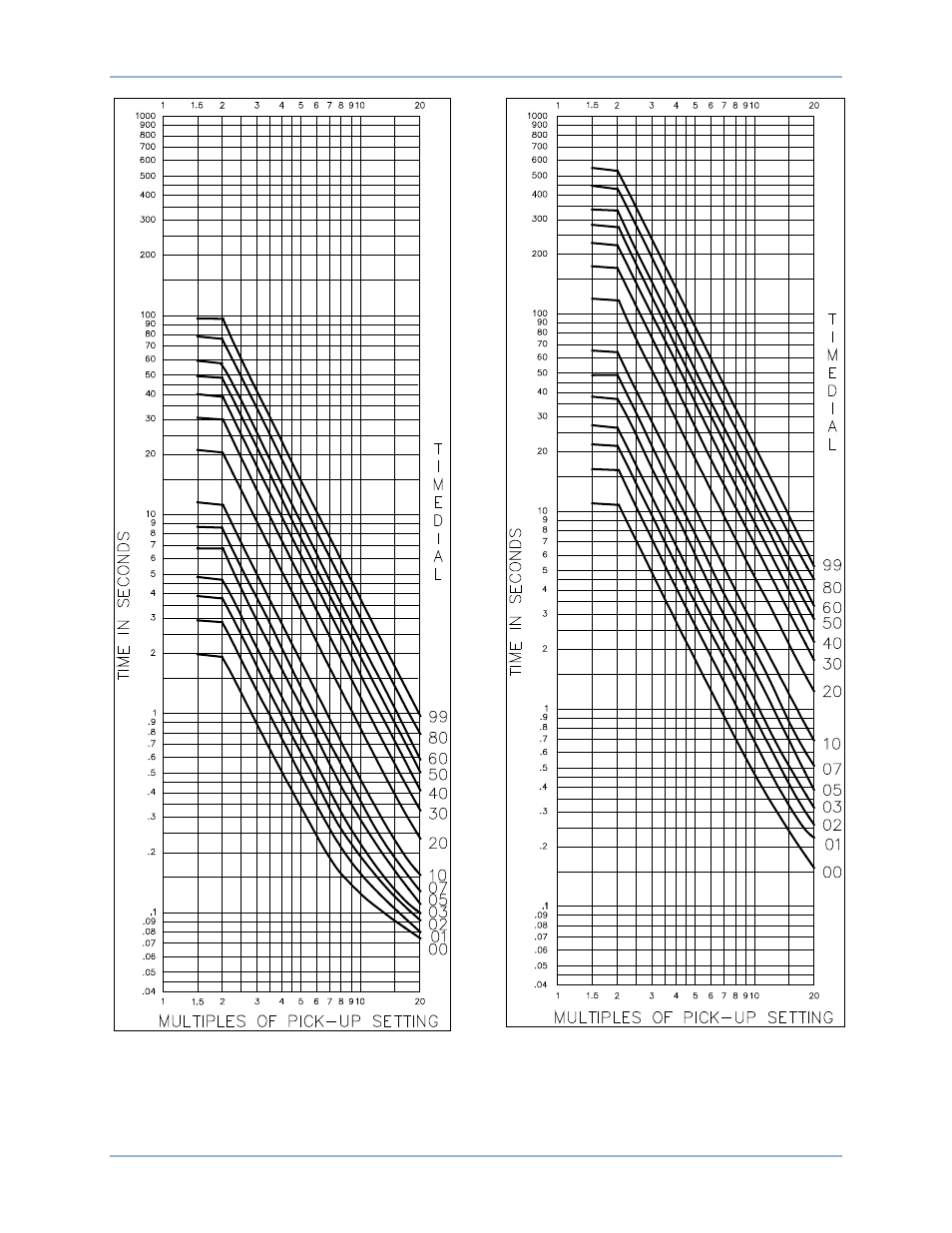

Figure 49. Timing Type C3, I 2 t with Limit #3
Figure 50. Timing Type C3, I 2 t with Limit #3 and
Extended Timing Range
P
0
0
4
9
-2
2
P
0
0
4
9
-2
3
BE1-51 Time Overcurrent Characteristic Curves
